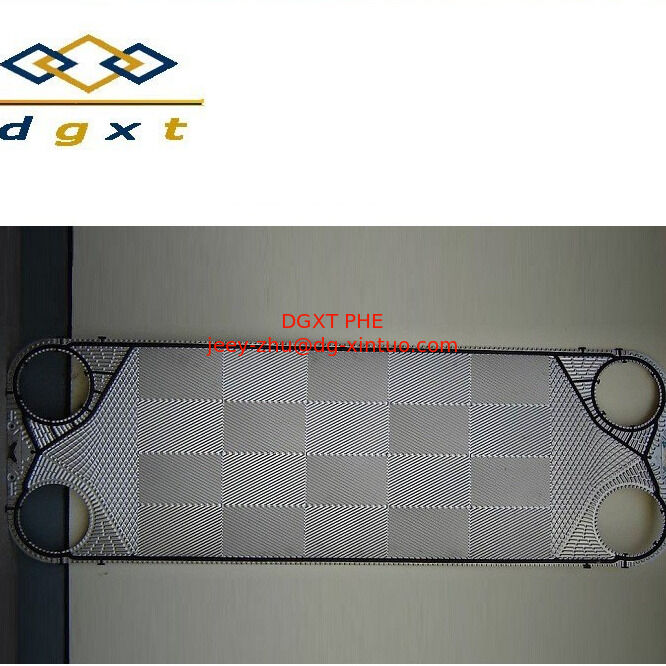

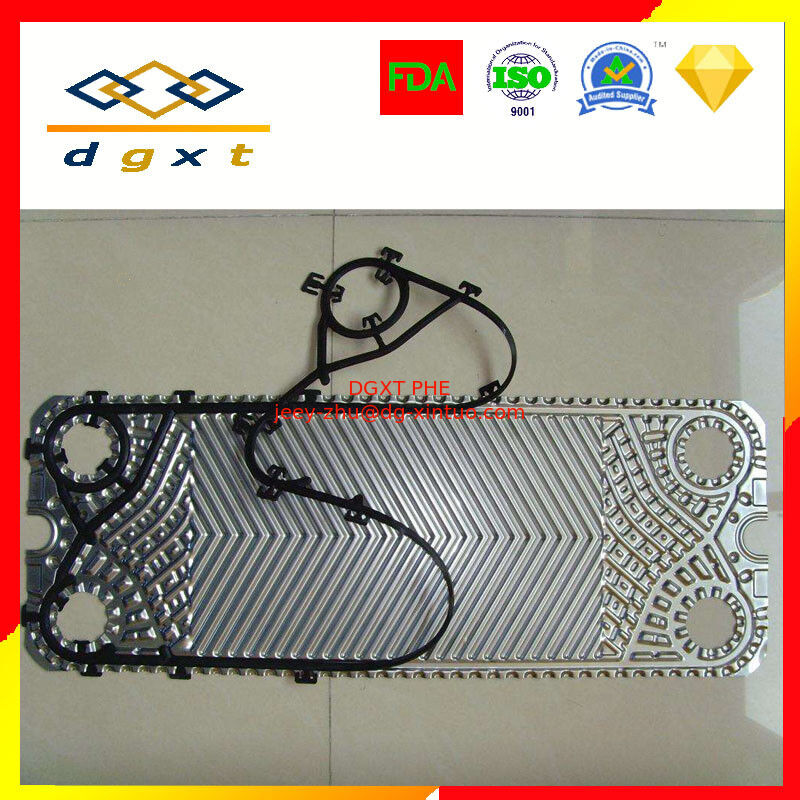

Stainless Steel Heat Exchanger Plate For Plate Heat Exchanger

Basic Information
Place of Origin: China
Brand Name: DGXT
Certification: CE ISO9001 CO FE
Model Number: Customized
Minimum Order Quantity: 1
Price: 20-49 Pieces / US $7.5 | 50-199 Pieces / US $6.9 | 200+ Pieces / US $6.6
Packaging Details: wooden case
Delivery Time: 8-10 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 per month
Origin: China HS Code: 841950
Port: Shanghai, China Customized: Customized
Certification: CE, ISO, UL Sectional Shape: Rectangle
Performance: Pressure Resistant, Temperature Resistant, Corrosion Resistant Material: Stainless Steel

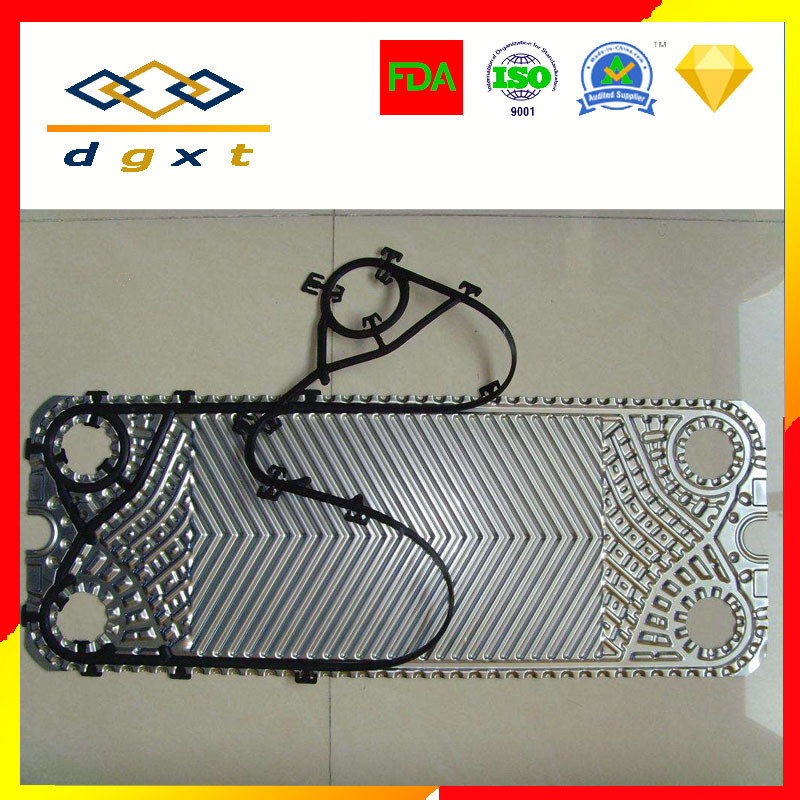

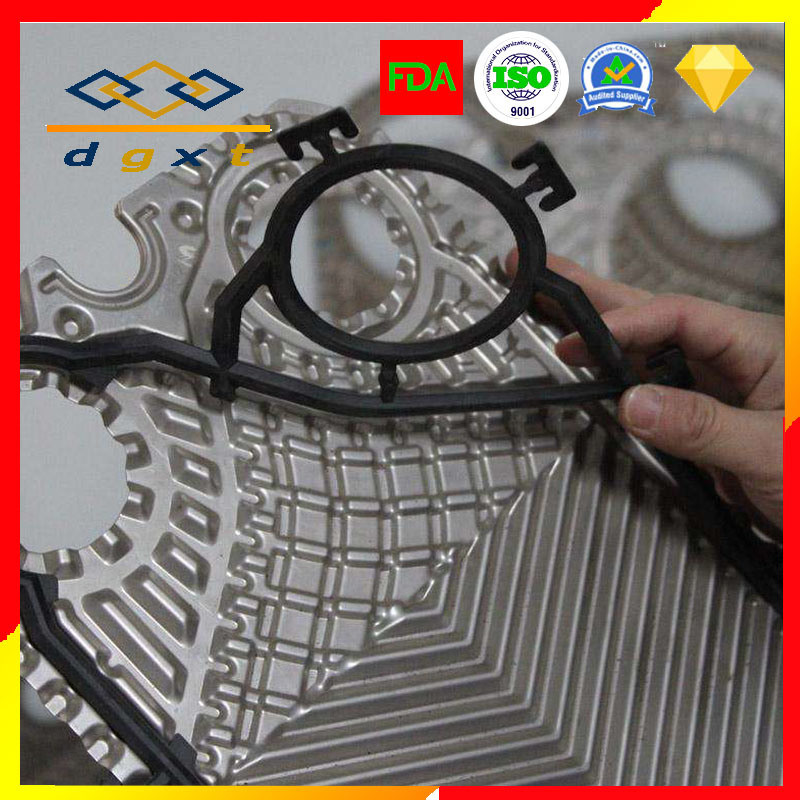

Plate and gaskets used in heat exchanger

SONDEX GEA APV Tranter FUNKE VICARB
S4A hang-on VT04 H12 GL13unilateral glue FP04 V4 hang-on
S8A hang-on VT10 H17&O-RING GL13 Diagonal glue FP08 V8 hang-on
S7A hang-on VT20 N35 GL13 half FP10 V13
S14A hang-on VT20P N50 GX26 Diagonal FP16 V20
S20A hang-on VT40 K71 GX26 half FP22 V28 glue
S18 clip VT40P Q055D GC26 FP14 V28 hang-on
S19 Glue VT80 Q080E GX42 Diagonal FP20 V45 hang-on
S21 Button VT80M A085 GC51 FP19 V60 hang-on 370G
S22 Button N40 J060 GX51 Diagonal FP205 V85 hang-on
S41 Button NT50M J092 GX51half FP31 V100 hang-on
S43 Button NT50X J107 GC60 FP40 V110
S65 Button NT50T J185 GC60 full FP50 V130
S81 Button NT100S SR1 GX60 Diagonal FP60 V170
S42 Button NT100T SR2 GX60 half FP80 V60 glue
S37 NT100M SR3 GX100 Diagonal FP70 V45 glue
S38 NT150S LR9AV  GX100 half FP41 CIPRIANI
S39 NT150L TR9AL GX140 Diagonal FP81 CP150A
S100 NT250S TR9AV GX140 half FP405 CP250C
S19A hang-on NT250L TR9GL GX85 Diagonal FP100 CP200
S58 clip NT350S TR9GN GX85 half FP130 CP250B
SF25 hang-on NT350M M107 GX145 Diagonal FP05 CP100A
S25 glue VT80Glue.DN170 R14 GX145 half FP112 HISAKA
S17 Button DN125 Glue. A145 GX205 unilateral FP82 LX625A
S121Button NT150 Glue. Q030E GX64 Diagonal FP190 LX025A
S188 Button VT80 Glue.SMALL-BIG Q030D GX64 half FP71 RX30A
S145   M060 GX91 Diagonal FP09 LX595A
SW40 VT402 T4 GX118 Diagonal FP42 CX10
S47 Button VT405 SR6GL GX205 Diagonal FP62 W.Schmidt(API)
S201 glue VT2508 B063S GX265 Diagonal FP160 SIGMA106
SF123G NF350 M092 GX180 Diagonal FP120
SF160G Thermowave R8 GX42 unilateral Smartheat SIGMA114
S63 Button TL90SS SR9 GX26 unilateral SH154 SIGMA37
S62 Button TL90PP K34 GX51 unilateral SH154-A SIGMA26
S47B TL150SS B134S GX100 unilateral SH204 SIGMA35
S20A TL150PP A055 GX60 unilateral LHE SIGMA13
S41A TL400SS R10 GX26 hang-on Diagonal LH150 SIGMA25
S113 TL400PP B110S GC09 LH104 SIGMA36
S43AD TL250SS B158S GX18 Diagonal HT101 SIGMA55
S43A TL250PP Q055E GX18 unilateral HT102 SIGMA56
S65A TL500SS 0034 GX18 Half/Full HT103 SIGMA66
S100A TL500PP R5 GX37 HT104 SIGMA106
S67 TL650SS K55 06T HT231 SIGMA136
S86 Button TL650PP SR23PV UX80 HT232 SIGMA156
S110 Button TL850SS H12 Water maker UX40 HT233 SIGMA76
S86B hang-on TL850PP B205S GF187 HT234 SIGMA96
S110B hang-on TL50PP SR6GH GC26(hang-on) HT150 SIGMA SRAR 45
S31A DANFOSS SR6AG GC51(hang-on) HT151 SIGMA90
S7A XG30 SR6AA GC60(hang-on) HT152 SIGMA27
S130 glue XG40 SFD22 GX12 HT153 SIGMA35X
S100 glue XG50 ZP270 GCD054 Diagonal HT502 SIGMA9
S65 glue XG65   GCD044 Diagonal   SIGMA48
S43 glue XG75   GCD054 unilateral   SIGMA9
S86 Button XG95   GCD044 unilateral HK26 SIGMA7
S145 XG85   GL13(hang-on)
S201 XG45   GC8 unilateral,Diagonal
S210 XGS55A   UX90
  XGS56A   UX100

Welcome to OEM,Detailed Product Description
1.can complete replace Alfalaval plate
2.high heating transferring efficiency at it is peak
3.plate thickness:0.5/0.6/0.7/0.8mm
4.Plate material:304,316L,Ti
5.gaskets material:EPDM,EPDMP,HEPDM,NBR,HNBR,Viton-A,Viton-G,FKM

Plate Heat exchanger Material Warm Tips:

Plate material Applicable fluids
Stainless steel(SU304.316 ect) Clean water, river water, edible oil, mineral oil
Stainless steel & Ti, Ti-Pd Sea water, salty water,salt compounds
20Cr, 18Ni,SMO Dilute sulfuric acid,Water solution of salt matter,
Inorganic solution
Nickel High temperature and high concentration of caustic soda
Hastelloy Concentrated sulfuric acid,Hydrochloric acid, Phosphoric acid
Sealing material: adapt temperature Suitable for fluid
NBR -15~+120ºC Water, sea water, cooking oil, salt water
HNBR -15~+140ºC High temperature mineral oil, high temperature water
EPDM -25~+170ºC Hot water, water vapor, acid, alkali
Viton -5~+130ºC

Acid, alkali, fluid


Display:

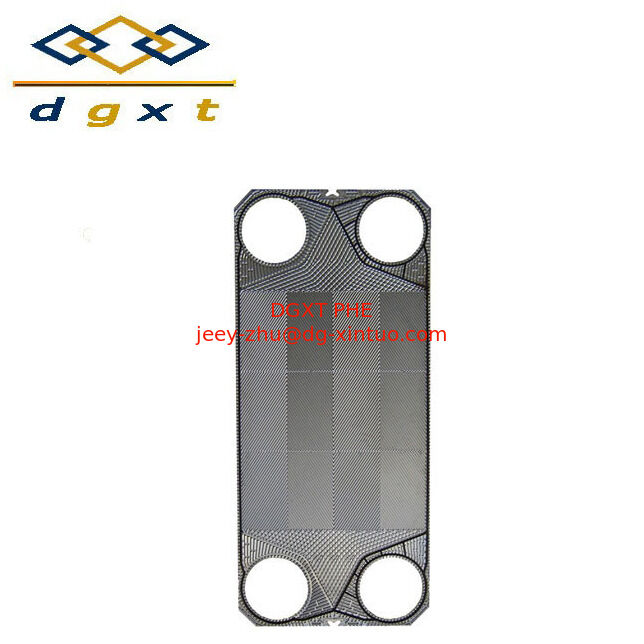

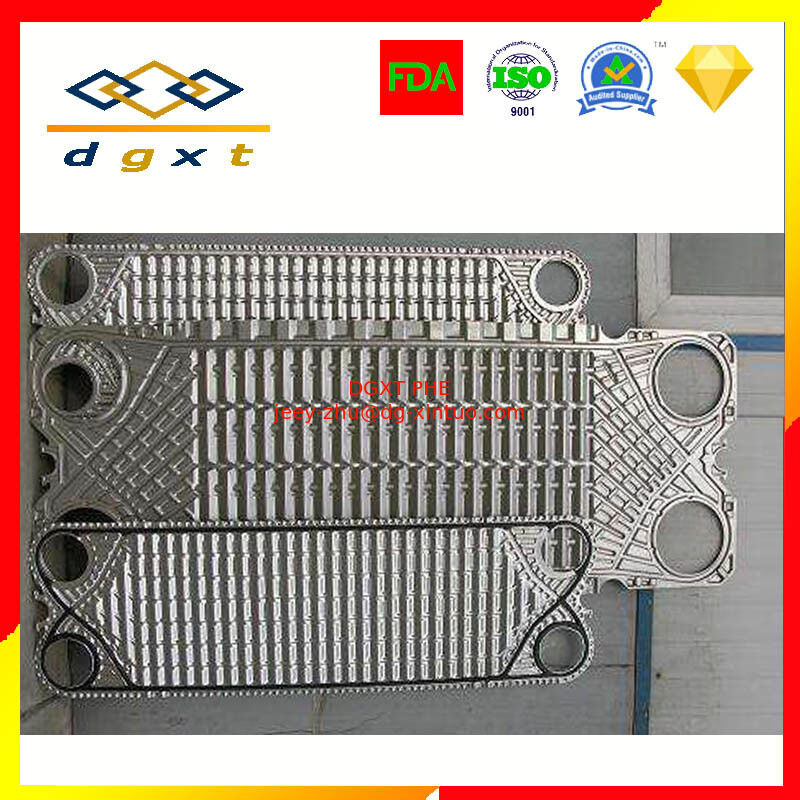

M6/M10/M15/M20/M30 Stainless Steel Heat Exchanger Plate

M6/M10/M15/M20/M30 Stainless Steel Heat Exchanger Plate
M6/M10/M15/M20/M30 Stainless Steel Heat Exchanger Plate





M6/M10/M15/M20/M30 Stainless Steel Heat Exchanger Plate
M6/M10/M15/M20/M30 Stainless Steel Heat Exchanger Plate
M6/M10/M15/M20/M30 Stainless Steel Heat Exchanger Plate
M6/M10/M15/M20/M30 Stainless Steel Heat Exchanger Plate
M6/M10/M15/M20/M30 Stainless Steel Heat Exchanger Plate

M6/M10/M15/M20/M30 Stainless Steel Heat Exchanger Plate
M6/M10/M15/M20/M30 Stainless Steel Heat Exchanger Plate


Company feature

1.focus on plate heat exchanger

2.pay attention to client's require

3.reply massage at the first time

4.delivery in time

5.Prime Quality



Working principle

Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.

M6/M10/M15/M20/M30 Stainless Steel Heat Exchanger Plate
