1.100% equivalent can replace original brand plate.
2.Maximized thermal efficiency with plate heat exchanger
3.Fast delivery save each customers' time

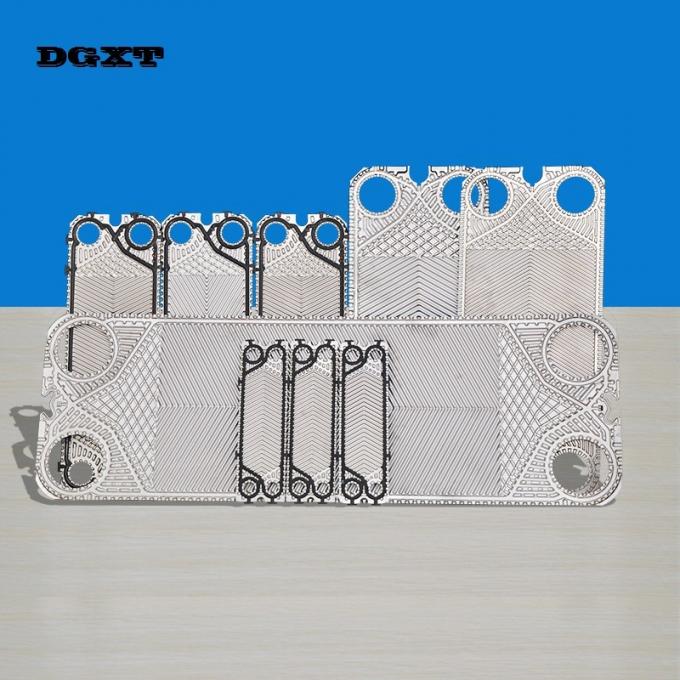

4.Supply Product : Heat exchanger plate,Heat exchanger gaskets,copper brazed heat exchanger,tube heat exchanger,gasket plate heat exchanger
5.Standard export packing wooden case,Product wont be damaged,broken at any conditions
6.Brands including including Gea, Apv, Funke, Hisaka, Muller, Sondex, Thermowave, tranter ,etc
| Plates For Funke Plate Heat Exchanger |
| Model |
FP04 |
FP05 |
FP08 |
FP09 |
FP10 |
| |
|
|
|
|
|
| Model |
FP14 |

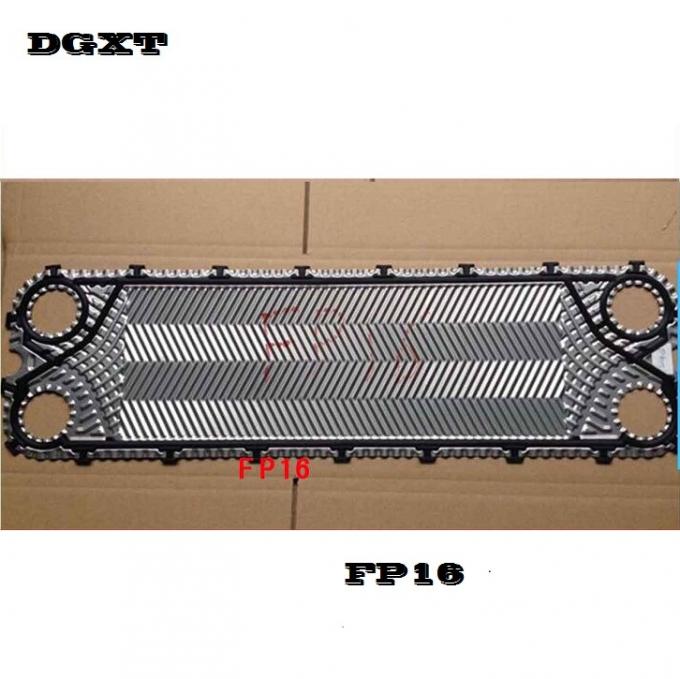

FP16 |
FP20 |
FP22 |

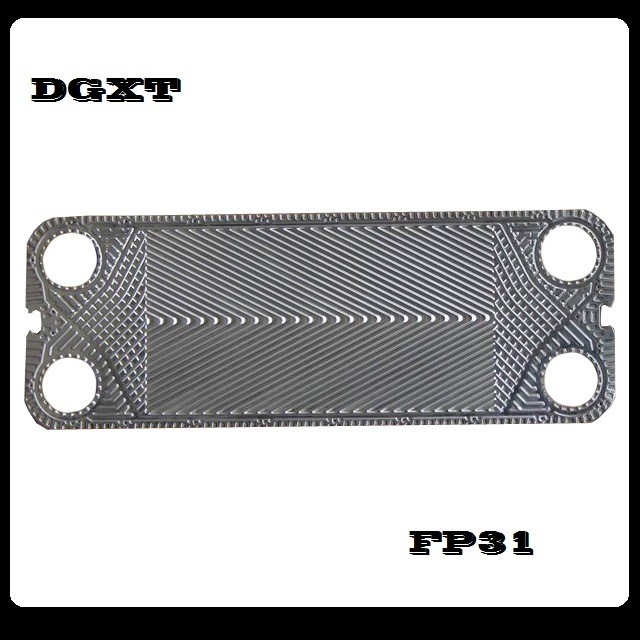

FP31 |
| |
|
|
|
|
|
| Model |
FP40 |

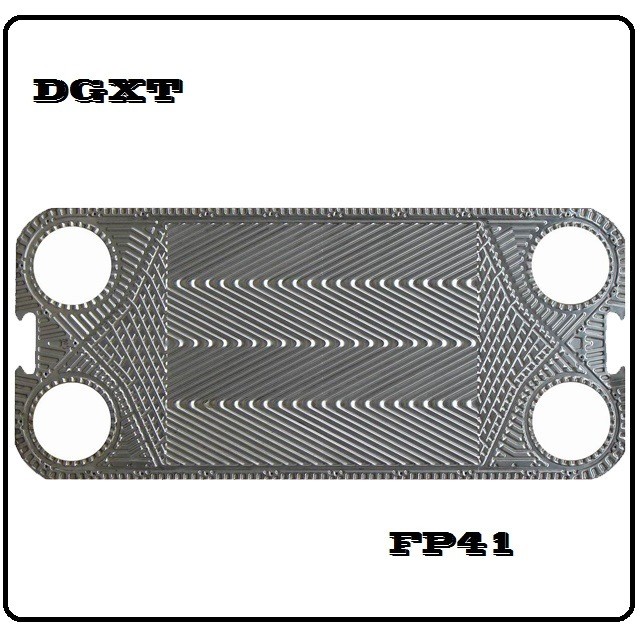

FP41 |

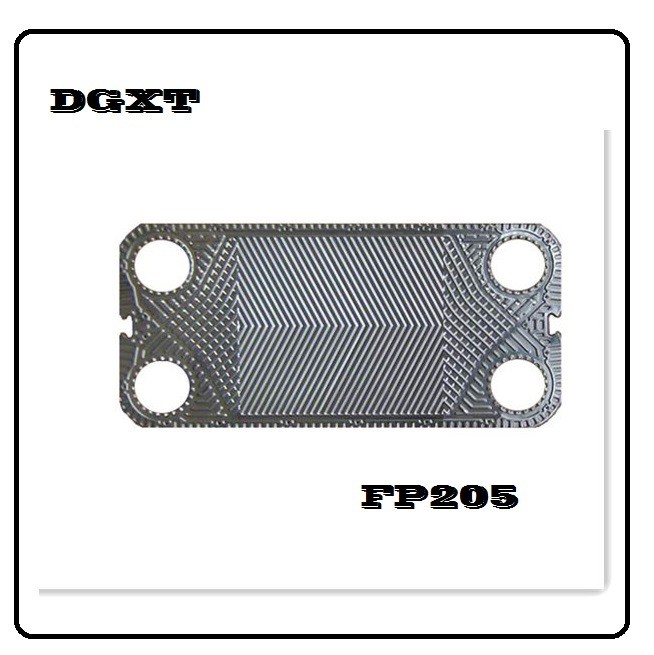

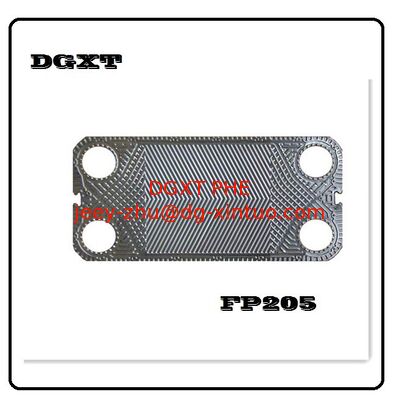

FP205 |
FP50 |
FP60 |
| |
|
|
|
|
|
| Model |
FP80 |
...etc |
|
|
|
Product introduction:

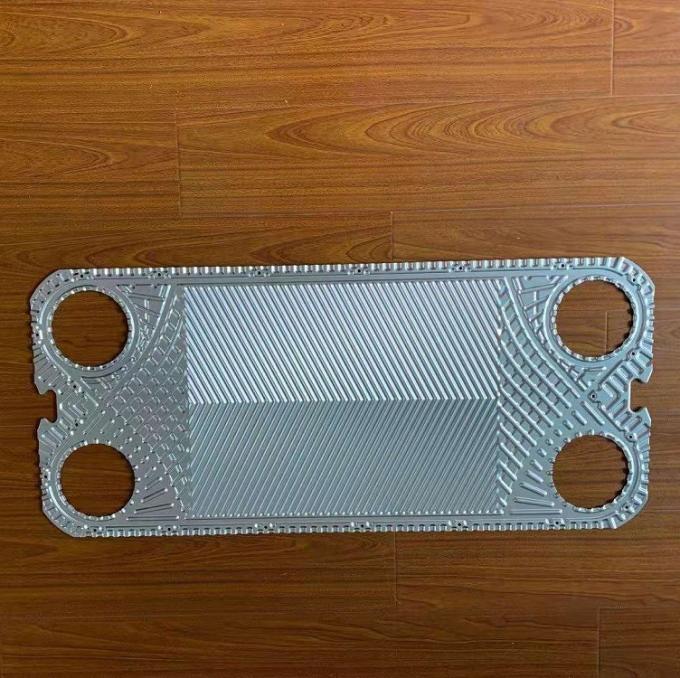

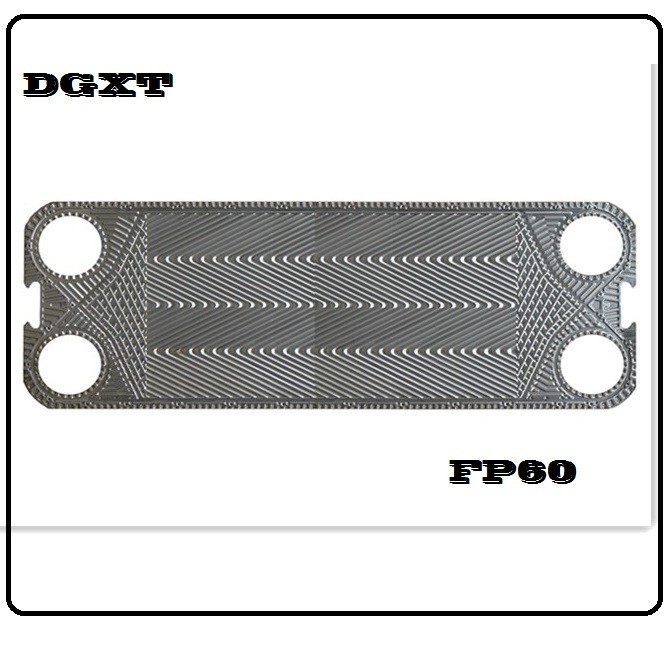

FP60 Plate parameter
| Model |
Corrugation Angle |
Corrugation Depth (mm) |
Angle Hole Diameter (mm) |
Angle Hole Center Distance (mm) |
Plate Size (mm) |
Area of Plate (M2) |
| FP60 |
54°126° |
3 |
φ150 |
1306*290 |
1521*505 |
0.6 |
1.Metal material:304/316/Titanium /254 SMO/Alloy C-276/904L oem welcome
2. Gaskets:Nitrile- EPDM- FKM
3.Application: Heat exchanger
High effectient heating and Cooler
Heat Exchanger Plate Material Choose reference:
| Plate matrial |
Adapt Liquid |
| Stainless steel(304,316) |
Pure water,stem water,Edible oil,mineral oil |
| (Ti,Ti-Pa) |
Sea water,Salt water,Salt compounds |
| 20Cr,18Ni,6Mo(2455Mo) |
Dilute sulfuric acid, dilute sulfate, organic water solution |
| (Ni) |
High Temperature and High Concentration Caustic Sodium |
| HASTELLOY(C276,D25,B2G) |
Concentrated sulfuric acid, hydrochloric acid and phosphoric acid |
Heat Exchanger Plate gaskets Material Choose reference:
| Sealing material: |
adapt temperature |
Suitable for fluid |
| NBR |
-15~+120ºC |
Water, sea water, cooking oil, salt water |
| HNBR |
-15~+140ºC |
High temperature mineral oil, high temperature water |
| EPDM |
-25~+170ºC |
Hot water, water vapor, acid, alkali |
| Viton |
-5~+130ºC |
Acid, alkali, fluid
|
We Supply all kinds of heat exchanger replacement plate and gaskets service,completed machine service.
including Gea, Apv, Funke, Hisaka, Muller, Sondex, etc
