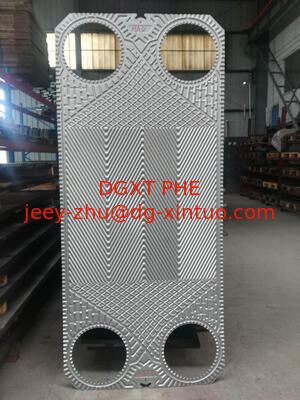

High Thermal Efficiency Heat Exchanger Transfer Plate For Plate Heat Exchanger With CE ISO9001

Basic Information
Place of Origin: China
Brand Name: DGXT
Certification: CE ISO9001 CO FE
Model Number: customized
Minimum Order Quantity: 1
Price: 20-49 Pieces / US $65 | 50-199 Pieces / US $60 | 200+ Pieces / US $55
Packaging Details: wooden case
Delivery Time: 8-10 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 per month
Model NO.: Various HS Code: 841950
Port: Shanghai, China Performance: Pressure Resistant, Temperature Resistant, Corrosion Resistant
Material: Stainless Steel

Plate Heat exchanger Material



Product Specification

Welcome to OEM,Detailed Product Description
1.can complete replace plate
2.high heating transferring efficiency at it is peak

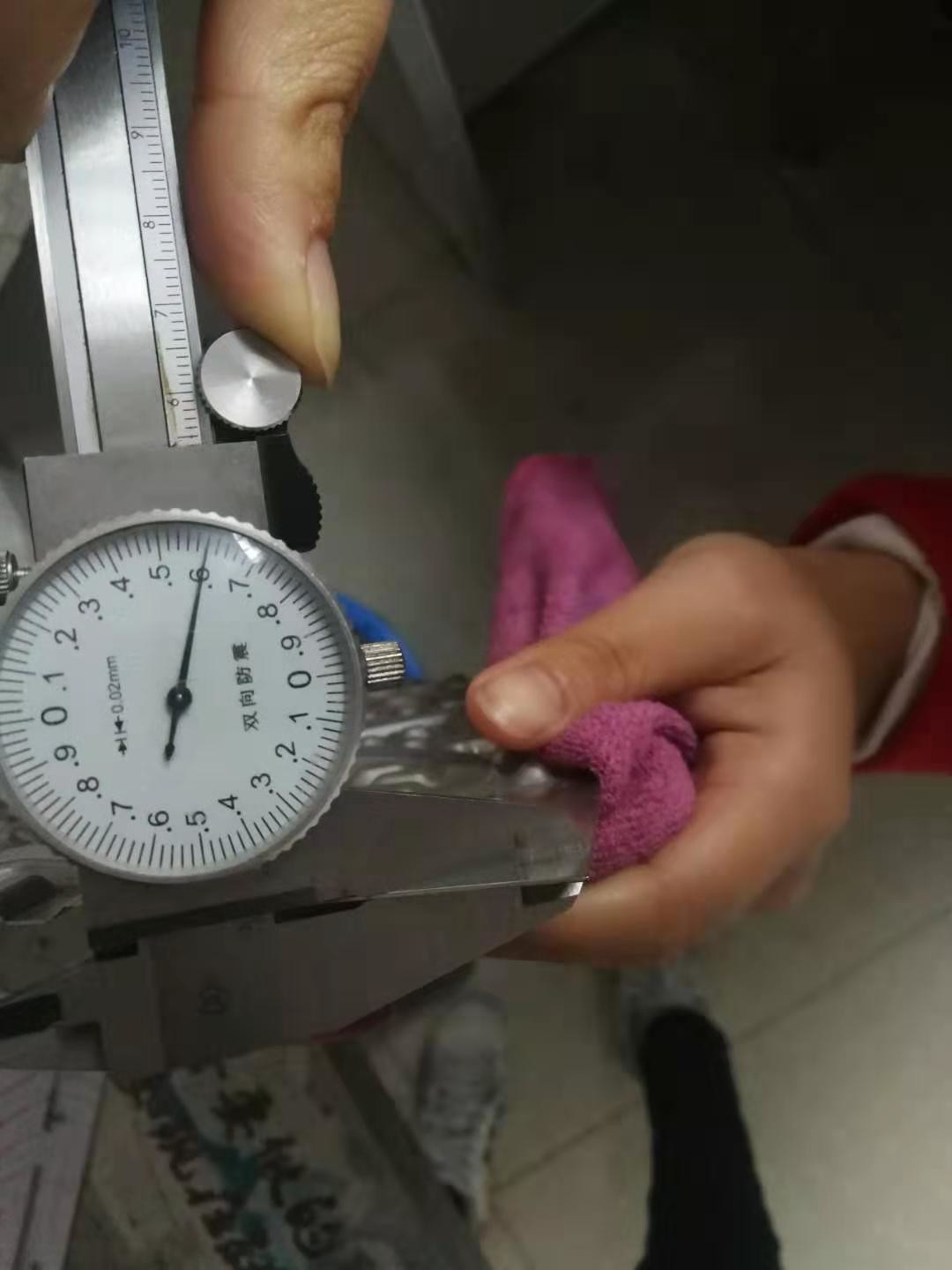

3.plate thickness:0.5/0.6/0.7/0.8mm
4.Plate material:304,316L,Ti
5.gaskets material:EPDM,EPDMP,HEPDM,NBR,HNBR,Viton-A,Viton-G,FKM

Plate Heat exchanger Material Warm Tips:
Plate material Applicable fluids
Stainless steel(SU304.316 ect) Clean water, river water, edible oil, mineral oil
Stainless steel & Ti, Ti-Pd Sea water, salty water,salt compounds
20Cr, 18Ni,SMO Dilute sulfuric acid,Water solution of salt matter,
Inorganic solution
Nickel High temperature and high concentration of caustic soda
Hastelloy Concentrated sulfuric acid,Hydrochloric acid, Phosphoric acid
Sealing material: adapt temperature Suitable for fluid
NBR -15~+120ºC Water, sea water, cooking oil, salt water
HNBR -15~+140ºC High temperature mineral oil, high temperature water
EPDM -25~+170ºC Hot water, water vapor, acid, alkali
Viton -5~+130ºC

Acid, alkali, fluid

Our company develop and manufacture plate heat exchanger and related parts by our own factory.


High Thermal Efficiency M30 Heat Exchanger Transfer Plate Phe Plate with Ce ISO9001

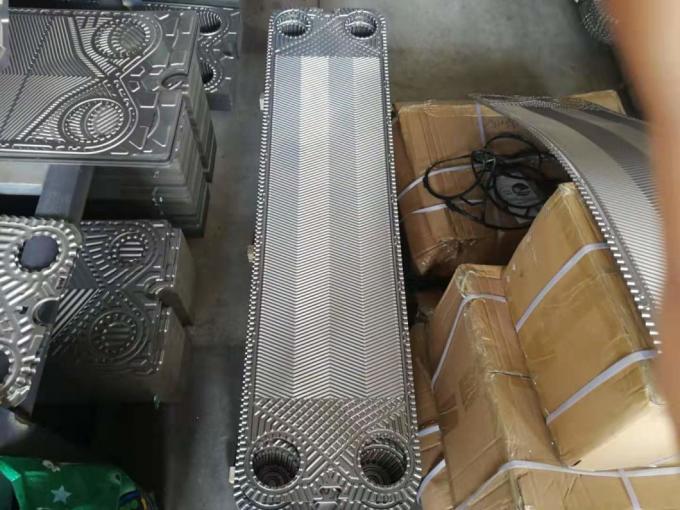

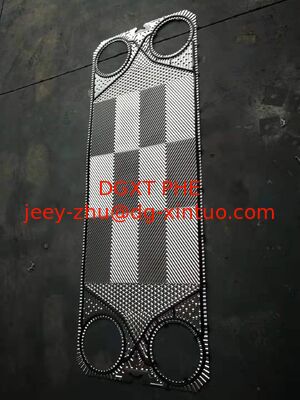

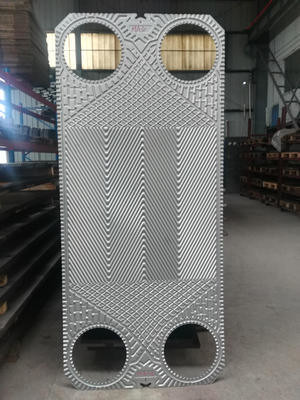

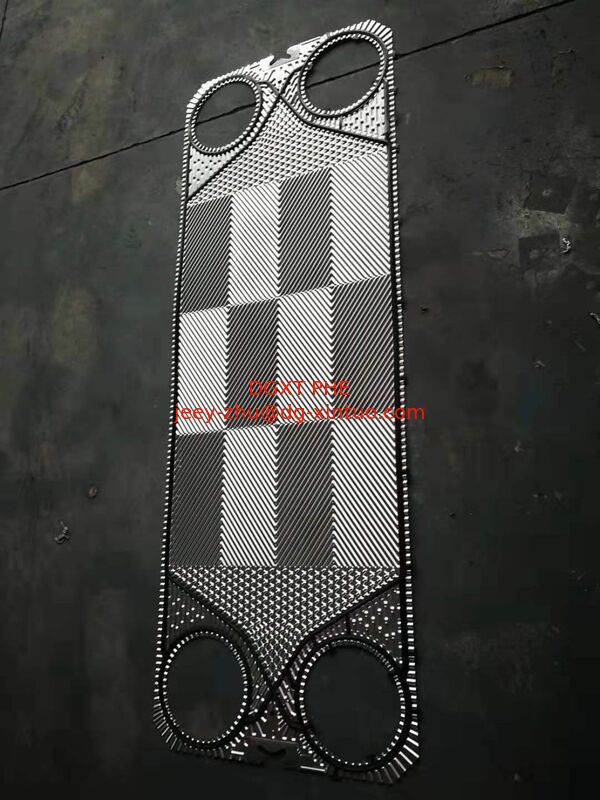

High Thermal Efficiency Heat Exchanger Transfer Plate For Plate Heat Exchanger With CE ISO9001 1High Thermal Efficiency Heat Exchanger Transfer Plate For Plate Heat Exchanger With CE ISO9001 2High Thermal Efficiency Heat Exchanger Transfer Plate For Plate Heat Exchanger With CE ISO9001 3
Company feature

1.focus on plate heat exchanger

2.pay attention to client's require

3.reply massage at the first time

4.delivery in time

5.Prime Quality



Working principle

Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.

Food industry: Milk pasteurization, Milk and beverage pasteurization , Wine tempering, Bottled water treatment , CIP (Cleaning-in-Place) heating , Reverse osmosis water.

Marine application : Central cooling of the main or auxiliary engines or turbines, Lubrication oil cooling, Recooling of circulated water for cooling cylinders, pistons, injection nozzles, Cooling of Baoder oil, compressor oil and other lubricants, Preheating of lubrication oil and heavy fuel oil, Preheating of seawater for fresh water production, Heat recovery, Heat exchange to air-condition the passengers' cabins and freight spaces

Others: turbine oil cooler, Chemical industry, district heating, district cooling, swimming pool heating, solar heating

Terms
FOB Price: $65
Minimum Order: 50 Piece/Pieces
Port: Shanghai,China
Payment Terms: 30% and 70% before Shipment Via T/T,paypal,western union

High Thermal Efficiency M30 Heat Exchanger Transfer Plate Phe Plate with Ce ISO9001
