Origin: | China | HS Code: | 84195000 |
---|---|---|---|
Port: | Shanghai, China | Production Capacity: | 10000pieces |
Certification: | CO | Application: | Heater, Cooler |
Principle: | Recuperative Heat Exchanger | Style: | Hang On |
Material: | Rubber EPDM Or NBR | Transport Package: | Carton Case |
Product M6M Channel Gasket introduction:
Model | M6M |
Material | EPDM Max High temperature resistance 150°C |
Type | Clip On(Hang On) |
Center Size | 747*248 mm |
Application | Hot water, water vapor, Weak acid, alkali Heat exchanger |
EXW Price | EXW $2.9/pcs FOB ShangHai $3/pcs |
Weight | 96g/pcs |
Note | Price Based on the Quantity, the more the Better. |
Model | M6M |
Material | NBR Max High temperature resistance 120°C |
Type | Clip On(Hang On) |
Center Size | 747*248 mm |
Application | Water, sea water, cooking oil, salt water Heat exchanger |
EXW Price | EXW $2.9/pcs FOB ShangHai $3/pcs |
Weight | 95g/pcs |
Note | Price Based on the Quantity, the more the Better. |
Packing Carton Case Detail:
BOX KIND NO. | SIZE:(cm) | NET:kg | LOADING WEIGHT:KG |
NO1. | 110.5*74.5*74.5 | 2 | 120 |
NO.2 | 60*37*35 | 1.5 | 20 |
NO.3 | 52*32*35 | 1 | 10 |
NO.4 | 35*19*23 | 0.5 | 5 |

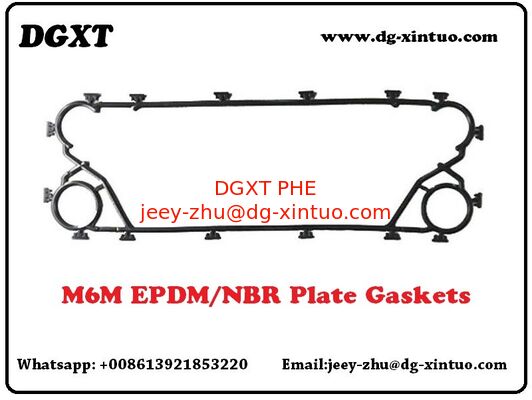

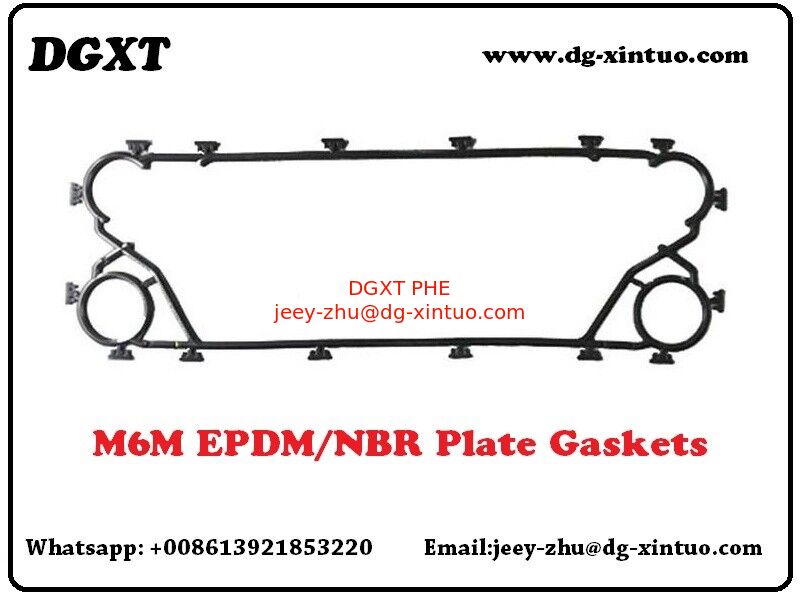

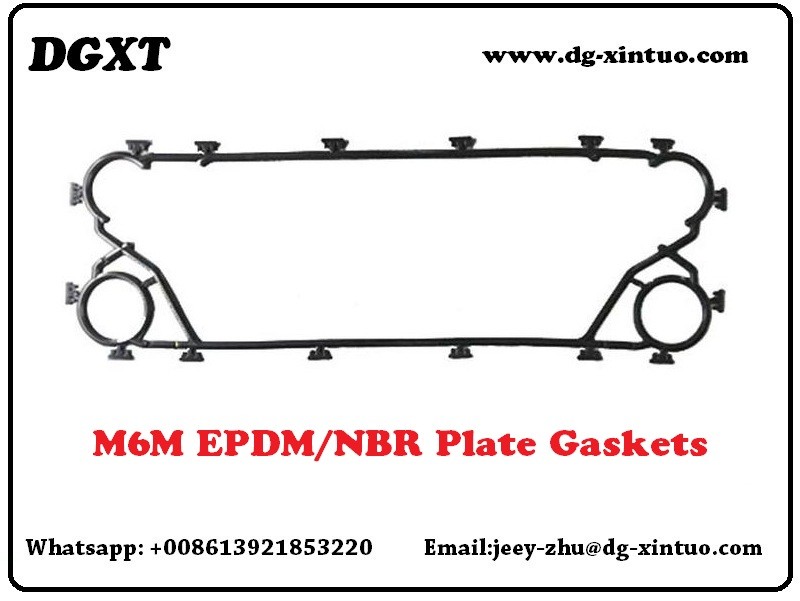

M6M Parellel Flow Gasket (Channel Gasket )

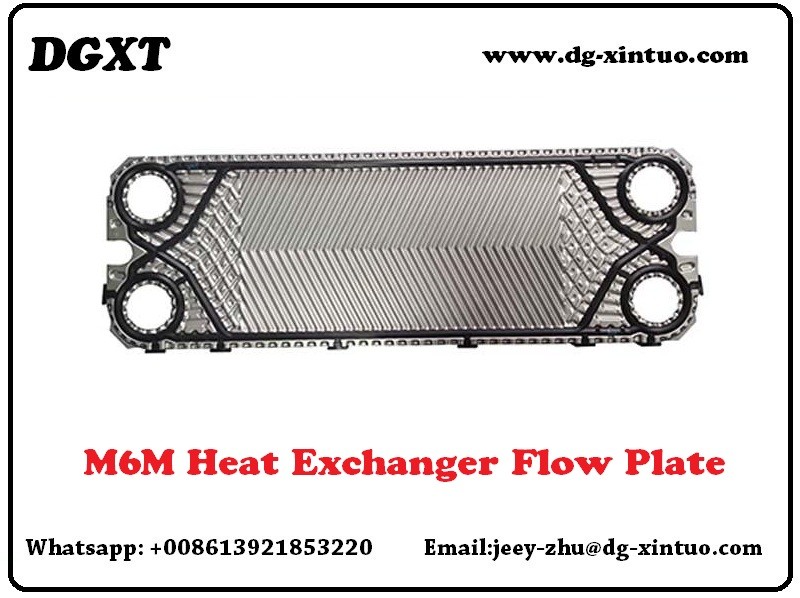

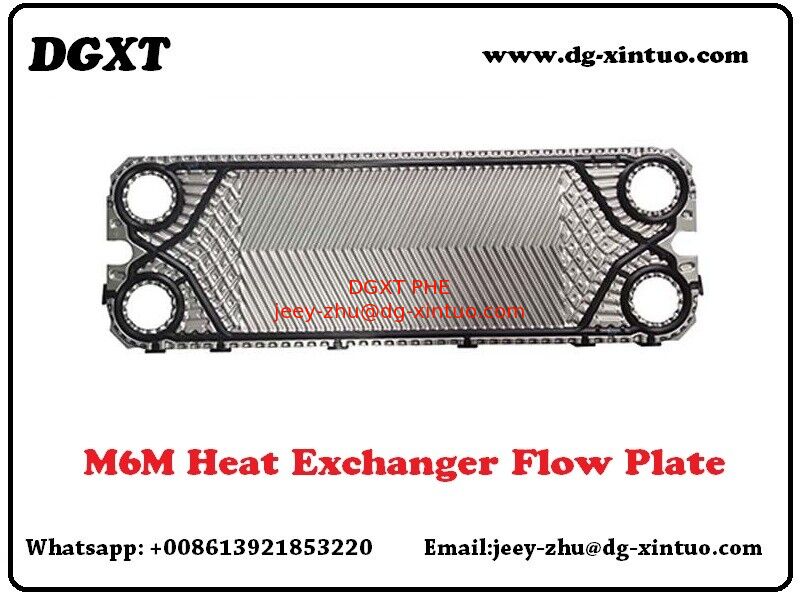

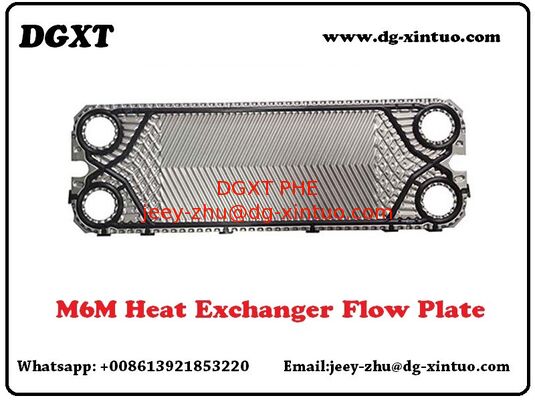

M6M Flow Plate with END Gasket (Transfer Gasket)
M6 Plate Heat Exchanger

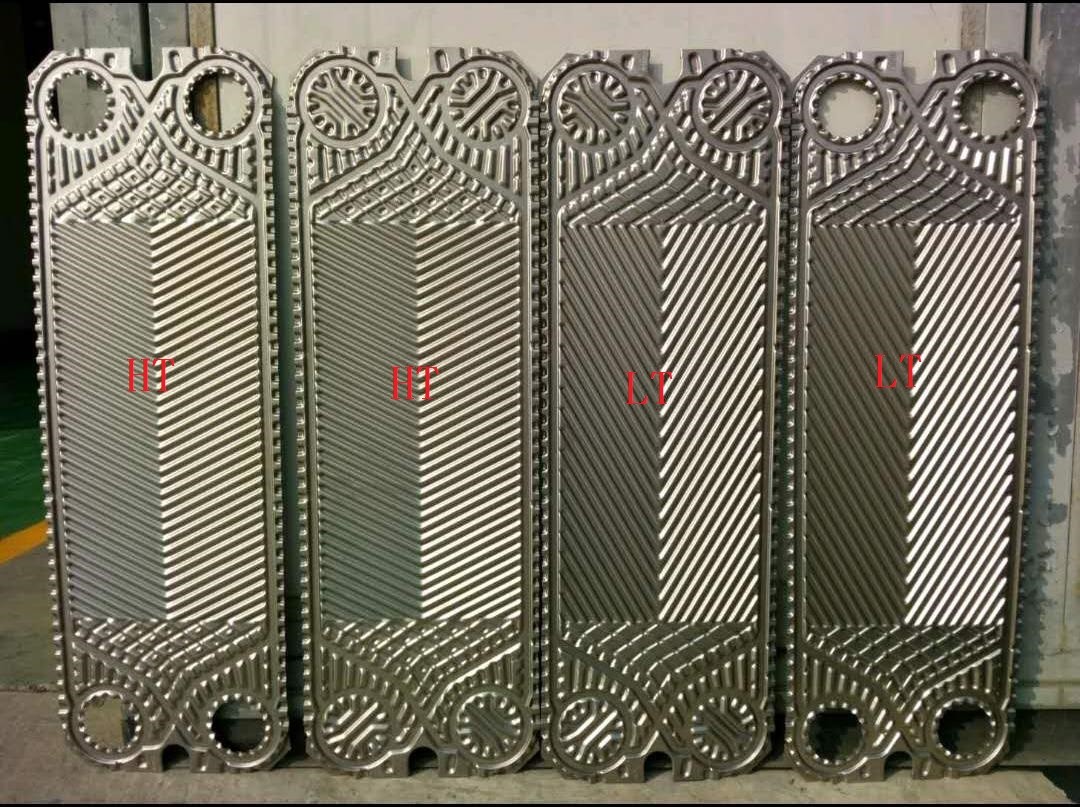

More Replacement For Variety of brands Heat Exchanger Plate And Gasket
Plate matrial | Adapt Liquid |
Stainless steel(304,316) | Pure water,stem water,Edible oil,mineral oil |
(Ti,Ti-Pa) | Sea water,Salt water,Salt compounds |
20Cr,18Ni,6Mo(2455Mo) | Dilute sulfuric acid, dilute sulfate, organic water solution |
(Ni) | High Temperature and High Concentration Caustic Sodium |
HASTELLOY(C276,D25,B2G) | Concentrated sulfuric acid, hydrochloric acid and phosphoric acid |
Sealing material: | adapt temperature | Suitable for fluid |
NBR | -15~+120ºC | Water, sea water, cooking oil, salt water |
HNBR | -15~+140ºC | High temperature mineral oil, high temperature water |
EPDM | -25~+170ºC | Hot water, water vapor, acid, alkali |
Viton | -5~+180ºC | Acid, alkali, fluid |
Please feel free to contact with us for quotation !
