| Place of Origin: | China |
|---|---|
| Brand Name: | DGXT |
| Certification: | CE ISO9001 CO FE |
| Model Number: | S27A S30 S35 S37 S37b S38 S39 S41 S41A S42 S43b |
| Minimum Order Quantity: | 1 |
| Price: | 50-99 Pieces / US $19.5 | 100-199 Pieces / US $18.5 | 200-299 Pieces / US $18 | 300+ Pieces / US $17.6 |
| Packaging Details: | wooden case |
| Delivery Time: | 8-10 days |
| Payment Terms: | T/T, Western Union, Paypal, Money Gram |
| Supply Ability: | 10000 per month |
| Model NO.: | S27A S30 S35 S37 S37B S38 S39 S41 S41A S42 S43B | Gasket Material: | NBR/EPDM/Viton-a/Viton-G |
|---|---|---|---|
| Origin: | China | HS Code: | 84195000 |
| Port: | Shanghai, China | Customized: | Non-Customized |
| Sectional Shape: | Square | Performance: | Pressure Resistant, Temperature Resistant, Corrosion Resistant |
| Material: | Stainless Steel | Plate Material: | 304/316/Titanium /254 Smo/Alloy C-276/904L OEM Wel |
|

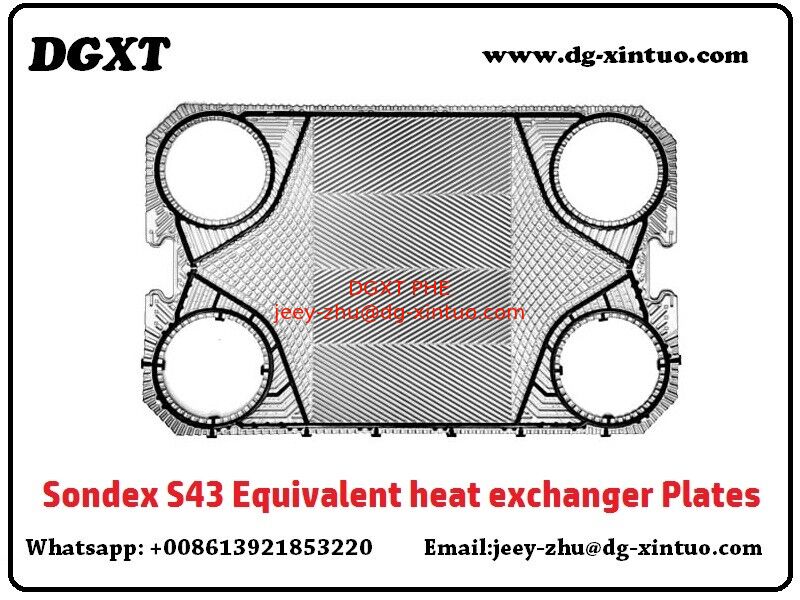

Gaskets FOR Plate Heat Exchanger
|
||||||

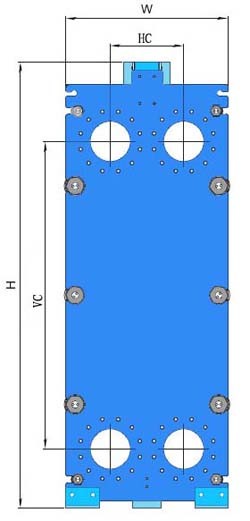

| Model | S4A Hang-om | S15 | S8 Sondersnap | S8A Hang-on | S14A Hang-on | S7A Hang-on |
| HC=mm | 70 | 126 | 70 | 126 | 126 | |
| VC=mm | 381 | 694 | 656 | 694 | 394 | |

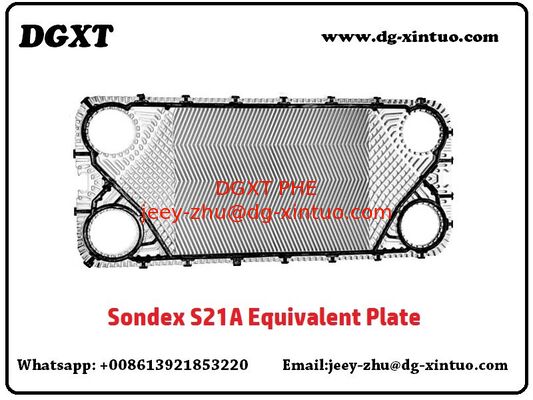

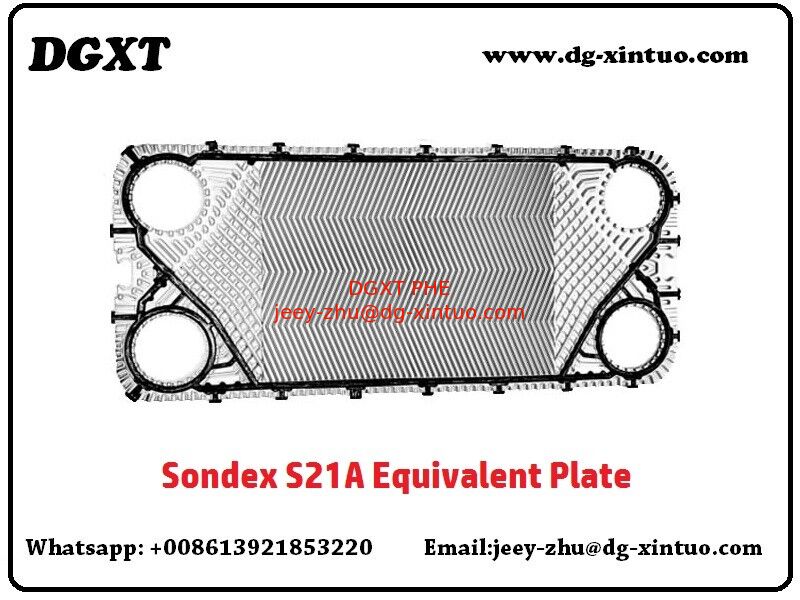

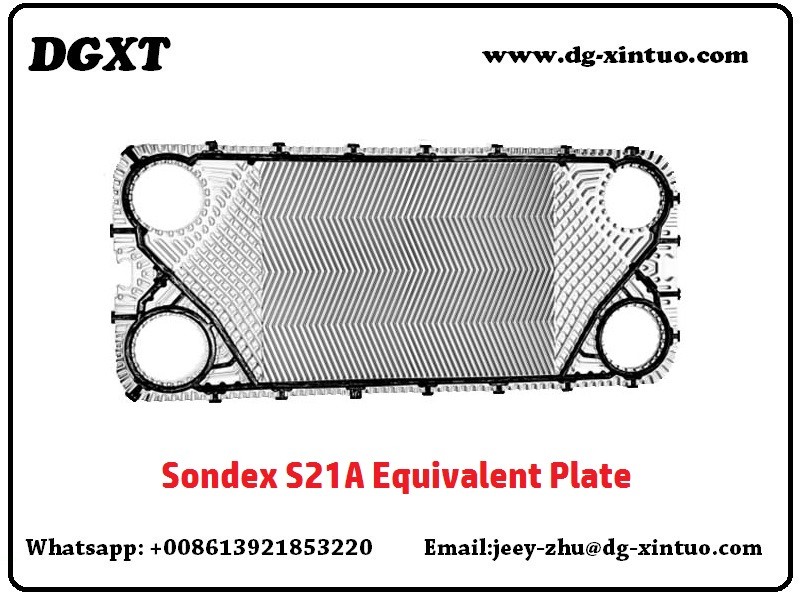

| Model | S19A | S20 | S20A Hang-on | S21 Sonderlock | S21A Hand-on | S22 Sonderlock |
| HC=mm | 192 | 126 | 126 | 225 | 225 | 225 |
| VC=mm | 700 | 894 | 894 | 719 | 719 | 719 |

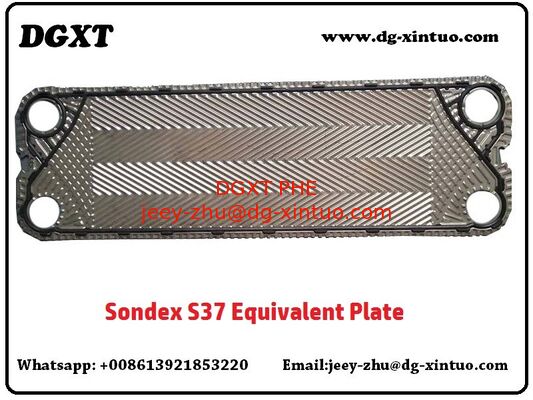

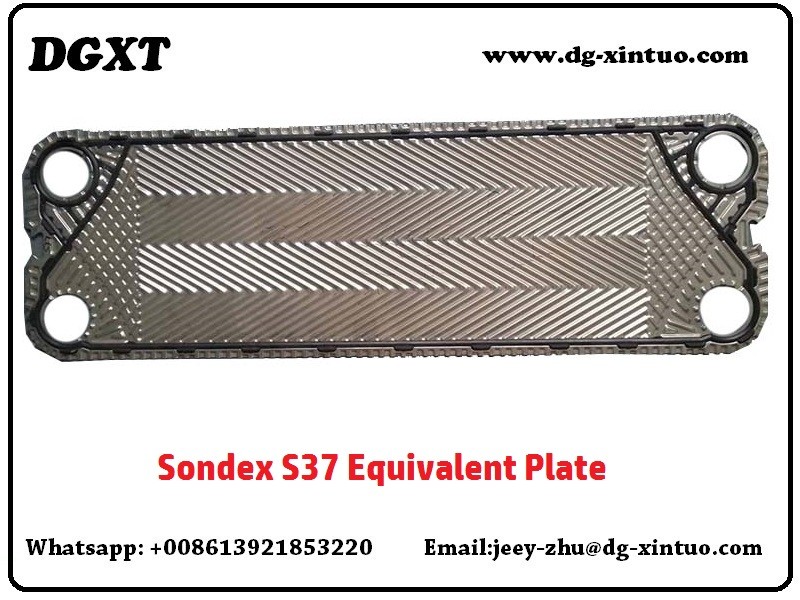

| Model | S121 | S30 | S35 | S37 Sonderlock | S38 Sondersnap | S39 |
| HC=mm | 480 | 202 | 283 | 238 | 202 | |
| VC=mm | 1490 | 950 | 800 | 1441 | 1150 | |

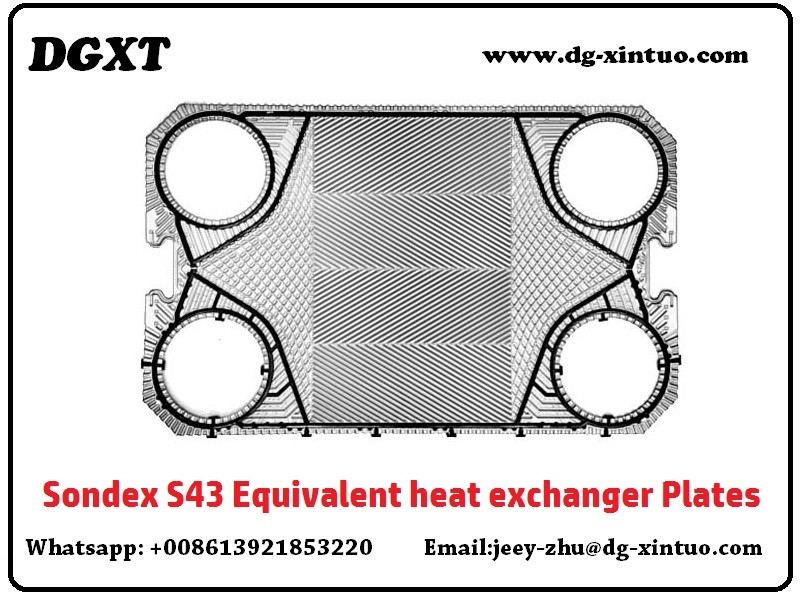

| Model | S41 | S41A | S43 Sonderlock | S47 Sonderlock | S50 | S62 Sonderlock |
| HC=mm | 296 | 296 | 395 | 225 | 202 | 296 |
| VC=mm | 890 | 890 | 791 | 1365 | 1450 | 1292 |
| Model | S64 Sonderlock | S65 | S65 Sonderlock | S81 | S100 Sonderlock | S120 |
| HC=mm | 225 | 395 | 395 | 480 | 395 | 480 |
| VC=mm | 1771 | 1091 | 1091 | 1080 | 1489 | 1490 |
| Plate matrial | Adapt Liquid |
| Stainless steel(304,316) | Pure water,stem water,Edible oil,mineral oil |
| (Ti,Ti-Pa) | Sea water,Salt water,Salt compounds |
| 20Cr,18Ni,6Mo(2455Mo) | Dilute sulfuric acid, dilute sulfate, organic water solution |
| (Ni) | High Temperature and High Concentration Caustic Sodium |
| HASTELLOY(C276,D25,B2G) | Concentrated sulfuric acid, hydrochloric acid and phosphoric acid |
| Sealing material: | adapt temperature | Suitable for fluid |
| NBR | -15~+120ºC | Water, sea water, cooking oil, salt water |
| HNBR | -15~+140ºC | High temperature mineral oil, high temperature water |
| EPDM | -25~+170ºC | Hot water, water vapor, acid, alkali |
| Viton | -5~+130ºC |
Acid, alkali, fluid |
We Supply all kinds of heat exchanger replacement plate and gaskets service,completed machine service.
Becoming our VIP customers for more plate and gasket models and discounts!
