Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Stainless Steel/titanium Plate

Basic Information
Place of Origin: China
Brand Name: DGXT
Certification: CE ISO9001 CO FE
Model Number: S41/S41A/S42
Minimum Order Quantity: 1
Price: 20USD
Packaging Details: wooden case
Delivery Time: 8-10 days
Payment Terms: L/C, T/T, Western Union, Paypal, Money Gram
Supply Ability: 10000 per month

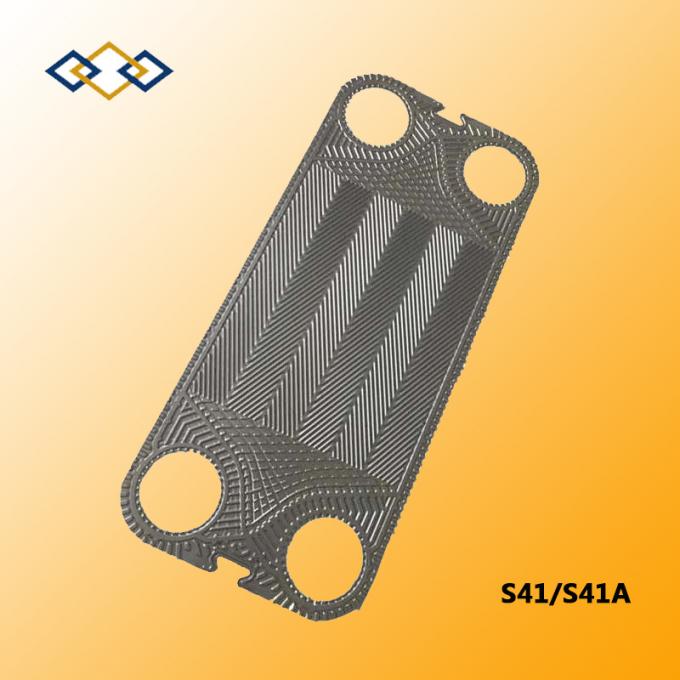

Model NO.: S41/S41A Specification: 1100*500 MM
Origin: China HS Code: 84195000
Port: Shanghai, China Sectional Shape: Square
Performance: Pressure Resistant, Temperature Resistant, Corrosion Resistant Material: Stainless Steel/titanium

Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Plate


Model Corrugation Angle Corrugation Depth (mm) Angle Hole Diameter (mm) Angle Hole Center Distance (mm) Plate Size (mm) Area of Plate (m2)

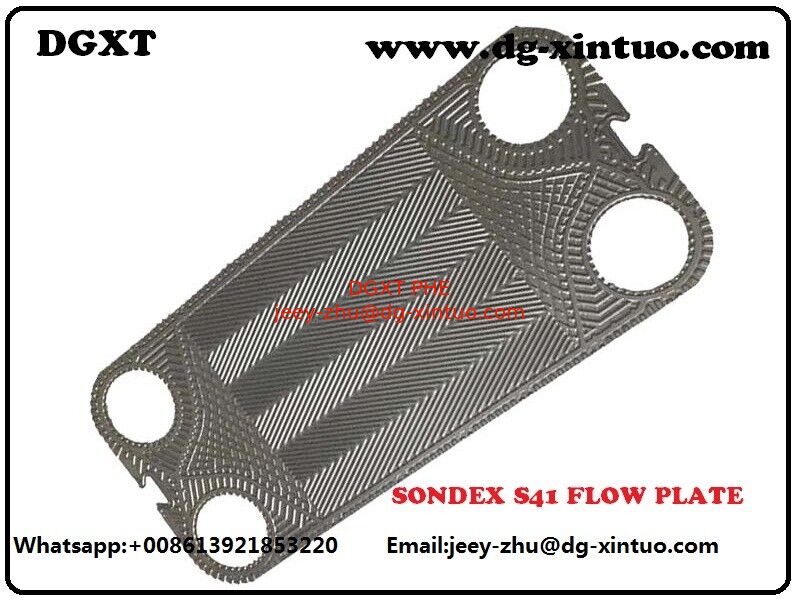

S41 55°135° 2.6 φ147 890*296 1100*500 0.41
S41A 55°135° 2.6 φ147 890*296 1100*500 0.41

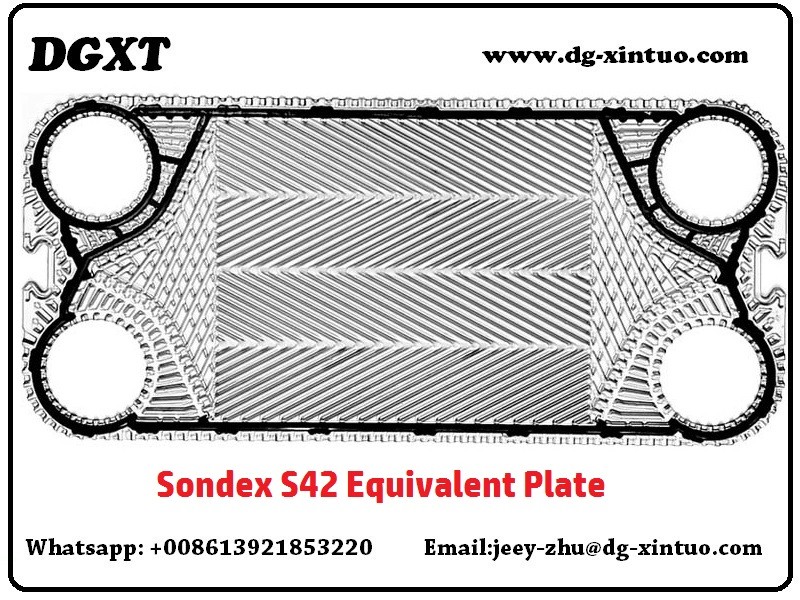

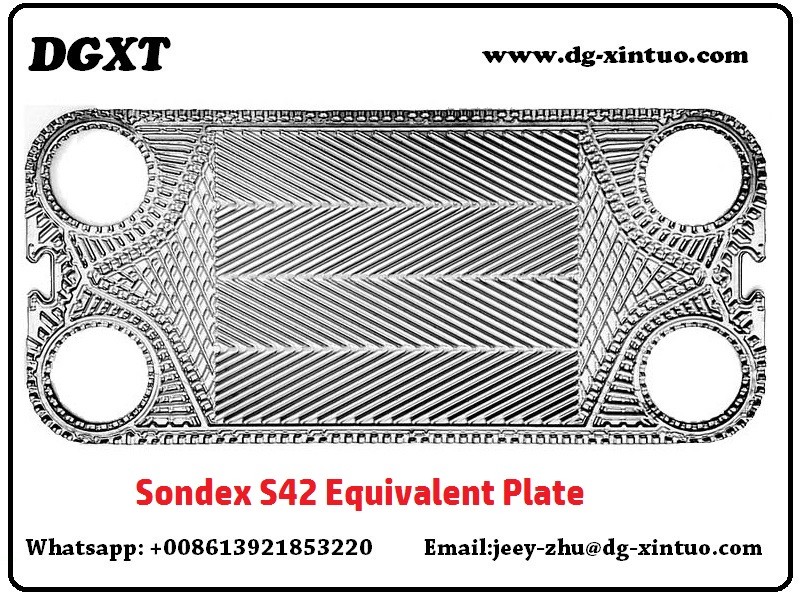

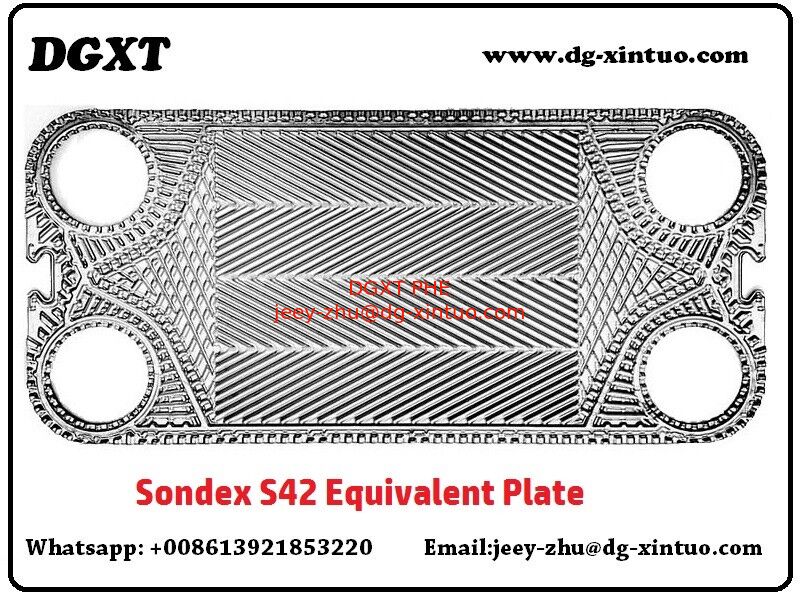

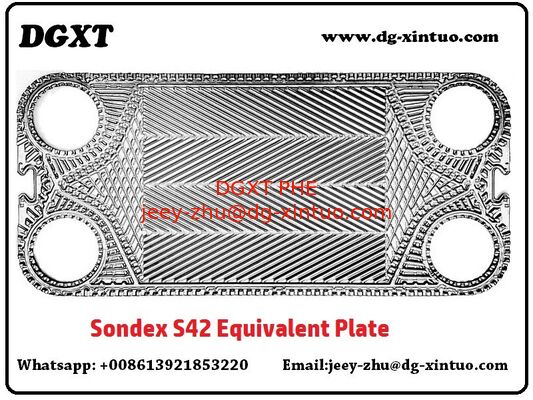

S42 55°135° 3.8 φ147 890*296 1099*499 0.42





We supply S41/S41A/S42 flow plate,end plate,transition plate Customized welcome.



Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Plate
Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Plate


Type:
Heat Exchanger Plate. Type: S41/S41A/S42
uses: heat exchanger, heat transfer mode, wall-to-wall heat exchanger
The role of plate in plate heat exchanger industry, plate heat exchanger plate is a key component of plate heat exchanger, the plate of plate heat exchanger is a special plate used in plate heat exchanger to isolate medium and exchange heat. It is an important part of plate heat exchanger.

Materials : stainless steel SUS304.316, titanium and titanium palladium Ti, Ti-pd, 20Cr, 18Ni, 6Mo 254SMO, alloy C276, copper H68 and so on.

Heat Exchanger Plate brief introduction

1.How to choose Plate Material?

Plate Material

Suitable Media

Stainless Steel(304/316)

Pure Water, River Water, Edible Oil, Mineral Oil

Ti, Ti-Pd

Seawater, Brine, Salt Substance

20Cr,18Ni,6Mo(254MO)

Dilute Sulfuric Acid, Dilute Salt Substance Aqueous Solution, Inorganic Aqueous Solution

Ni

High Temperature, High Density Caustic Soda

Hastelloy(C276,D205,B2G)

Concentrated Sulfuric Acid, Hydrochloric Acid, Phosphoric Acid

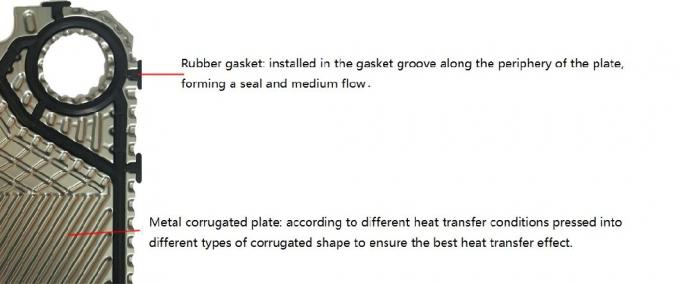

2.Each Plate contains two parts
Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Plate

3.Two functions of plate ripple
Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Plate

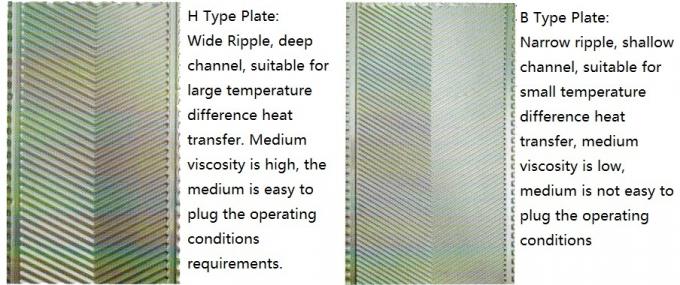

4.Two different types of plates
Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Plate

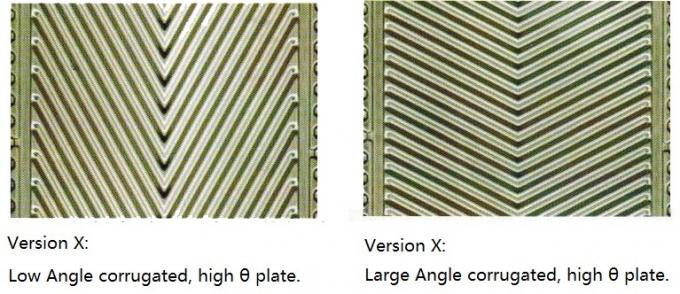

5.Each plate type has two types of plates with different corrugation angles
Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Plate

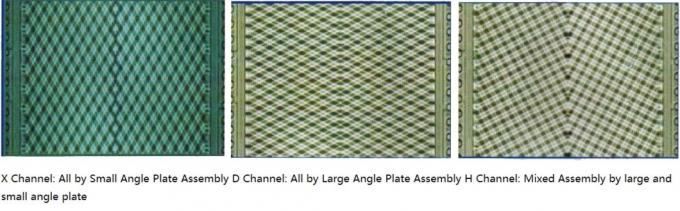

6.Two plates with different corrugation angles can be combined to form three different heat exchange channels:
Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Plate

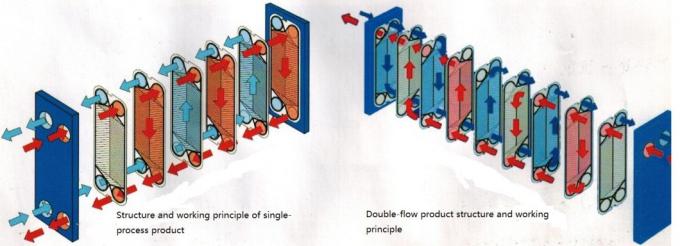

7.Each heat transfer channel can be assembled into a single-flow product structure and a double-flow product structure
Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Plate

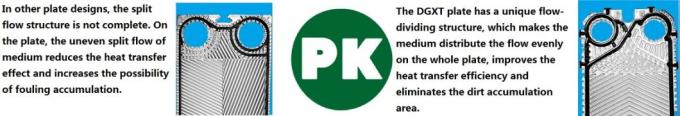

8.The advanced shunt structure design, lets the shunt more even
Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Plate

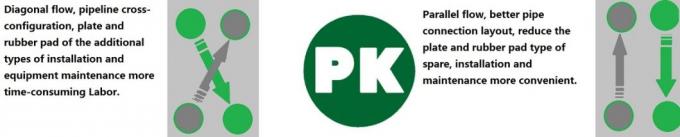

9.Parallel flow plate design, make maintenance more convenient
Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Plate

More Sondex plate type:

S4A S16B S22 S43A S81 S86 S65 Glue Type
S8A S9A S37 S43 S121 S110 S100 Glue Type
S7A S19A S41 S65 S188 S113G S130 Glue Type
S14A S31A S41A S100 S81 S201G SFD13
S20A S17 S42 S100 S121 SF123 SFD22
S7Glue S21 S63 S47 S188 SF160 SFD23
S20Glue S21A S43H S64 S62 S43 Glue Type SFD35

S41/S41A/S42 Plate Heat Exchanger
Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Stainless Steel/titanium Plate 10Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Stainless Steel/titanium Plate 11Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Stainless Steel/titanium Plate 12Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Stainless Steel/titanium Plate 13Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Stainless Steel/titanium Plate 14Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Stainless Steel/titanium Plate 15Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Stainless Steel/titanium Plate 16Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Stainless Steel/titanium Plate 17Supply Sondex Plate Replacement Plate S41/S41A/S42 Gasket Plate Heat Exchanger Stainless Steel/titanium Plate 18



For More Product Information please inquiry us! Thank You Very Much!
