| Place of Origin: | China |
|---|---|
| Brand Name: | DGXT |
| Certification: | FDA CE |
| Model Number: | customized |
| Minimum Order Quantity: | 1 |
| Price: | 50-199 Pieces / US $10 | 200-299 Pieces / US $8 | 300-499 Pieces / US $6 | 500+ Pieces / US $5 |
| Packaging Details: | wooden case |
| Delivery Time: | 8-10 days |
| Payment Terms: | TT |
| Supply Ability: | 10000 per month |

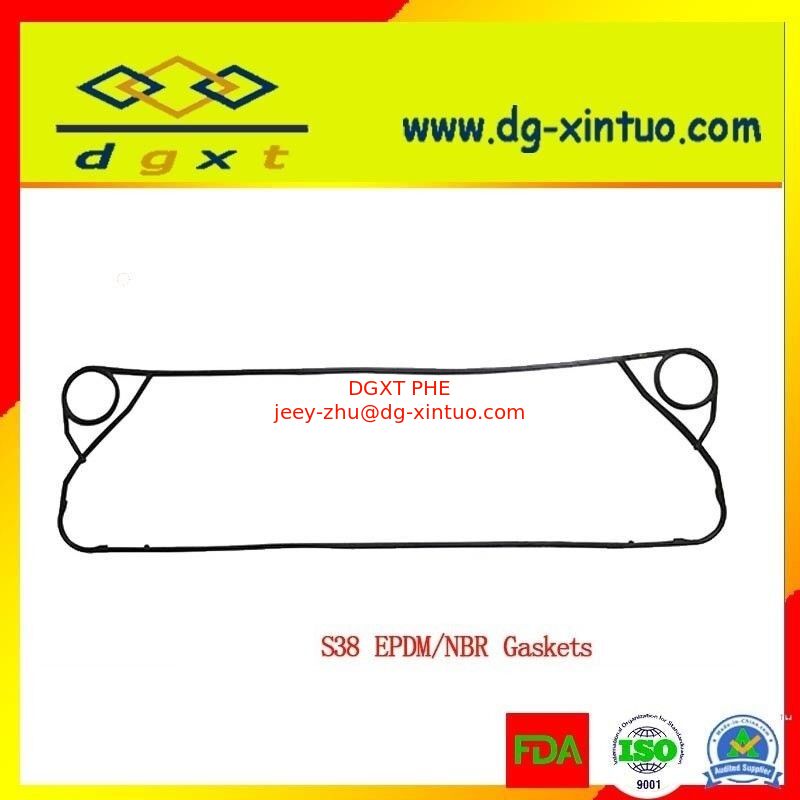

| Model NO.: | S27A S30 S35 S37 S37B S38 S39 S41 S41A S42 S43B | Application: | Plate Heat Exchanger |
|---|---|---|---|
| Origin: | China | HS Code: | 84195000 |
| Port: | Shanghai, China | Performance: | Pressure Resistant, Temperature Resistant, Corrosion Resistant |
| After-sale Service: | Online Support |
| Ptae And Gasket Material | ||
| 1.Plate material | 2.Gaster material | |
| *Stainless steel AISI304(14301) | *NBR,H-NBR | |
| *Stainless steel AISI316(14401) | *EPDM,EPDM-NT,EPDM-HT | |
| *Titanium and titanium palladium (Ti, ti-pd) | *CR | |
| *HASTELLOY alloy (C276) | *Viton | |
| *Special Steel 6Mo(254SMO) | ||
| *20Cr,18Ni,, nickel (Ni)etc | ||
| Frame And Connection Material | ||
| 1.Frame material | 2.Liner material | |
| *Stainless AISI304/AISI316 | *Stanard:EPDM/NBR/stainless AISI316 | |
| *Carton Steel Q235B | *Special Material 254SMO,C276,Ti | |
| Application | ||
| Application | ||
| *Petroleum industry | *Power station | *Solar photovoltaic |
| *Food industry | *Oil processing | *Metallurgy industry |
| *Chemical industry | *Marine and engine | *HAVC |
| *electronic industry | *Papermaking industry | *Textile industry |
| Plate material | Suitable for fluid | |
| Stainless(AISI304,AISI316): | Clean water,river water,cooking oil,mineral oil | |
| Ti,Ti-Pd: | Sea water,salt water, salt | |
| 20Cr,18Ni,6Mo(254SMO): | Dilute sulfuric acid,dilute salinized water solution,inorganic water solution | |
| Ni: | High temperature, high viscosity caustic soda | |
| HASTELLOY: | Concentrated sulfuric acid,hydrochloric acid,phosphoric acid | |
| Sealing material: | adapt temperature | Suitable for fluid |
| NBR | -15~+120℃ | Water,sea water,cooking oil,salt water |
| HNBR | -15~+140℃ | High temperature mineral oil,high temperature water |
| EPDM | -25~+170℃ | Hot water,water vapor,acid,alkali |
| Viton | -5~+130℃ | Acid,alkali,fluid |

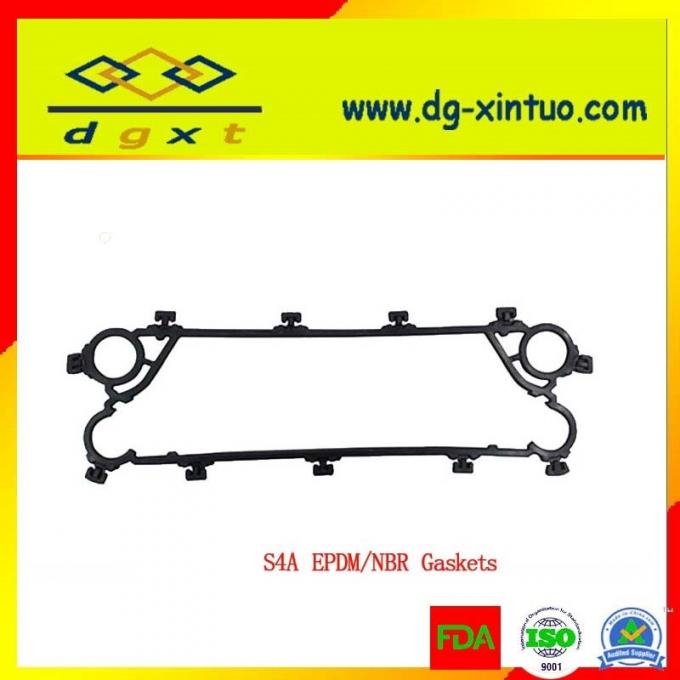

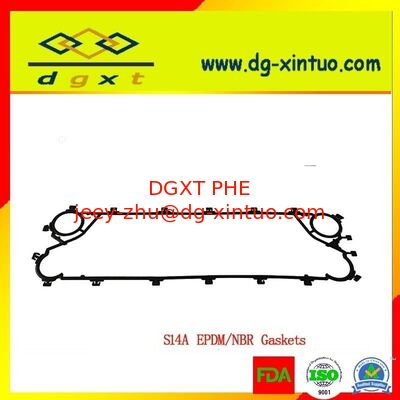

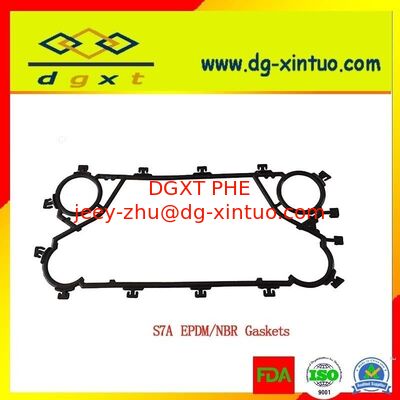

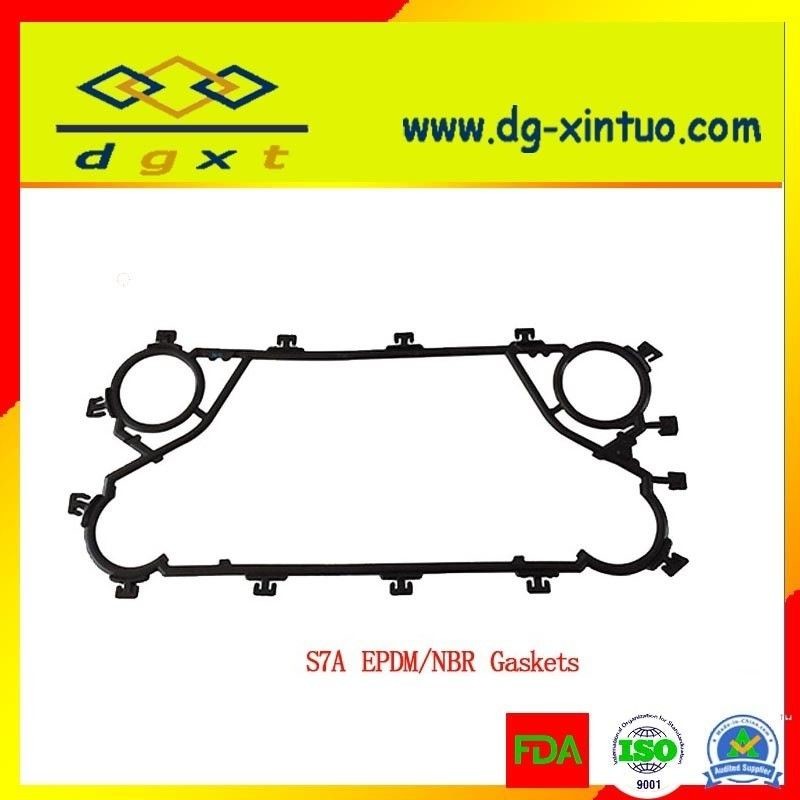

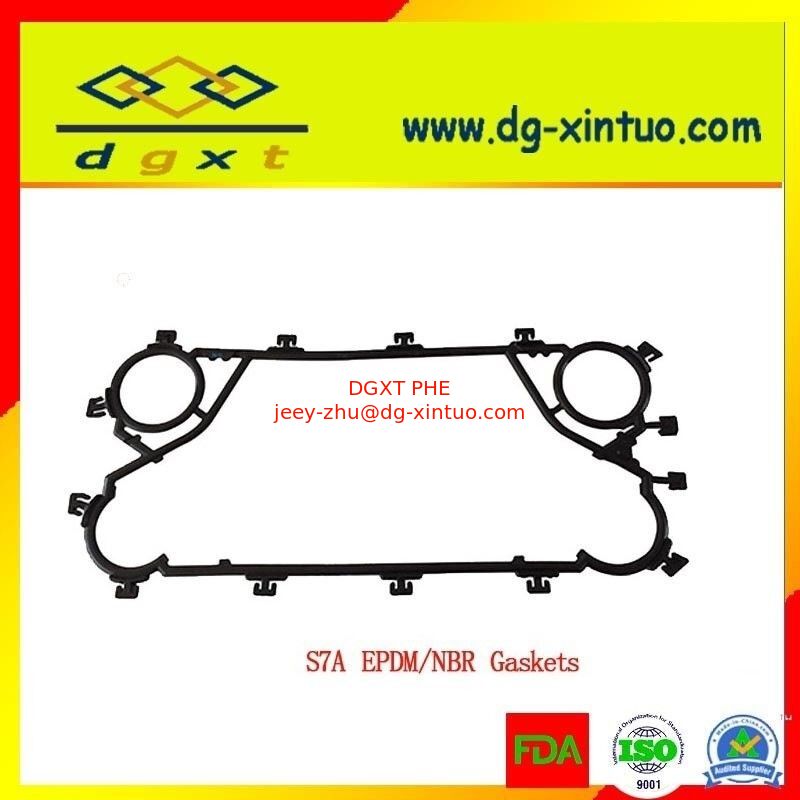

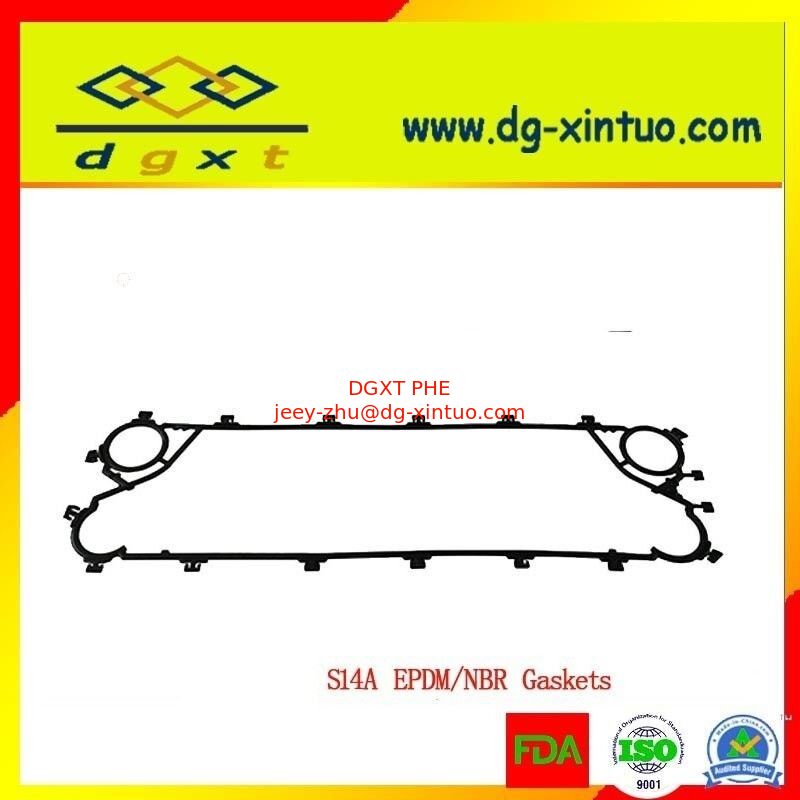

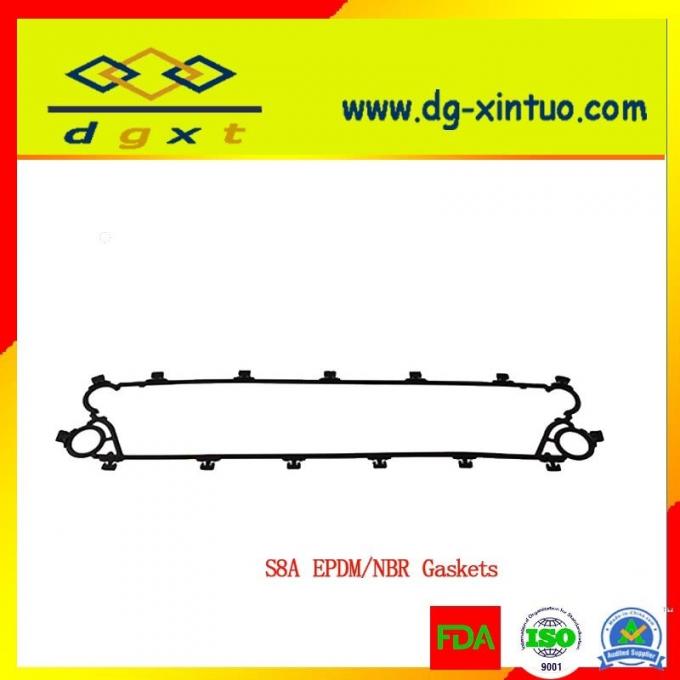

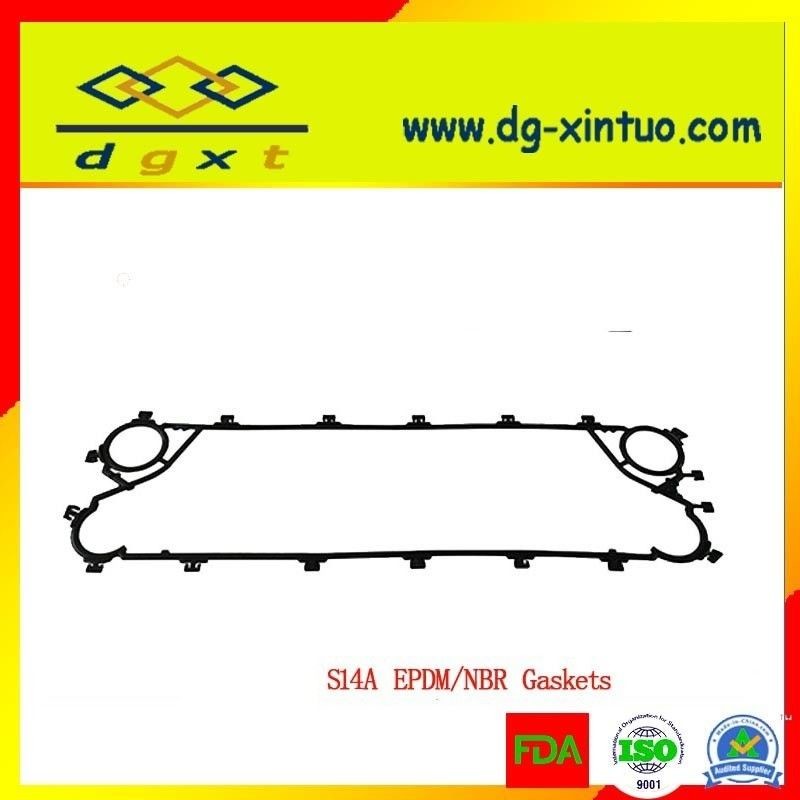

| Model | S4A Hang-om | S15 | S8 Sondersnap | S8A Hang-on | S14A Hang-on | S7A Hang-on |
| HC=mm | 70 | 126 | 70 | 126 | 126 | |
| VC=mm | 381 | 694 | 656 | 694 | 394 | |

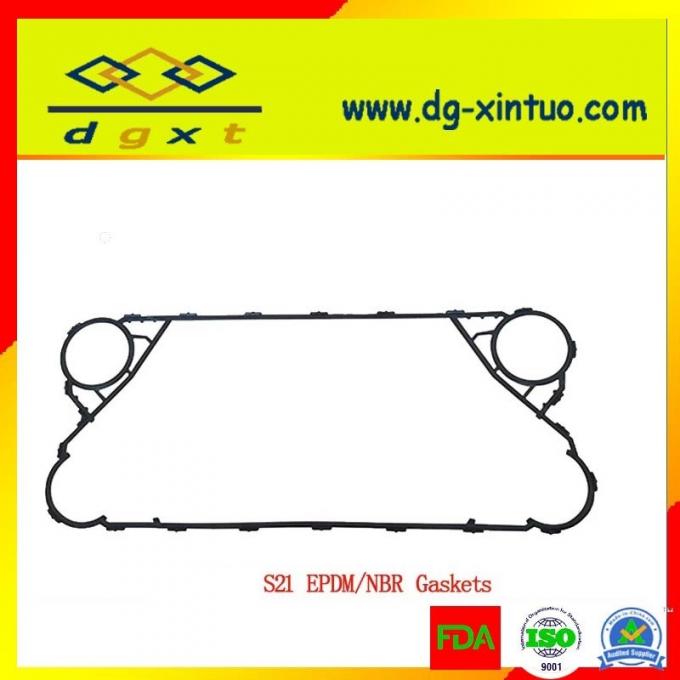

| Model | S19A | S20 | S20A Hang-on | S21 Sonderlock | S21A Hand-on | S22 Sonderlock |
| HC=mm | 192 | 126 | 126 | 225 | 225 | 225 |
| VC=mm | 700 | 894 | 894 | 719 | 719 | 719 |

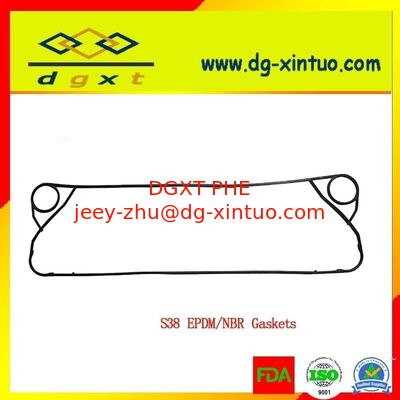

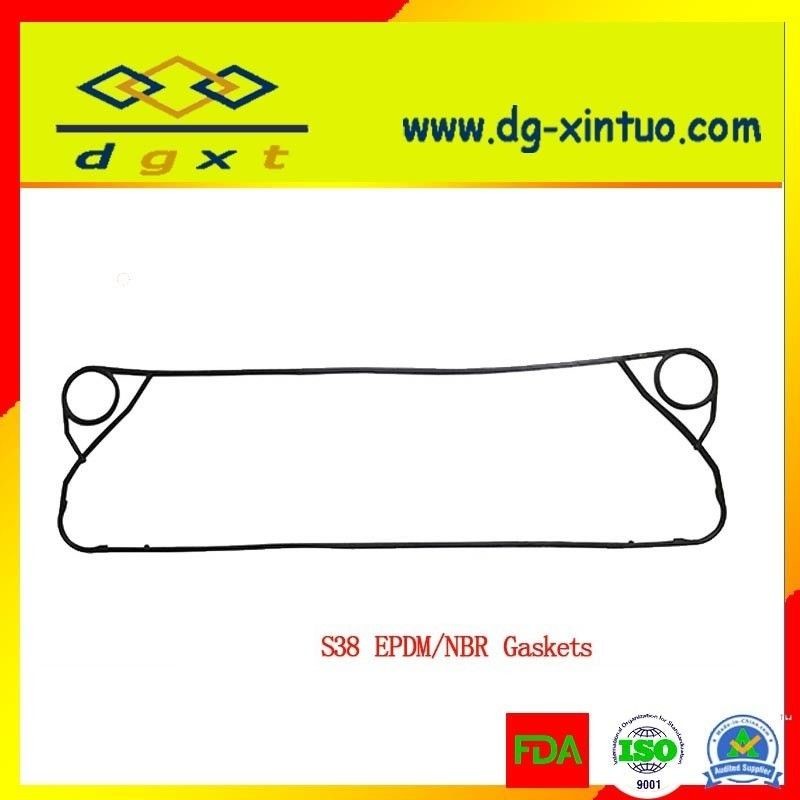

| Model | S121 | S30 | S35 | S37 Sonderlock | S38 Sondersnap | S39 |
| HC=mm | 480 | 202 | 283 | 238 | 202 | |
| VC=mm | 1490 | 950 | 800 | 1441 | 1150 | |

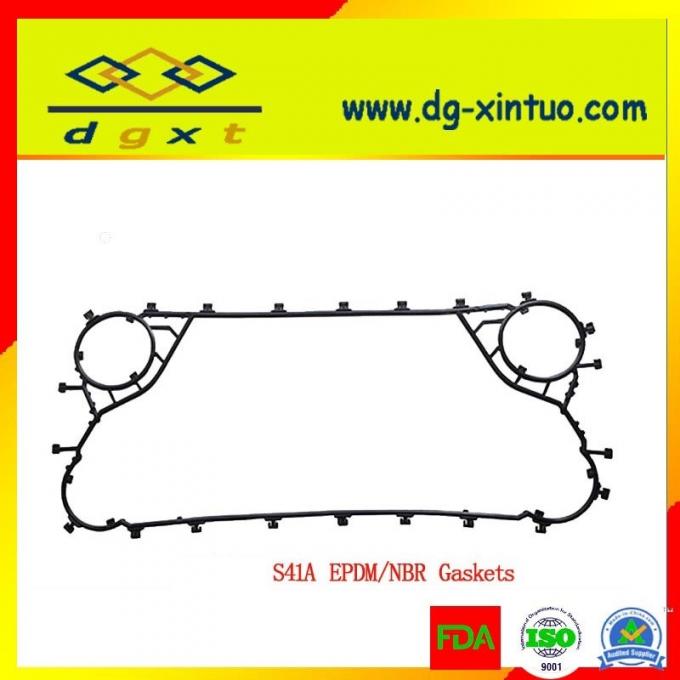

| Model | S41 | S41A | S43 Sonderlock | S47 Sonderlock | S50 | S62 Sonderlock |
| HC=mm | 296 | 296 | 395 | 225 | 202 | 296 |
| VC=mm | 890 | 890 | 791 | 1365 | 1450 | 1292 |

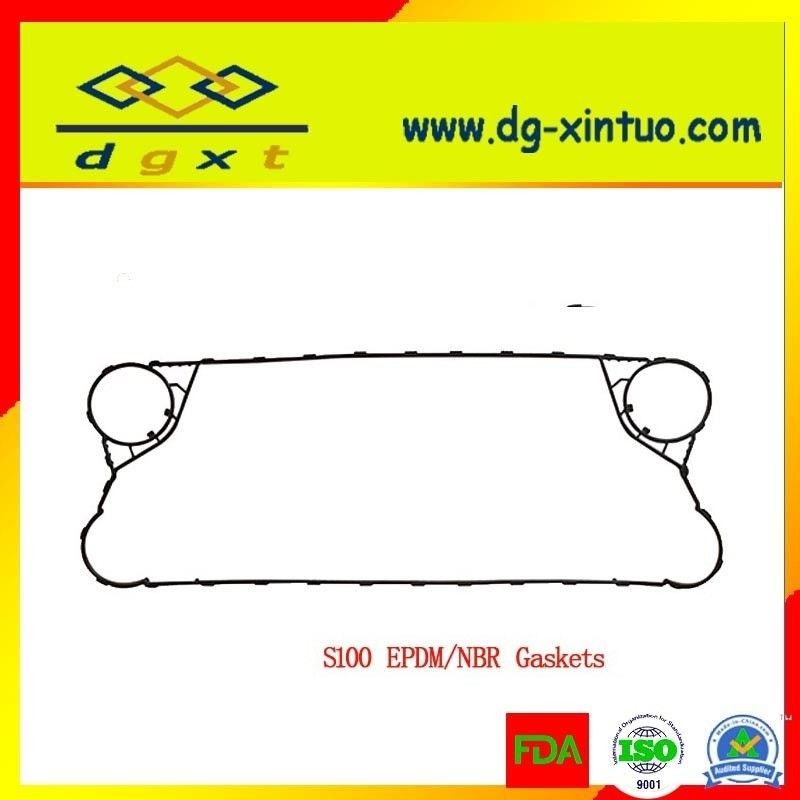

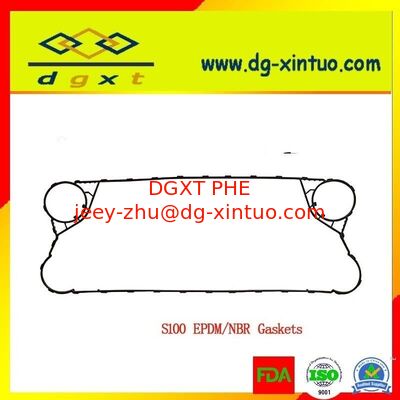

| Model | S64 Sonderlock | S65 | S65 Sonderlock | S81 | S100 Sonderlock | S120 |
| HC=mm | 225 | 395 | 395 | 480 | 395 | 480 |
| VC=mm | 1771 | 1091 | 1091 | 1080 | 1489 | 1490 |
