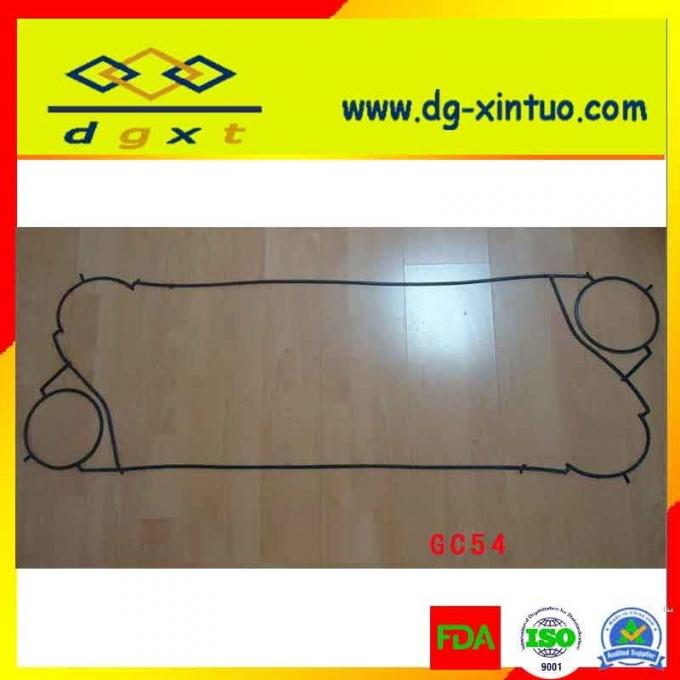

Model NO.: | GC54 | Standard: | Standard |
---|---|---|---|
Specification: | Customized | Origin: | China |
HS Code: | 84195000 | Port: | Shanghai, China |
Type: | Solid Core Sealing Strip | Sectional Shape: | Rectangle |
Performance: | Temperature | Vulcanization: | Continuous Vulcanization |
After-sale Service: | Online Support |

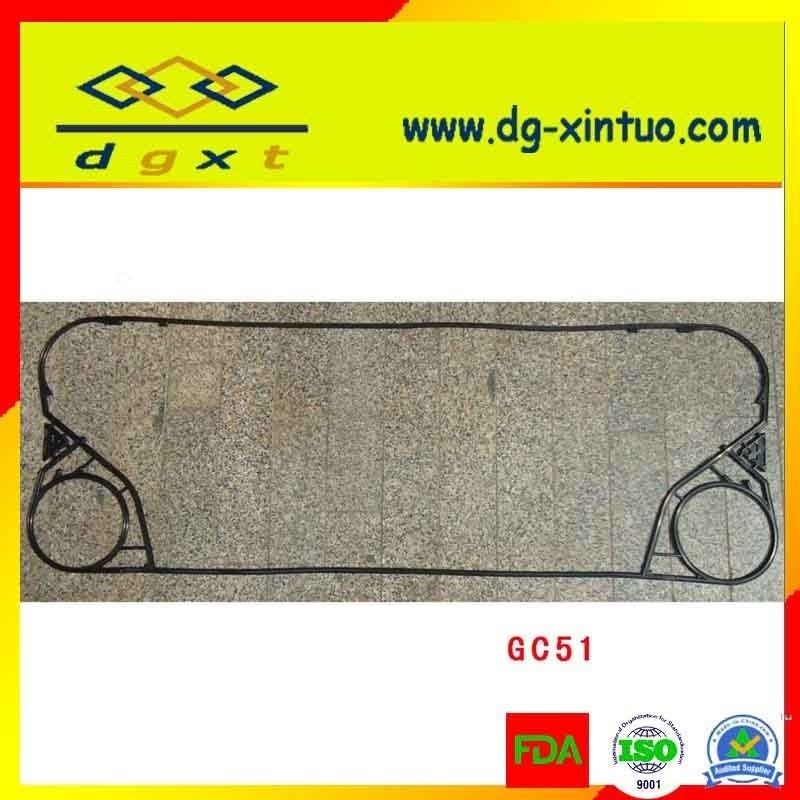

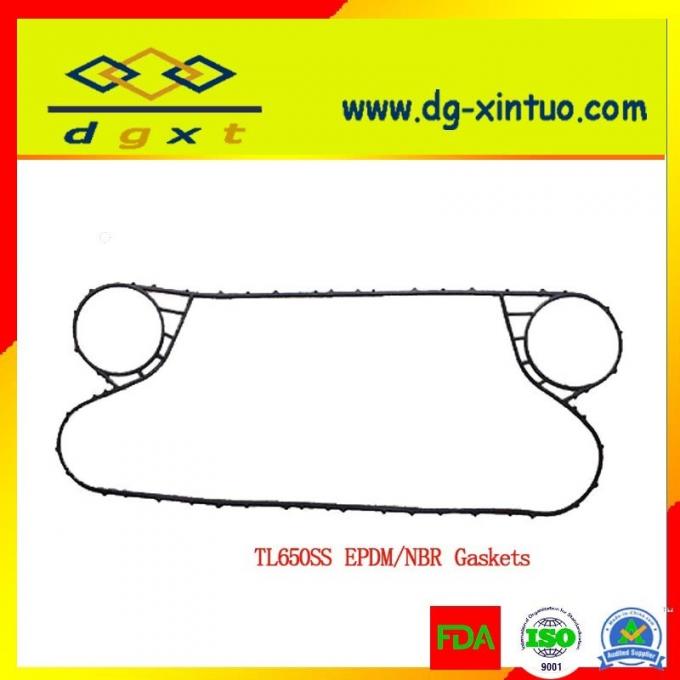

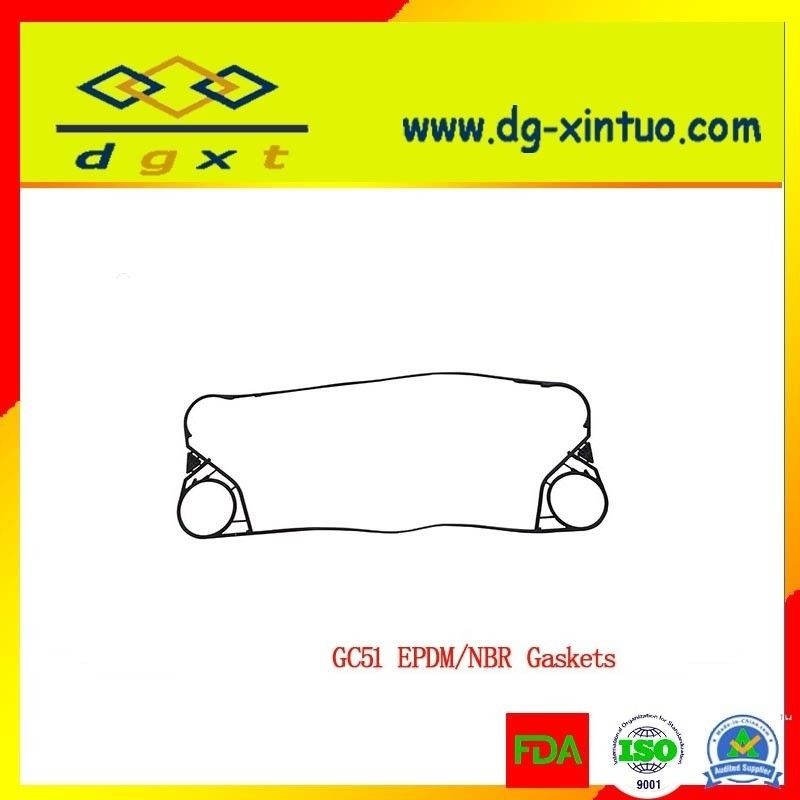

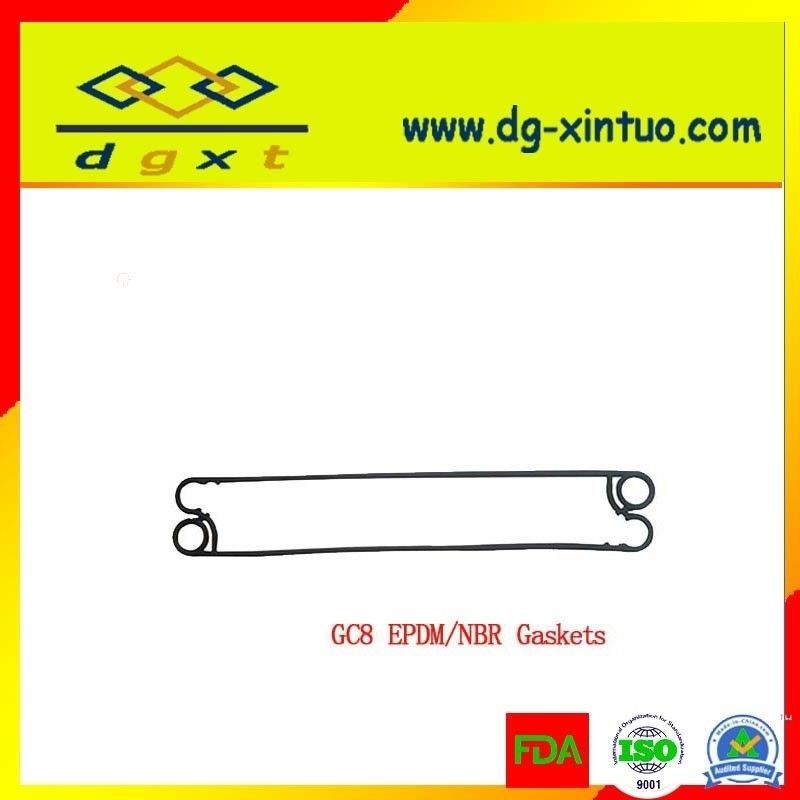

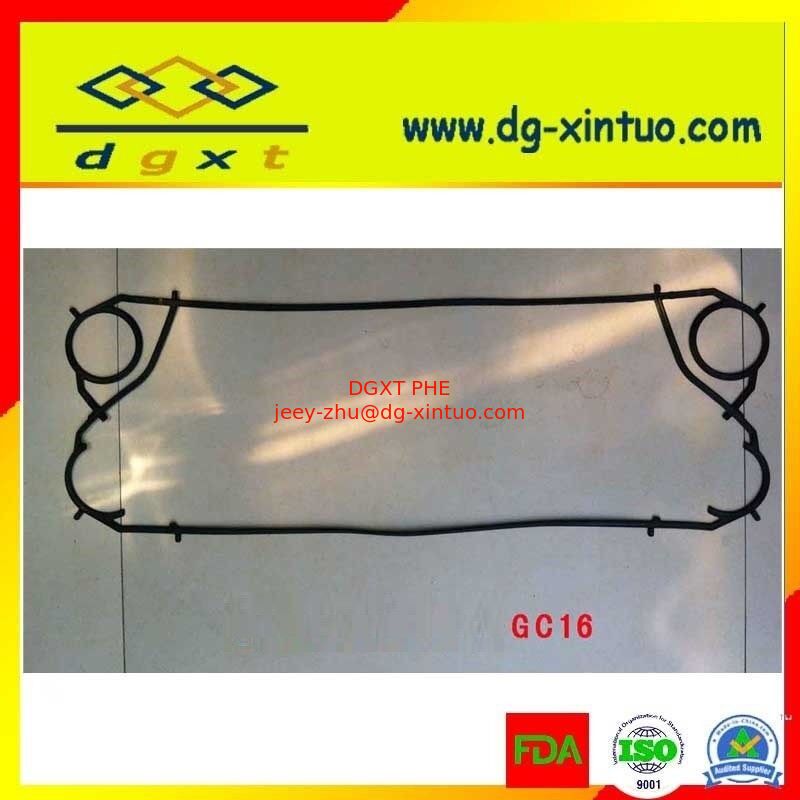

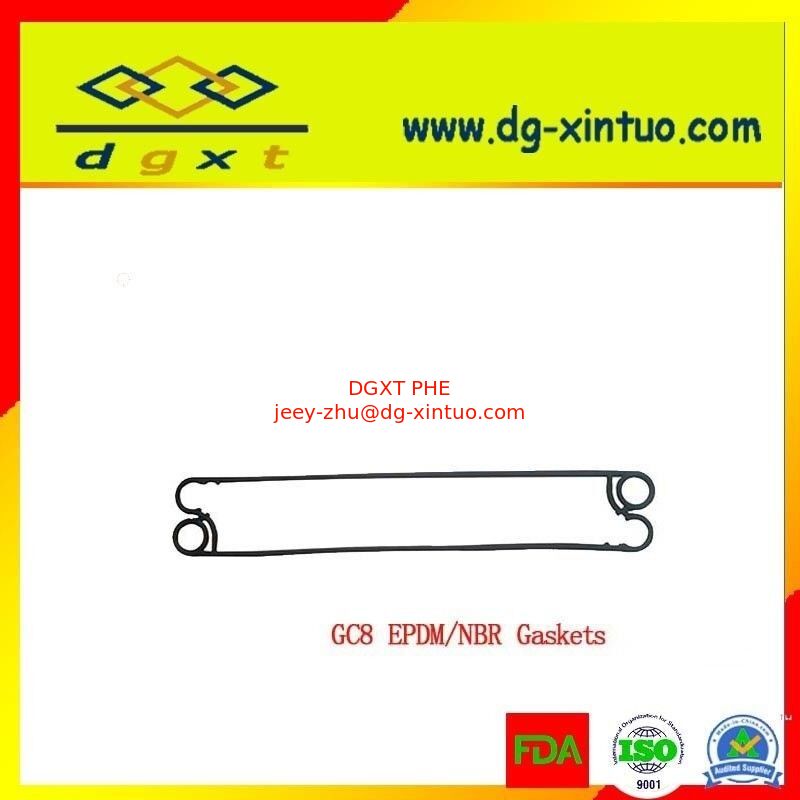

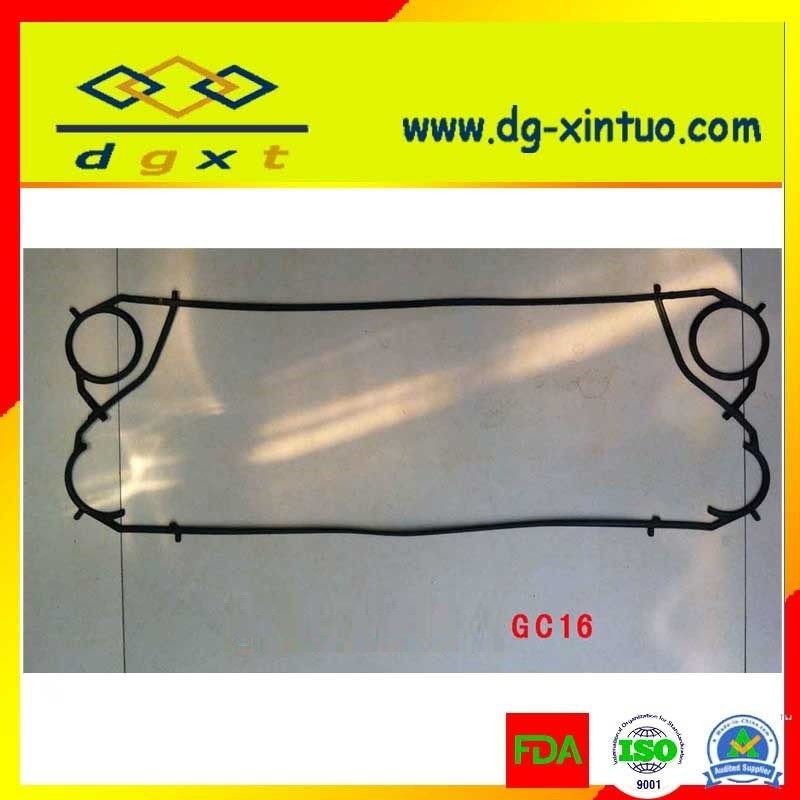

The sealing gasket are pasted on the corrugated plates. They are designed into 2-pass seal structure with signal holes.When the media leaks from the 1st sealing,if comes out from the signal hole. You will find out problems earlier and the deal with them. No media mixing up occures, and it do not let the medias mixed. The seal gaskets are made by different kinds of rubber adapted to different medias and operating temperature.
Heat Exchanger Plates and Gaskets
Heat Exchanger Plate Gasket | ||||||
S4A | S16B | S22 | S43A | S81 | S86 | S65 Glue Type |
S8A | S9A | S37 | S43 | S121 | S110 | S100 Glue Type |
S7A | S19A | S41 | S65 | S188 | S113G | S130 Glue Type |
S14A | S31A | S41A | S100 | S81 | S201G | SFD13 |
S20A | S17 | S42 | S100 | S121 | SF123 | SFD22 |
S7Glue | S21 | S63 | S47 | S188 | SF160 | SFD23 |
S20Glue | S21A | S43H | S64 | S62 | S43 Glue Type | SFD35 |
FP04 | FP16 | FP31 | FP60 | FP112 | FP205 | FP41 |
FP08 | FP22 | FP40 | FP80 | FP405 | FP82 | FP130 |
FP05 | FP14 | FP50 | FP42 | FP70 | FP10 | FP100 |
FP09 | FP20 | FP71 | FP62 | FP100 | ||
T4 | Q030E | A085 | M060 | SR6AG | B134 | TR9GN |
H12 | Q055E | A145 | M092 | R8GI | B158 | TR9GL |
H12 Water Generator | Q080E | J060 | M107 | SR9 | B205 | K34 |
H17 | Q030D | J092 | SR2 | R10 | P105 | K55 |
N25 | Q055D | J107 | SR3 | R14 | P190 | K71 |
N35 | Q080D | J154 | R5 | B063 | TR9AL | TR9AV |
N50 | A055 | J185 | SR6GL | B110 | TR9AV | |
VT04 | VT405P | NT50M | NT250S | VT20P | VT80(M) | NT100X |
VT10 | AT405 | NT50X | NT250M | VT40 | VT2508 | NT150L |
VT20 | VT405 | NT100T | NT250L | VT40(M) | NT50T | NT150S |
VT205 | VT80 | NT100M | NT350S | NT350M | FA184 | N40 |
V2 | V13 | V45 | V110 | V28 | V100 | V170 |
V4 | V20 | V60 | V130 | V8 | V280 | |
GC008 | GX18 | GX26 | GX51 | GX60 | GX64 | GX85 |
GL13 | GC16 | GX42 | GC51 | GX100 | GX91 | GX145 |
GX12 | GC26 | GC50 | GC60 | GX140 | GX118 | GX205 |
Sigma09 | Sigma27 | Sigma48 | Sigma35 shallow type | Sigma55 | Sigma96 | Sigma136 |
Sigma13 | Sigma36 | Sigma49X(39X) | Sigma25 | Sigma56 | Sigma66 | Sigma156 |
Sigma26 | Sigma37 | Sigma25 shallow type | Sigma35 | Sigma76 | Sigma106 | Sigma90 |
G33 | ||||||
CX70 | UX20 | UX90 | LX00A | LX526A | RX715 | LX30A |
UX07 | UX40 | RX50 | LX10A | UX10A | UX80 | |
TL50P | TL90S | TL400P | TL250P | TL500S | TL650P | TL850S |
TL90P | TL150S | TL200S | TL500P | TL250SSW | LT850P | TL650S |
TL150P | TL200P | TL400S | TL250S | TL500SSW |
Becoming our VIP customers for more plate and gasket models and discounts!
gasket material | NBR:(applicable temperature -15-+120ºC) HNBR: (applicable temperature -15-+140ºC) EPDM: (applicable temperature -25-+150ºC) HEPDM: (applicable temperature -25-+170ºC) Viton/FPM: (applicable temperature -5-+180ºC) NEOPREKE: (applicable temperature -5-+130ºC) VNQ: (applicable temperature -65-+250ºC) |
