| Place of Origin: | China |
|---|---|
| Brand Name: | dgxt |
| Certification: | CE ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Price: | 1000USD |
| Packaging Details: | wooden case |
| Delivery Time: | 8-10 days |
| Payment Terms: | T/T, D/P, Western Union, Paypal |
| Supply Ability: | 1000 per month |
| Trademark: | DGXT | Specification: | Customized |
|---|---|---|---|
| HS Code: | 84195000 | Application: | Heater, Cooler |
| Principle: | Recuperative Heat Exchanger | Style: | Plate Type |
| Material: | Copper | Transport Package: | Wooden Case |
Working principles

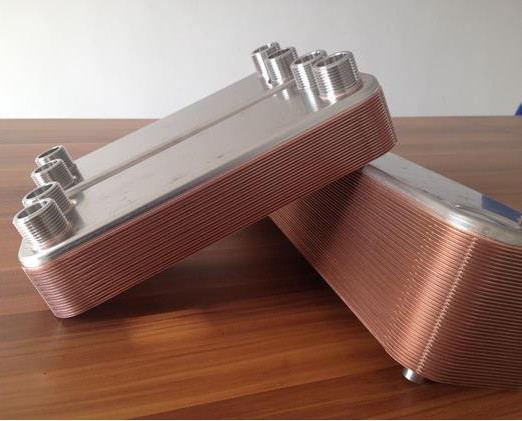

The heating surface consists of thin corrugated metal plates stacked on top of each other. Channels are formed between
the plates and corner ports are arranged so that the two media flow through alternate channels, always in counter-current
flow. The media are kept in the unit by a brazed seal around the edge of the plates. The contact points of the plates are also
brazed to withstand the pressure of the media handled.

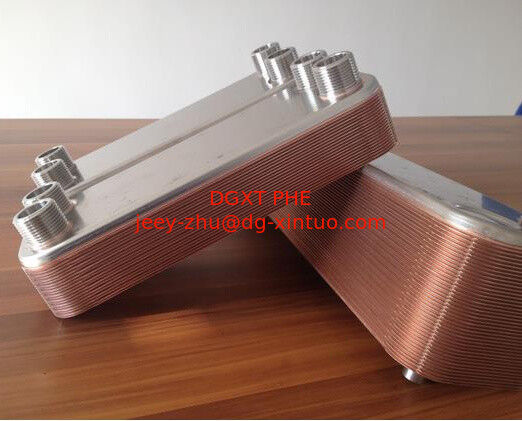

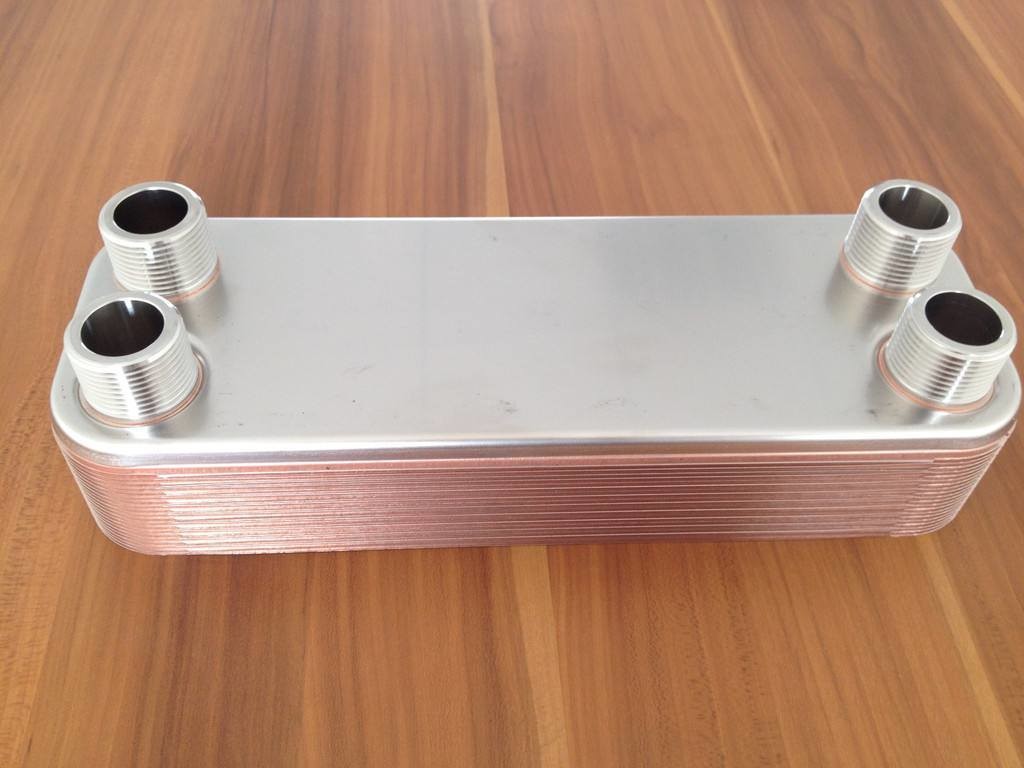

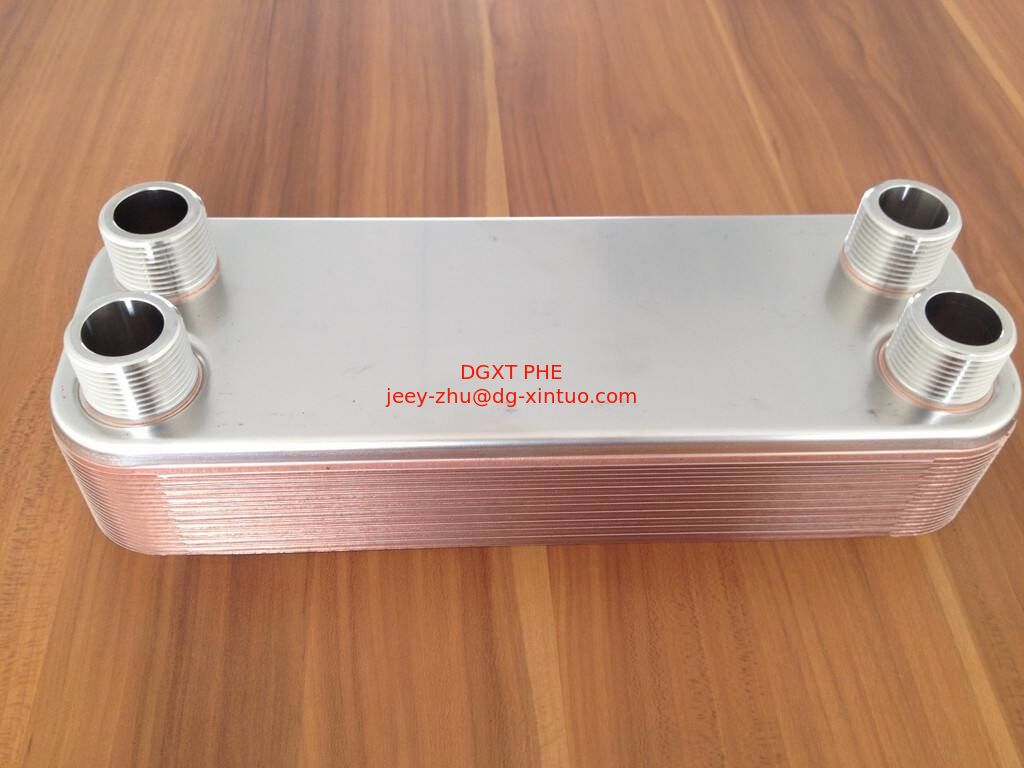

Standard design

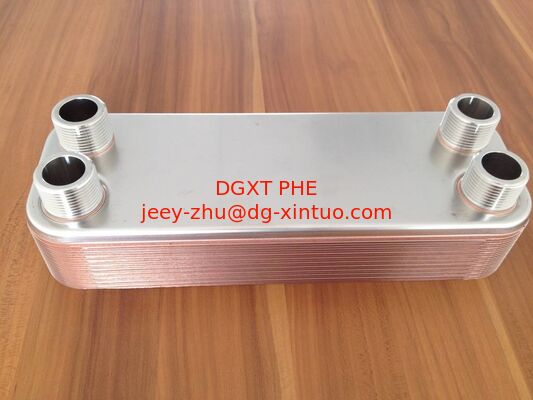

The plate pack is covered by cover plates. Connections are located in the front or rear cover plate. The channel plates are
corrugated to improve heat transfer efficiency and to make them rigid.
Standard materials
Cover plates: Stainless steel AISI 316
Connections: Stainless steel AISI 316
Plates: Stainless steel AISI 316
Brazing material: Copper
Particulars required for quotation
To enable Baode's representative to make a specific quotation, enquiries should be accompanied by the following particulars:
- flow rates or heat load required
- temperature program
- physical properties of liquids in question
- desired working pressure
- maximum permitted pressure drop
