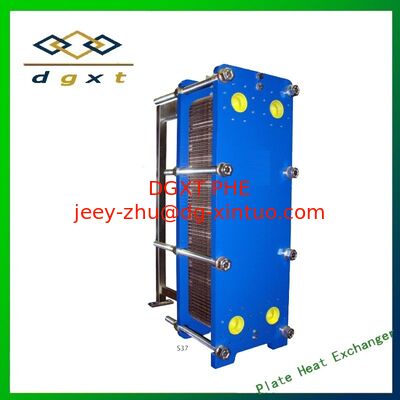

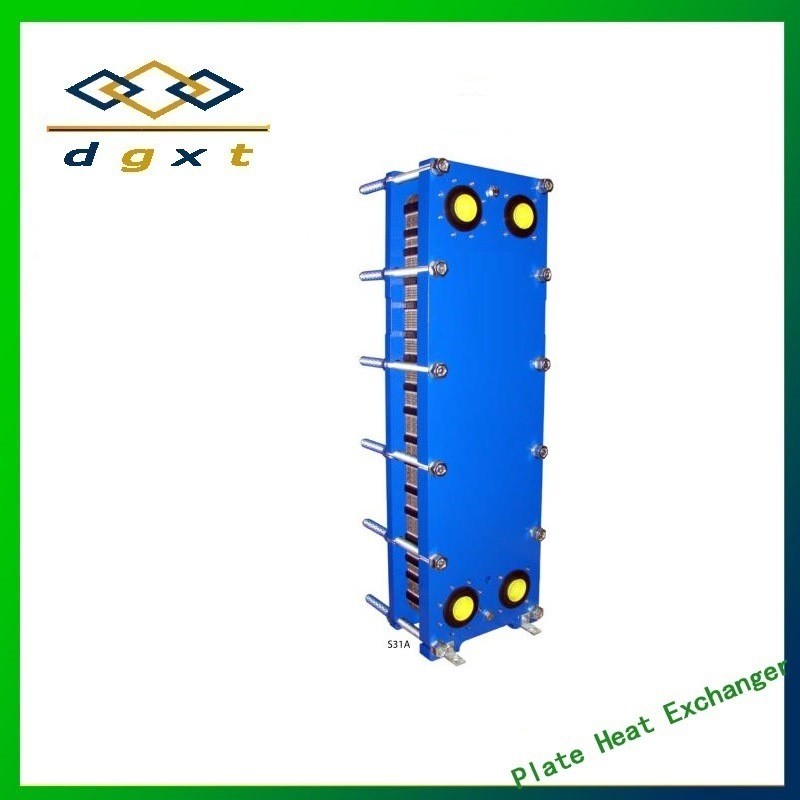

Sondex Plate Heat Exchanger EPDM/HEPDM/NBR/HNBR/Viton for Water Heater/Oil Cooler

Basic Information
Place of Origin: China
Brand Name: DGXT
Certification: FDA CE
Model Number: S113
Minimum Order Quantity: 1
Packaging Details: Wooden Case
Delivery Time: 10-15 Days
Payment Terms: TT
Supply Ability: 100000pieces/Year
Model NO.: S113 Brand: Dgxt
Trademark: DGXT OR OEM Transport Package: Wooden Case
Specification: Customized Origin: China
HS Code: 84195000 Port: Shanghai, China
Production Capacity: 100000pieces/Year Certification: CE, ISO, RoHS, UL
Application: Heater, Cooler Principle: Recuperative Heat Exchanger
Style: Plate Type Material: Stainless Steel
After-sale Service: Online Support

Plate and frame gasket phe heat exchanger in water heater, Oil Cooler

Frame: carbon steel Q235B
Nozzles: Metal lined AISI304,EPDM sleeve
Standard nozzle: ASME standard
Plates material:AISI316,AISI304,Titan,C276(Hastealloy),Ni
Plate Thickness:0.5/0.6/0.7mm

Gasket type:glued type,stud type or clip on type
Gasket material:EPDM,HEPDM,NBR,HNBR,Viton(FKM)

Lead time:10-15 days
Packing size:wooden case


Plate material Applicable fluids
Stainless steel(SU304.316 ect) Clean water, river water, edible oil, mineral oil
Stainless steel & Ti, Ti-Pd Sea water, salty water,salt compounds
20Cr, 18Ni,SMO Dilute sulfuric acid,Water solution of salt matter,
Inorganic solution
Nickel High temperature and high concentration of caustic soda
Hastelloy Concentrated sulfuric acid,Hydrochloric acid, Phosphoric acid
Sealing material: adapt temperature Suitable for fluid
NBR -15~+120ºC Water, sea water, cooking oil, salt water
HNBR -15~+140ºC High temperature mineral oil, high temperature water
EPDM -25~+170ºC Hot water, water vapor, acid, alkali
Viton -5~+130ºC

Acid, alkali, fluid


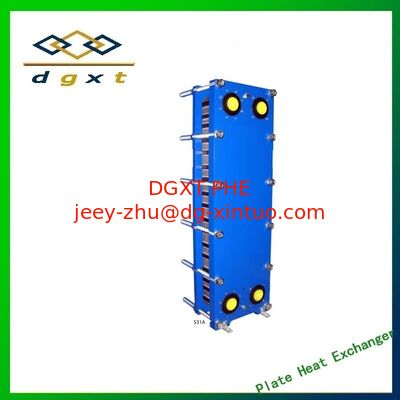

Plate and frame gasket phe heat exchanger in water heater, Oil Cooler

Function of a Plate Heat Exchanger
A plate Heat Exchanger is a unit which transfers heat continuously from one media to another media without adding energy to the process. The basic concept of a plate and frame Heat Exchanger is two liquids flowing on either side of a thin corrugated metal plate so heat may be easily transferred between the two.
The plates are compressed by means of tie bolts between a stationary frame part (called the head) and a movable frame part (called the follower).
The plate Heat Exchanger efficiency requires less floor space compared to other types of Heat Transfer equipment and is lighter in weight.

Design of a Plate Heat Exchanger
The plate Heat Exchanger is designed with either single-pass or multi-pass flow, depending on the duty. For most duties single-pass is suitable and often the preferred solution as it keeps all connections on the stationary frame part and consequently makes disassembly easier. Multi-Pass however, is required when flow rates are low or when approach temperatures are close. Other factors such as building ceiling height or space limitations for handling of large plates often leads to the decision to use multi-pass and thereby more and smaller plates.
Advanges of Plate Heat Exchangers
Easy to Remove and Clean
Expandable
High Efficiency
Compact Size
Close Approach Temperature
Multiple Duties in a Single Unit
Less Fouling
Lower Costs

Features and benefits
Experience the benefit of an individually customized solution that perfectly matches your requirements and lowers your energy consumption.

High performance for a low pressure drop eliminates unnecessary burdens on your system and optimizes overall system performance.
The design results in a compact solution with a small footprint, simple installation, and easy access for maintenance.

Applications

  • HVAC industry - e.g. district cooling solutions using seawater and groundwater as cooling source - e.g. district heating solutions using, for example, solar and geothermal energy as heating source
  • Marine/offshore industry - e.g. central and lubrication oil cooling
  • Dairy/food/beverage industry - e.g. pasteurization, heat recoveries, and duties that require gentle treatment
  • Sugar industry
  • Biogas industry
  • Pulp and paper industry
  • Heavy industry
  • Mining industry
  • Petrochemical industry
  • Chemical industry - e.g. waste heat recovery from condenser water

D-Series Plate Heat Exchanger Model

Detachable DGXT plate heat exchanger specification
Model Connection  surface/plate Plate QTY QMAX Surface max
  DN m2 No. T/H m2
D-S7 50 0.07 76 40 5
D-S14 50 0.15 427 40 59
D-S17 50/65 0.19 609 40 100
D-S18 50/62.5 0.19 609 65 115
D-S21 100 0.22 698 180 146
D-S22 100 0.26 538 165 118
D-S41 150 0.45 670 380 274
D-S42 150 0.46 532 360 223
D-S62 150 0.68 670 380 415
D-S43 200 0.46 695 700 300
D-S65 200 0.68 695 700     450
D-S100 200 1 695 700 695
D-S130 200 1.3 695 700 900
D-S80 300 0.8 930 1600 744
D-S81 300 0.84 930 1600 750
D-S120 300 1.2 930 1600 1115
D-S188 300 1.88 930 1600 1750
300 1.88 930 1600 2210
D-S250 300 2.51 930 1600 2334
D-S200 500 2.06 930 4000 1860
The Table are Sondex Commonly type Pressure Up to 2.5Mpa
Frame type:IS,IT,FT,IG,FS,FG,IC

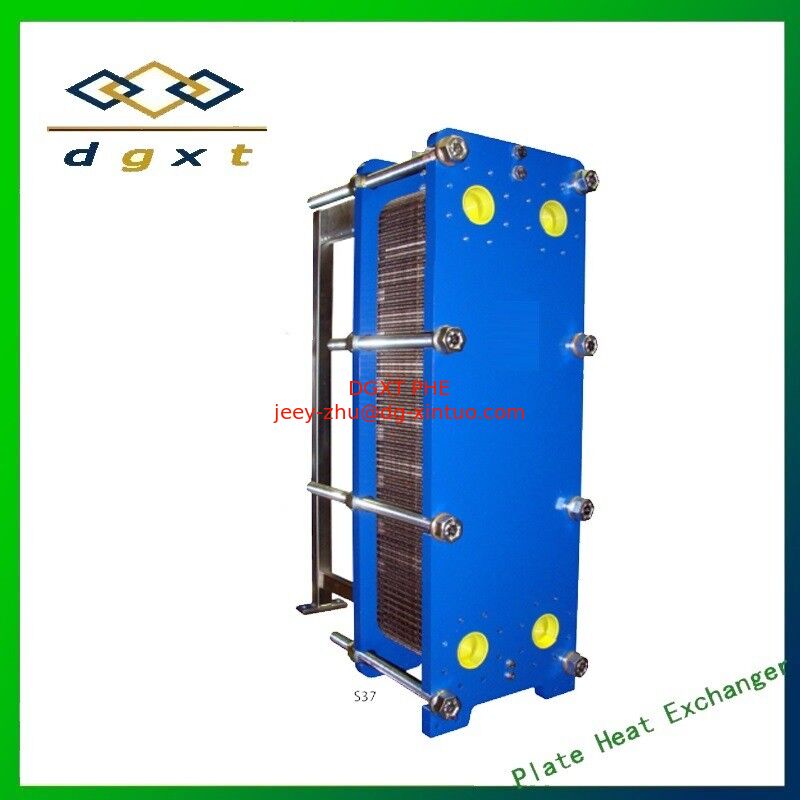

Plate and Frame Gasket Phe Heat Exchanger in Water Heater, Oil Cooler

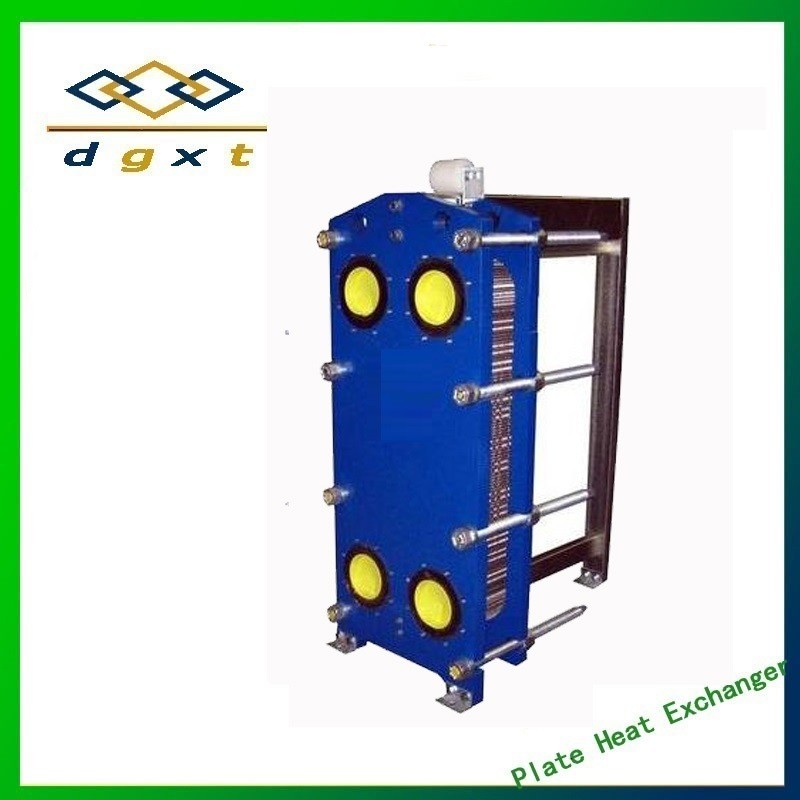

Plate and Frame Gasket Phe Heat Exchanger in Water Heater, Oil Cooler

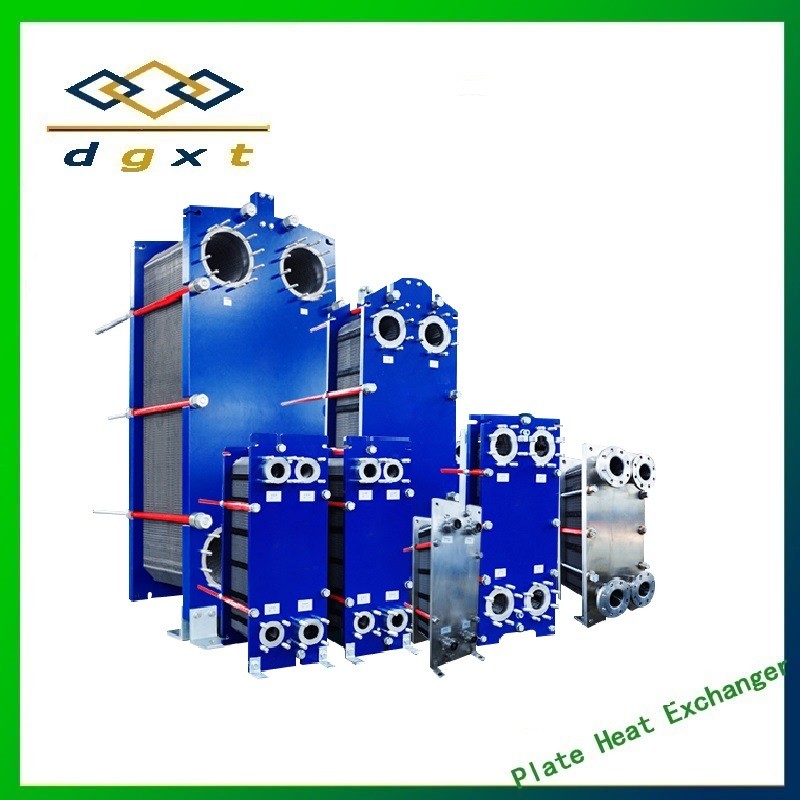

Plate and Frame Gasket Phe Heat Exchanger in Water Heater, Oil Cooler

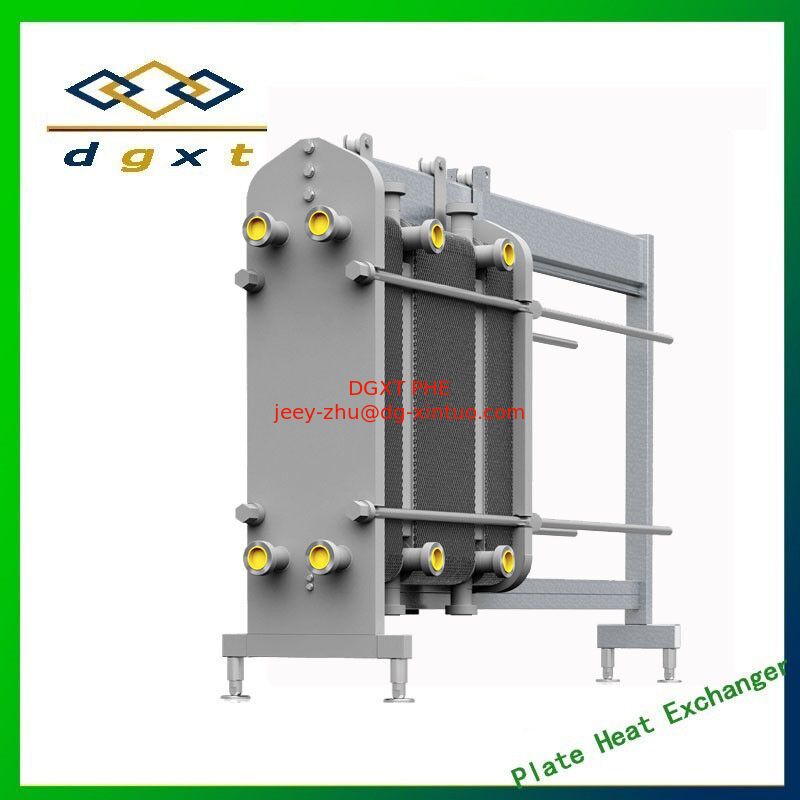

Plate and Frame Gasket Phe Heat Exchanger in Water Heater, Oil Cooler

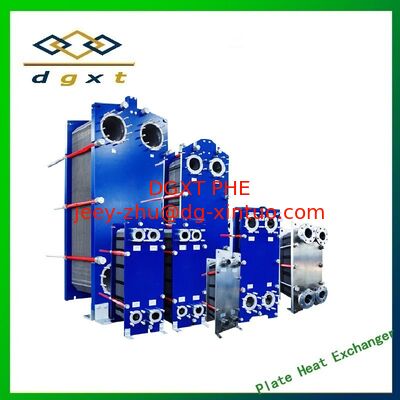

Plate and Frame Gasket Phe Heat Exchanger in Water Heater, Oil Cooler

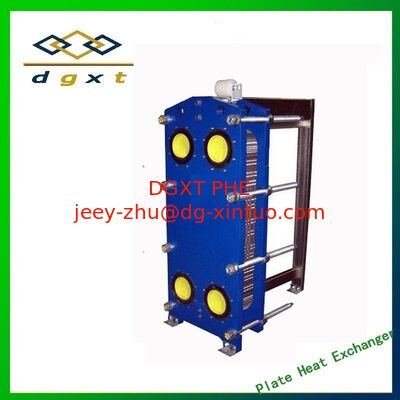

Plate and Frame Gasket Phe Heat Exchanger in Water Heater, Oil Cooler
