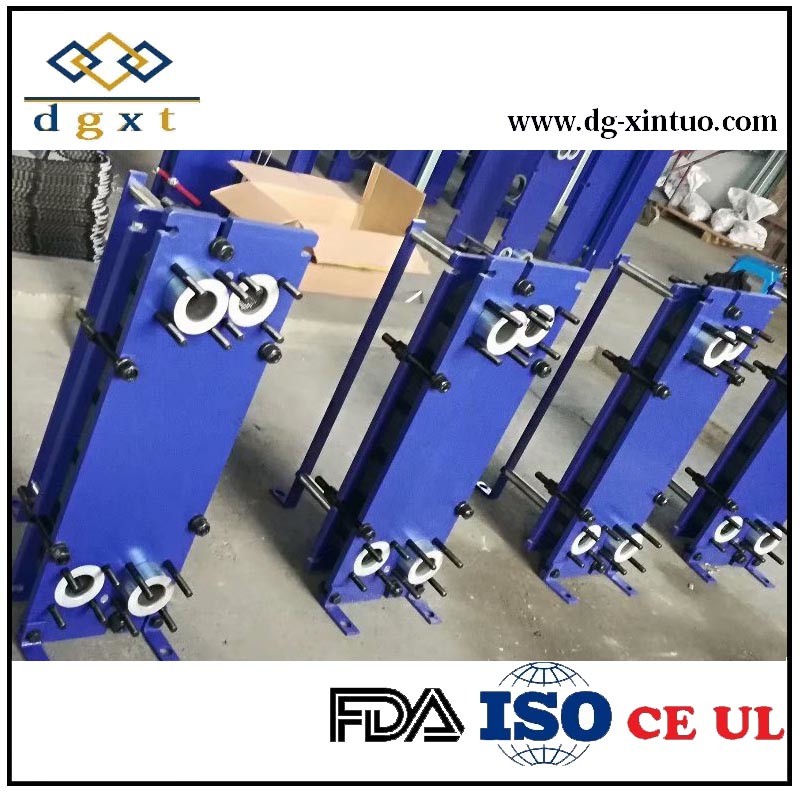

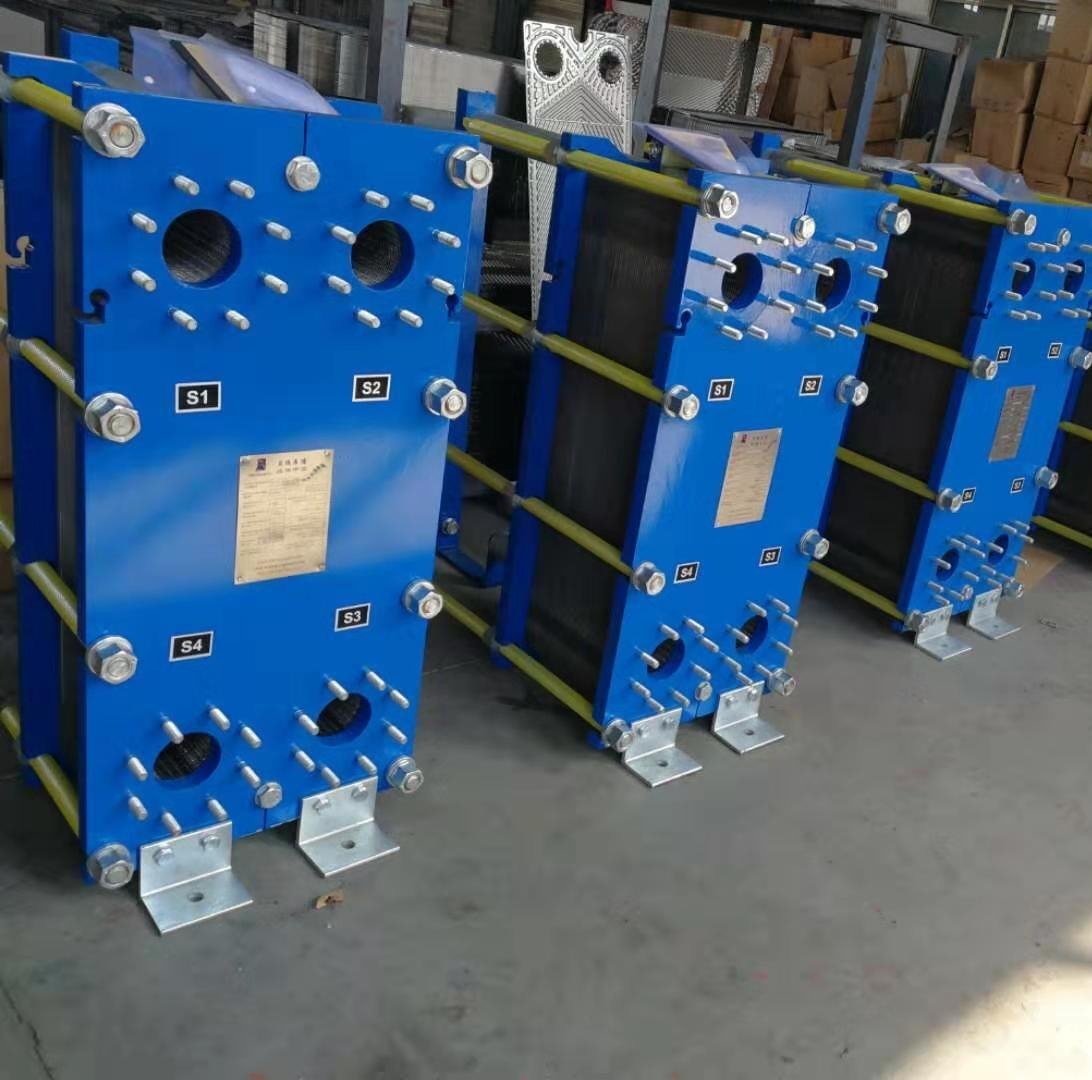

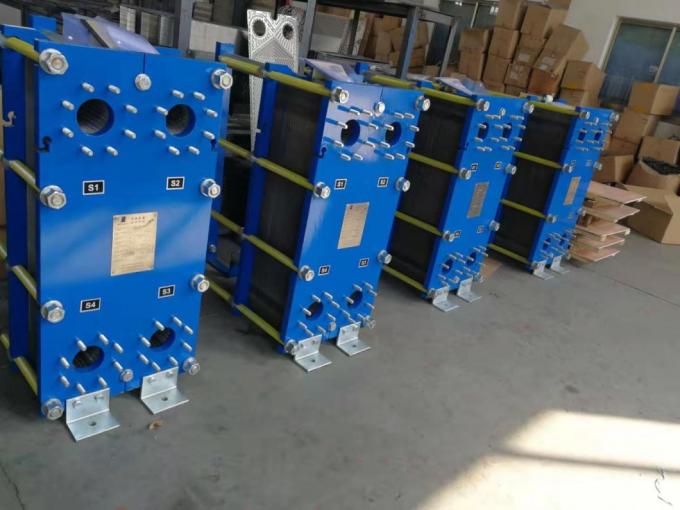

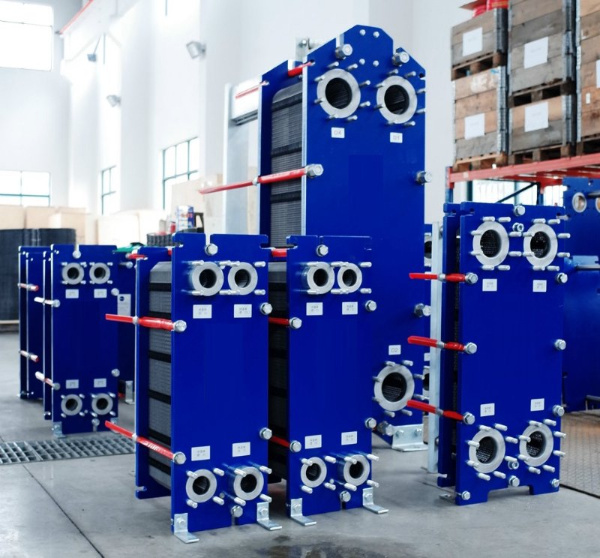

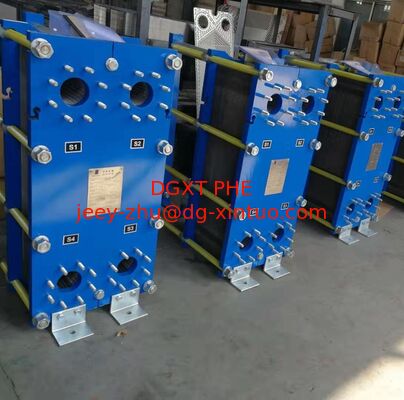

Gasketed Plate and Frame Heat Exchanger, Phe Manufacturer gasketed plate heat exchanger

Basic Information
Place of Origin: China
Brand Name: dgxt
Certification: CE ISO9001 CO FE
Model Number: Customized
Minimum Order Quantity: 1
Price: 1000USD
Packaging Details: wooden case
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, Paypal, Money Gram
Supply Ability: 1000 per month
Model NO.: FP50 Item: Plate Heat Exchanger
Transport Package: Wooden Packing Specification: Customized
Origin: China HS Code: 84195000
Port: Shanghai, China Application: Heater, Cooler
Principle: Recuperative Heat Exchanger Style: Plate Type
Material: Stainless Steel

Gasketed Plate and Frame Heat Exchanger, Phe Manufacturer gasketed plate heat exchanger


A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. This has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids are spread out over the plates.
Gasketed Plate and Frame Heat Exchanger, Phe Manufacturer

Our Advantages:
1.we have more than 500 kinds corrugated plates and Plate gaskets
2.Enough plate and gaskets materials for your choose
3.Factory fast delivery once get your deposit payment.
4.Superior Quality in PHE manufacture feilds
5.Each machine will be tested before Packing

Product material:

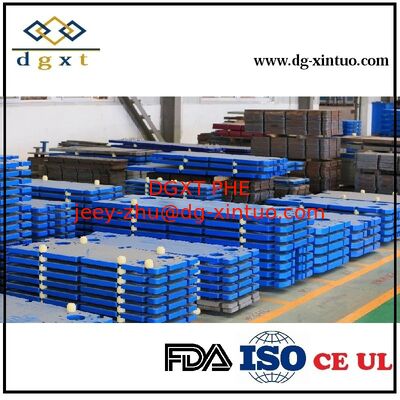

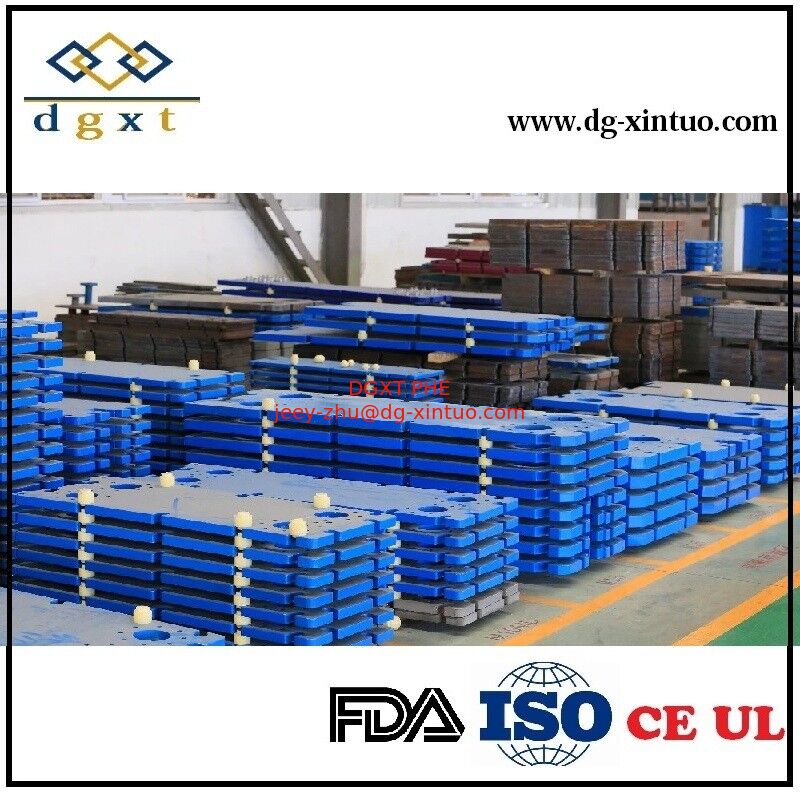

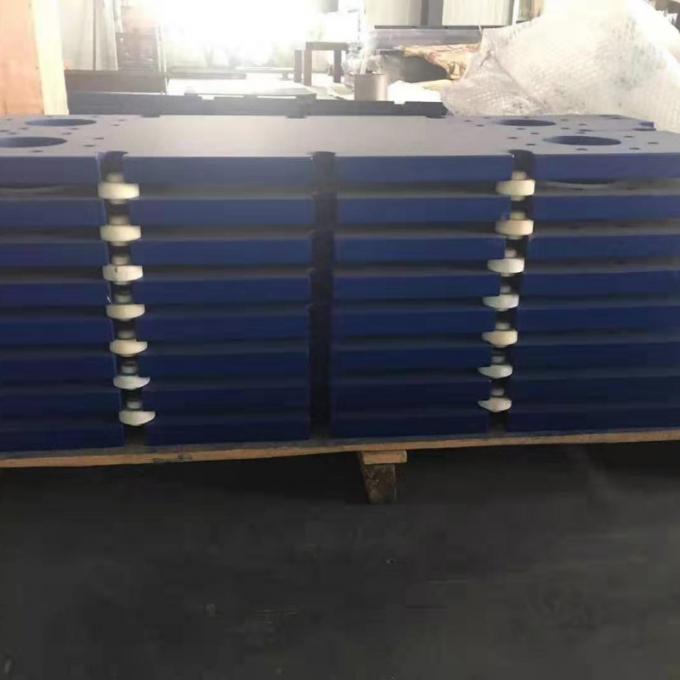

1.Frame material: Q235B carbon steel painted ,carbon inner with Pure stain steel out surface,Pure stain steel

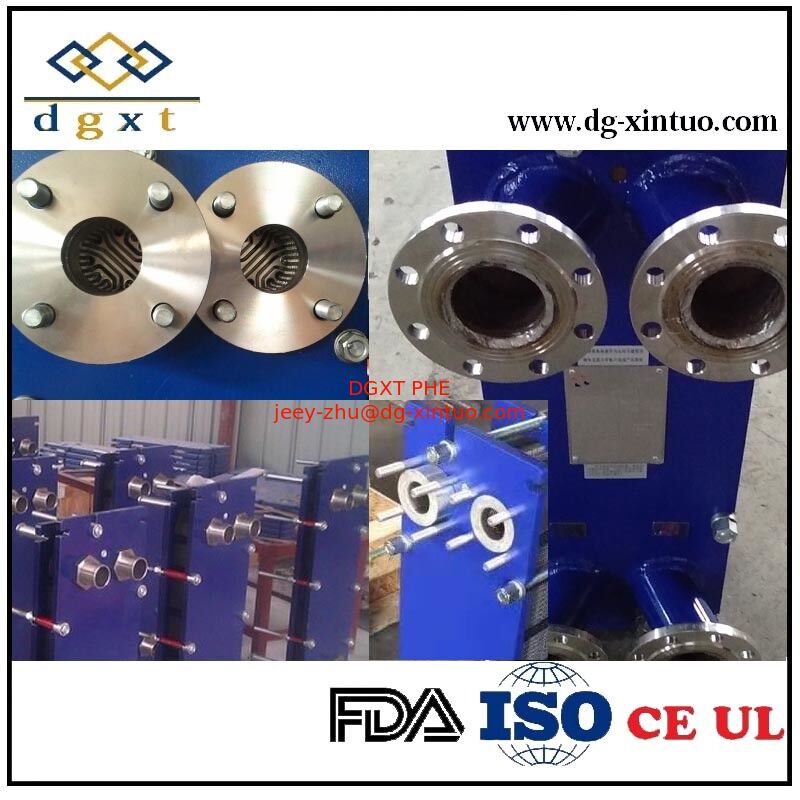

2.Port Material :  stud bolts with lining,Epdm sleeve,
OEM
3.Plate material : stainless steel  AISI304/316/Ti /C276/Hastelloy alloy
4.Gasket material : EPDM,NBR,FPM,FKM,Viton etc
5.Plate Thickness:
0.5/0.6mm/others customized
Gasketed Plate and Frame Heat Exchanger, Phe Manufacturer
Gaskets Material and avaiable temperature.

Chemical name ASTM D-1418-79 Temperature °C Temperature °F
BUTADIENE - ACRILONITRILE NBR STD FOOD - 20 + 120 -4 + 248
BUTADIENE - ACRILONITRILE NBR HT FOOD - 20 + 140 -4 + 284
BUTADIENE - ACRILONITRILE NBR HT IND - 20 + 140 -4 + 284
BUTADIENE - ACRILONITRILE - IDROGENATA H-NBR - 40 + 150 -40 + 302
CLOROPRENE CR - 40 + 100 -40 + 212
ISOBUTILENE - ISOPRENE IIR - 40 + 110 -40 + 230
ETILENE - PROPILENE - DIENE EPDM STD - 40 + 120 -40 + 248
ETILENE - PROPILENE - DIENE EPDM STD FOOD - 40 + 120 -40 + 248
ETILENE - PROPILENE - DIENE EPDM HT FOOD - 40 + 150 -40 + 302
FLUORURATA FKM "A" STD - 15 + 220 -5 + 428
FLUORURATA FKM "A" FOOD - 15 + 220 -5 + 428
FLUORURATA FKM "GF" - 8 + 200 -17,6 + 392
FLUORURATA FKM "GLT" - 30 + 200 -22 + 392

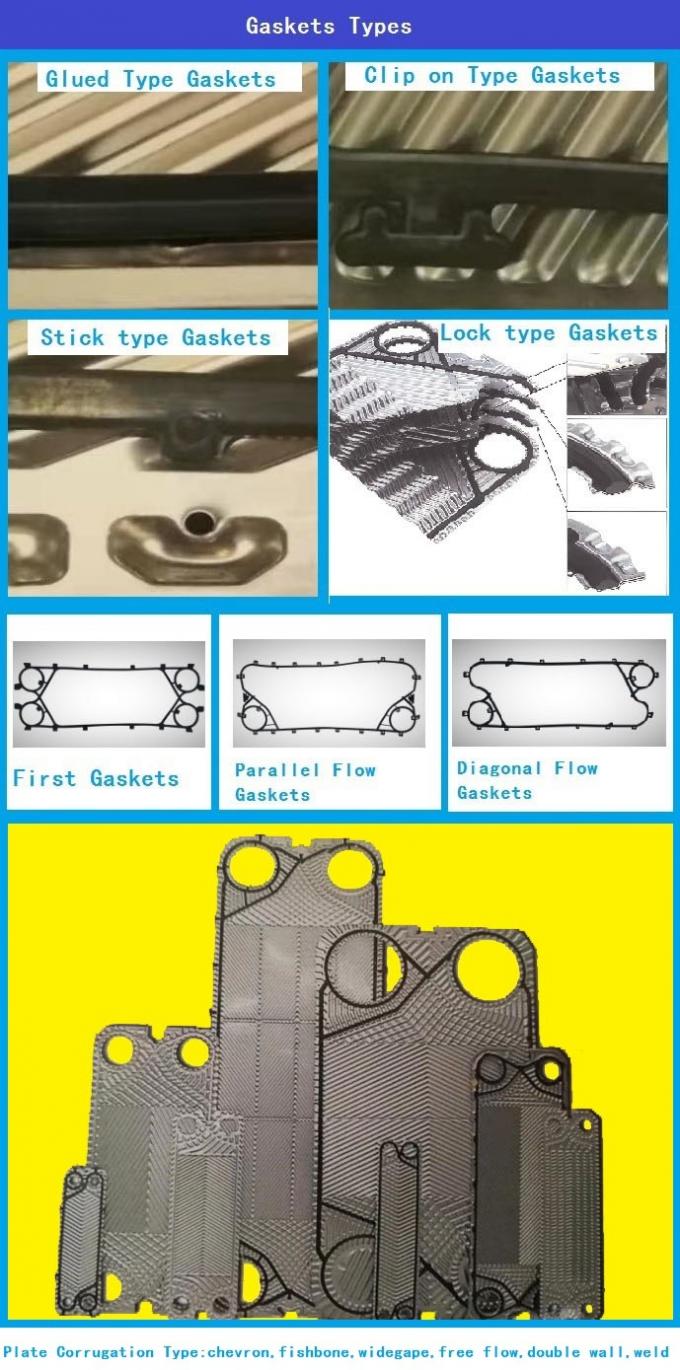

Gaskets Types have many types:Glued on type gaskets,Clip on Type gaskets,
Stick Type Gaskets,Lock type Gaskets.

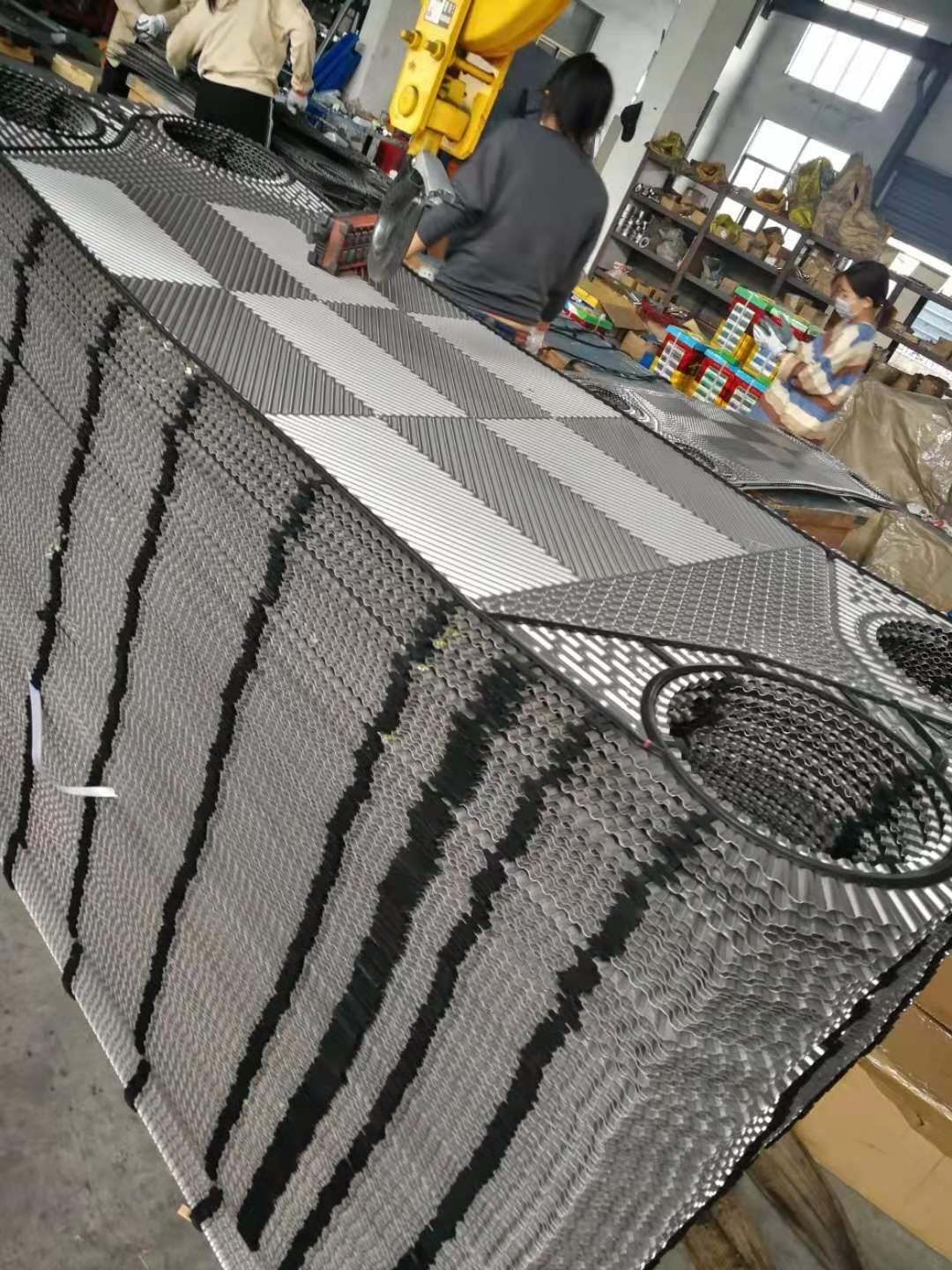

Plate major Types:Chevron, fishbone,widegapes,free flow type plates
The plate heat exchanger can have single and multipass ,most are single pass,can devided into parallel and cross flow plate heat exchanger.
Plate Heat exchanger Material Warm Tips:
Plate material Applicable fluids
Stainless steel(SU304.316 ect) Clean water, river water, edible oil, mineral oil
Stainless steel & Ti, Ti-Pd Sea water, salty water,salt compounds
20Cr, 18Ni,SMO Dilute sulfuric acid,Water solution of salt matter,
Inorganic solution
Nickel High temperature and high concentration of caustic soda
Hastelloy Concentrated sulfuric acid,Hydrochloric acid, Phosphoric acid
Sealing material: adapt temperature Suitable for fluid
NBR -15~+120ºC Water, sea water, cooking oil, salt water
HNBR -15~+140ºC High temperature mineral oil, high temperature water
EPDM -25~+170ºC Hot water, water vapor, acid, alkali
Viton -5~+130ºC

Acid, alkali, fluid


Gasketed Plate and Frame Heat Exchanger, Phe Manufacturer



Gasketed Plate and Frame Heat Exchanger, Phe Manufacturer
Gasketed Plate and Frame Heat Exchanger, Phe Manufacturer
Gasketed Plate and Frame Heat Exchanger, Phe Manufacturer gasketed plate heat exchanger 5Gasketed Plate and Frame Heat Exchanger, Phe Manufacturer gasketed plate heat exchanger 6Gasketed Plate and Frame Heat Exchanger, Phe Manufacturer gasketed plate heat exchanger 7

 Welcome To inquiry us at any time!
