Factory Promotional Product Heat Exchanger Plate For Gasket Plate Heat Exchanger

Basic Information
Place of Origin: China
Brand Name: DGXT
Certification: CE ISO9001 CO FE
Model Number: customized
Minimum Order Quantity: 1
Price: $3/set
Packaging Details: wooden case
Delivery Time: 8-10 days
Payment Terms: T/T, Western Union, Paypal, Money Gram
Supply Ability: 10000 per month
Gaskets Material: NBR/EPDM/Viton-a/Viton-G HS Code: 84195000
Port: Shanghai, China Performance: Pressure Resistant, Temperature Resistant, Corrosion Resistant
Material: Stainless Steel Plate Material: 304/316/Titanium /254 Smo/Alloy C-276/904L OEM Wel

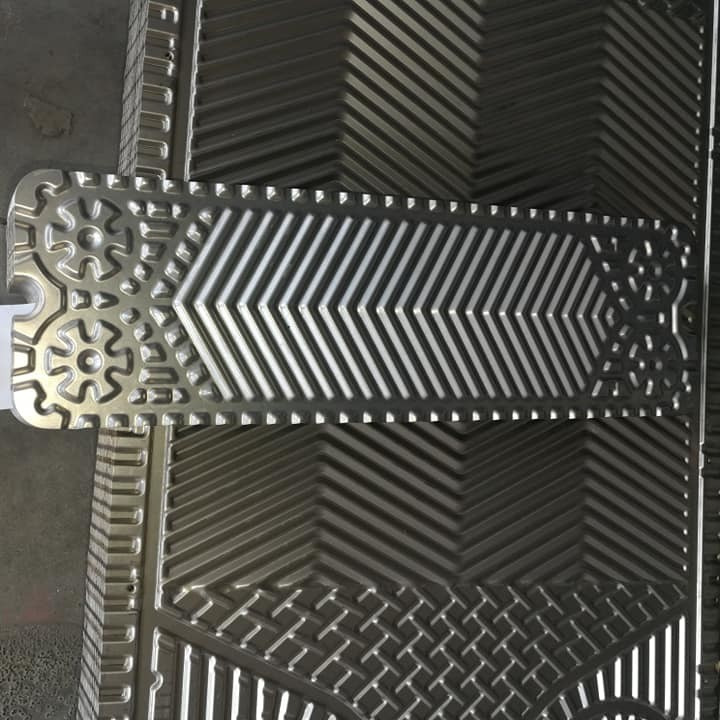

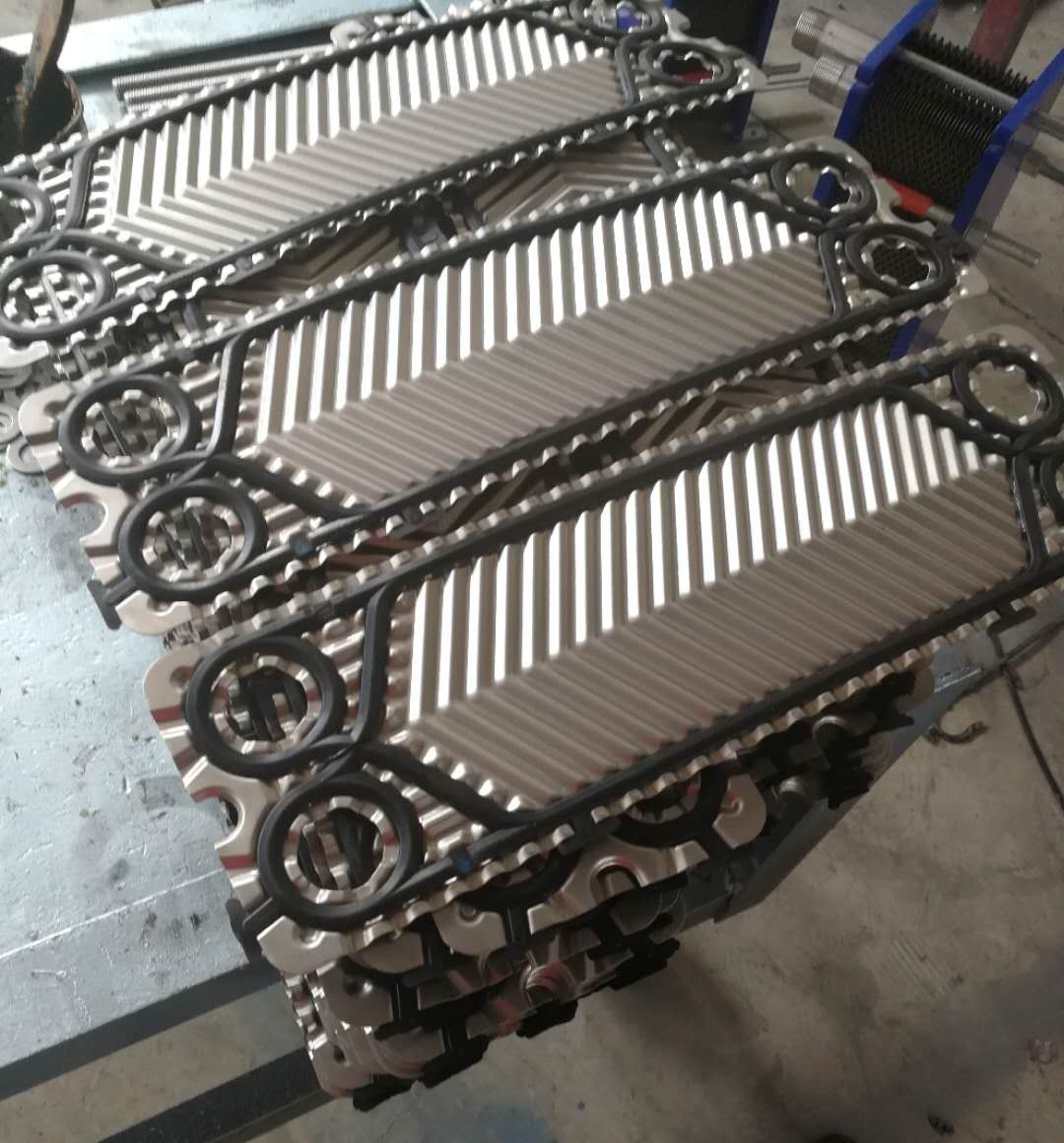

Gasket plate  Heat Exchanger flow/channel/end Plate


1.Metal material:304/316/Titanium /254 SMO/Alloy C-276/904L oem welcome
2.
Gaskets:Nitrile- EPDM- FKM
3. High effectient heating and Cooler
Heat Exchanger Plate Material Choose reference:

Plate matrial Adapt Liquid
Stainless steel(304,316) Pure water,stem water,Edible oil,mineral oil
(Ti,Ti-Pa) Sea water,Salt water,Salt compounds
20Cr,18Ni,6Mo(2455Mo) Dilute sulfuric acid, dilute sulfate, organic water solution
(Ni) High Temperature and High Concentration Caustic Sodium
HASTELLOY(C276,D25,B2G) Concentrated sulfuric acid, hydrochloric acid and phosphoric acid

Heat Exchanger Plate gaskets Material Choose reference:
Sealing material: adapt temperature Suitable for fluid
NBR -15~+120ºC Water, sea water, cooking oil, salt water
HNBR -15~+140ºC High temperature mineral oil, high temperature water
EPDM -25~+170ºC Hot water, water vapor, acid, alkali
Viton -5~+130ºC

Acid, alkali, fluid

Plate Heat Exchanger Material:

Plate matrial Adapt Liquid
Stainless steel(304,316) Pure water,stem water,Edible oil,mineral oil
钛及钛钯(Ti,Ti-Pa) Sea water,Salt water,Salt compounds
20Cr,18Ni,6Mo(2455Mo) Dilute sulfuric acid, dilute sulfate, organic water solution
镍(Ni) High Temperature and High Concentration Caustic Sodium
HASTELLOY合金(C276,D25,B2G) Concentrated sulfuric acid, hydrochloric acid and phosphoric acid



Product Description
* We strictly enforce the requirements of ISO9000 and strictly control every aspect of production, so that each Gasket has can be traced back.
* Perfect product needs perfect material,strictly control the production and strict delivery inspection.
* FDA standards.
* Years of experience in OEM and aftermarket



The basic performance of gasket
Material Max Use
Temperature
Hardness Application Media
NBR 110ºC 76±2 alkanes,alaenes and other non-polar media;
fuel oil and other mineral oil; animal and vegetable oils;
hot water,salt water,etc
H-NBR 140ºC 76±2
NBR-HT 130ºC 76±2
EPDM 150ºC 80±2 water,steam,atmospheric,ozone;
non-petroeum-based lubricants; weak acid,
weak base,ketones,alcohols,polar medium,etc
EPDM-HT 170ºC 80±2
VITON A 180ºC 80±2 hot oil, acid,alkali,organic solvent
VITON G 200ºC 80±2 strong acid and alkali,hot oil,saturated steam

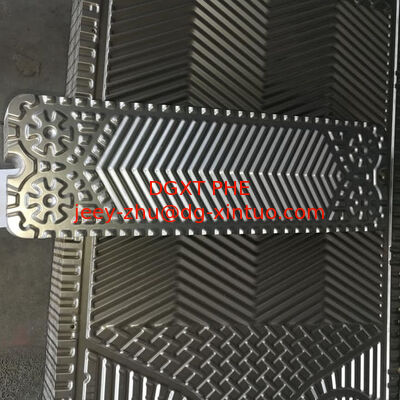

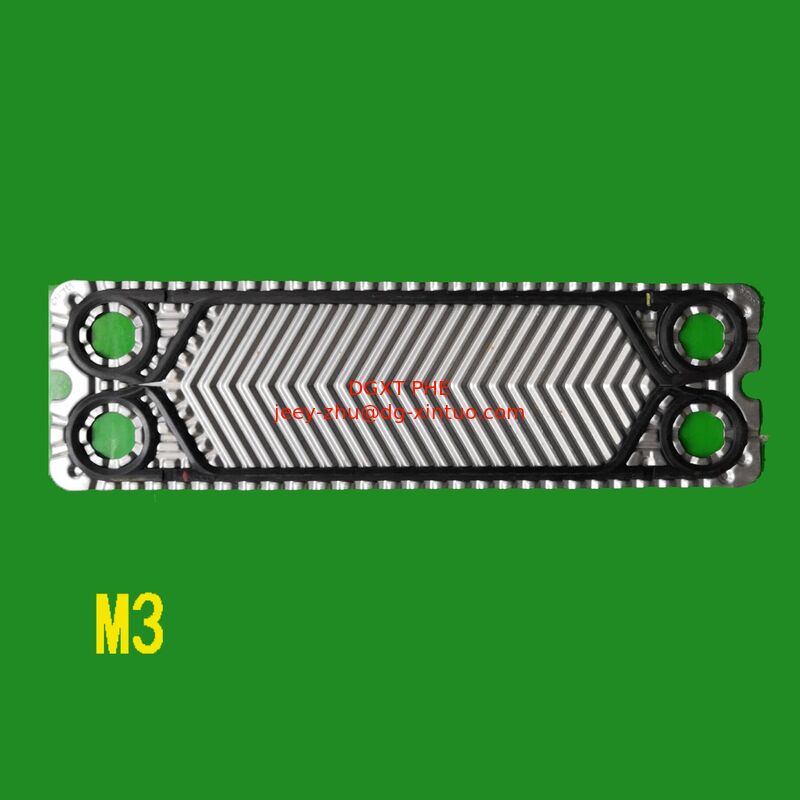

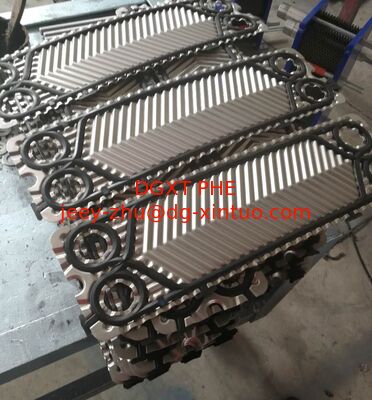

Factory Promotional Product Heat Exchanger Plate For Gasket Plate Heat Exchanger 0Factory Promotional Product Heat Exchanger Plate For Gasket Plate Heat Exchanger 1Factory Promotional Product Heat Exchanger Plate For Gasket Plate Heat Exchanger 2Factory Promotional Product Heat Exchanger Plate For Gasket Plate Heat Exchanger 3Factory Promotional Product Heat Exchanger Plate For Gasket Plate Heat Exchanger 4
