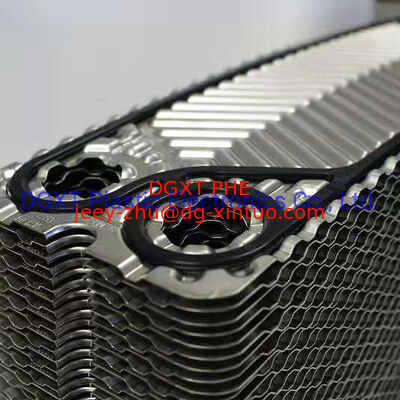

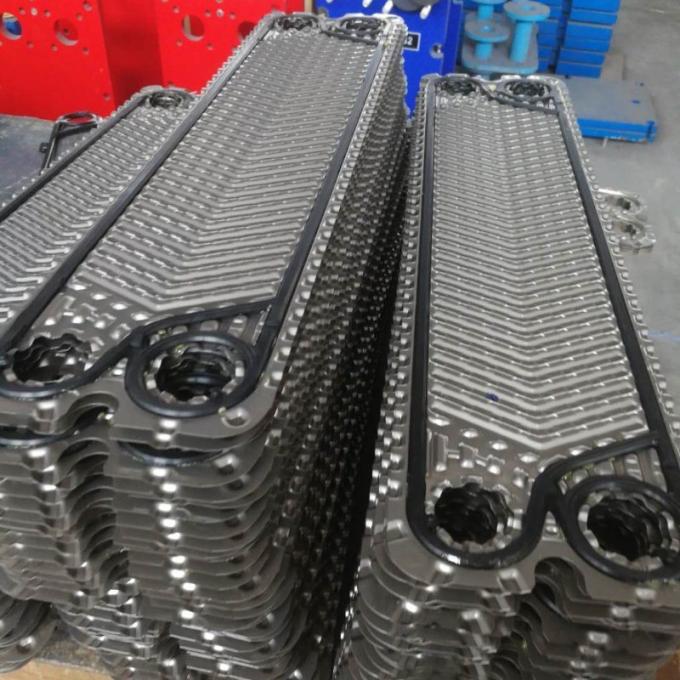

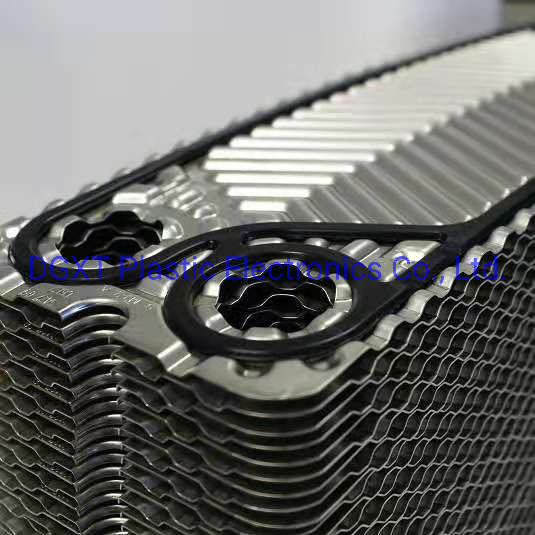

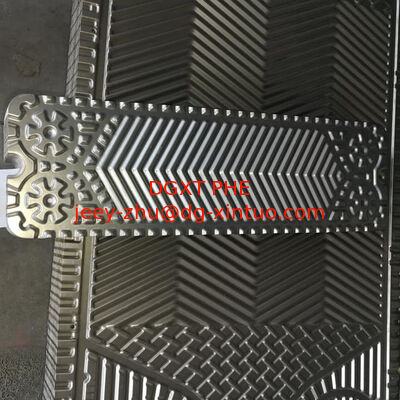

Item: | Flow Plate With Gasket | Product Size:: | 357*60/429*125mm |
---|---|---|---|
Material: | Stainless Steel 316/0.5+EPDM | Export: | Europe,Asia,North America,South America Etc |
Weight: | 15kg Per 35pcs After Packing | Packing Terms: | Wooden Case |
Size: | 100% Completed Same With Orignal M3 | Origin: | China |
HS Code: | 841950 | Port: | Shanghai, China |
Certification: | CE, ISO, UL | Sectional Shape: | Rectangle |
Performance: | 1.0 Bar/1.3 Bar Pressure Resistant, Temperature Resistant, Corrosion Resistant | Ship Cost: | $6.6/KG |
Application: | Spares Of M3 Heat Exhanger |
Other about Heat Exchanger Spares Specification:
Material of Plate | Suited Liquid Kinds | ||
Stainless Steel (AISI304.316 Etc) | Pure Water, Normal Water, Oil for eating, Mineral Oil | ||
Ti, Ti-pd | Sea Water, Saline Water, Mineral Water | ||
20Cr, 18Ni, 6Mo (254SMO) | Dilute Sulphuric Acid, Organic Water Solution | ||
Ni | High-temp and concentration caustic soda,sodium hydroxide | ||
Hastelloy (C276, D205, B2G) | Concentration Sulphuric Acid, Hydrochloric acid, Phosphoric acid | ||
Material of Gasket | Operating Temperature ° C | Suited Liquid Kinds | |
NBR | -15~+110° C | Water, Sea Water, Mineral Oil, Salinous Water | |
HT-NBR | -15~+120° C | Water, Sea Water, Mineral Oil, Salinous Water | |
HNBR | -15~+140ºC | High temperature mineral oil, high temperature water | |
EPDM | -25~+160° C | Hot Water, Steam, Acid, Alkali,sodium hydroxide | |
HEPDM | -25~+180° C | Hot water, water vapor, acid, alkali,sodium hydroxide | |
Viton-A | -5~+160° C | Acid, Alkali Acid, alkali, fluid,sodium hydroxide | |
Viton-G | -5~+180° C | High Concentrated Acid, Alkali, High temperature Oil, Steam |
Welcome to
OEM,Detailed Product Description
1.can complete replace Alfalaval plate
2.high heating transferring efficiency at it is peak
3.plate thickness:0.5/0.6/0.7/0.8mm
4.Plate material:304,316L,Ti

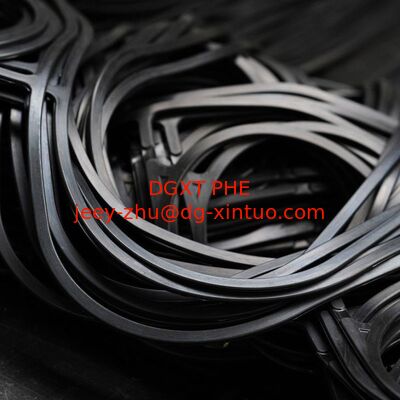

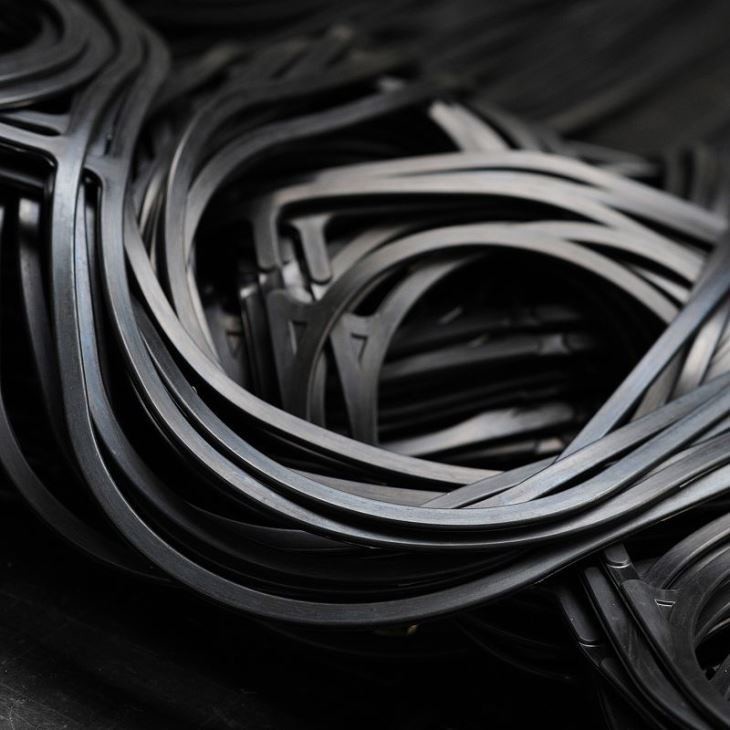

5.gaskets material:EPDM,EPDMP,HEPDM,NBR,HNBR,Viton-A,Viton-G,FKM
Plate Heat exchanger Material Warm Tips:
Plate material | Applicable fluids |
Stainless steel(SU304.316 ect) | Clean water, river water, edible oil, mineral oil |
Stainless steel & Ti, Ti-Pd | Sea water, salty water,salt compounds |
20Cr, 18Ni,SMO | Dilute sulfuric acid,Water solution of salt matter, Inorganic solution |
Nickel | High temperature and high concentration of caustic soda |
Hastelloy | Concentrated sulfuric acid,Hydrochloric acid, Phosphoric acid |
Sealing material: | adapt temperature | Suitable for fluid |
NBR | -15~+120ºC | Water, sea water, cooking oil, salt water |
HNBR | -15~+140ºC | High temperature mineral oil, high temperature water |
EPDM | -25~+170ºC | Hot water, water vapor, acid, alkali |
Viton | -5~+130ºC | Acid, alkali, fluid |

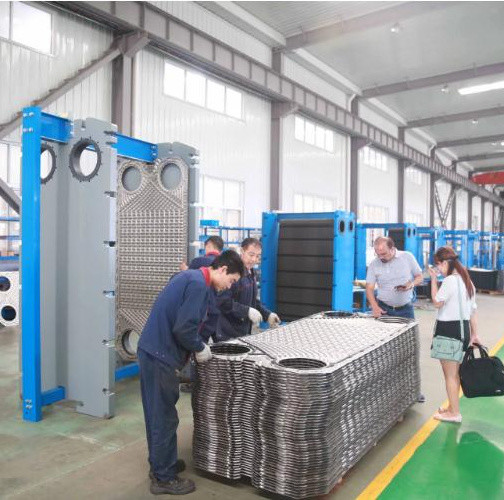

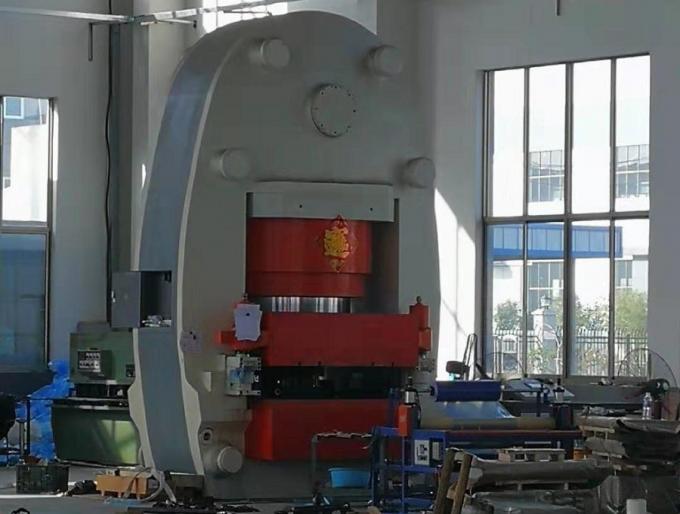

Our company develop and manufacture plate heat exchanger and related parts by our own factory.
Company feature
1.focus on plate heat exchanger
2.pay attention to client's require
3.reply massage at the first time
4.delivery in time
5.Prime Quality
Working principle

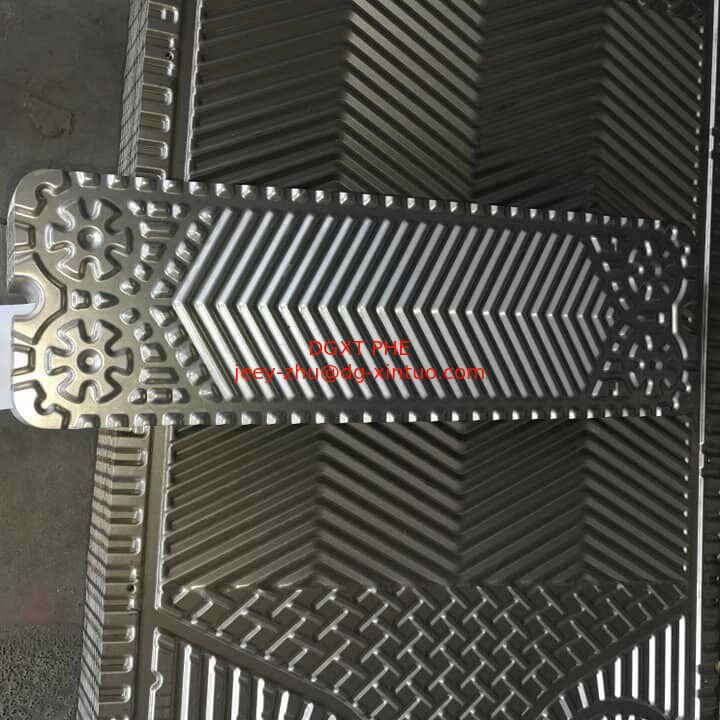

Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.
Food industry: Milk pasteurization, Milk and beverage pasteurization , Wine tempering, Bottled water treatment , CIP (Cleaning-in-Place) heating , Reverse osmosis water.
Marine application : Central cooling of the main or auxiliary engines or turbines, Lubrication oil cooling, Recooling of circulated water for cooling cylinders, pistons, injection nozzles, Cooling of Baoder oil, compressor oil and other lubricants, Preheating of lubrication oil and heavy fuel oil, Preheating of seawater for fresh water production, Heat recovery, Heat exchange to air-condition the passengers' cabins and freight spaces
Others: turbine oil cooler, Chemical industry, district heating, district cooling, swimming pool heating, solar heating
EXW Price: | $3.8 |
Minimum Order: | 50 Piece/Pieces |
Port: | Shanghai,China |
Payment Terms: | 30% and 70% before Shipment Via T/T,paypal,western union |
