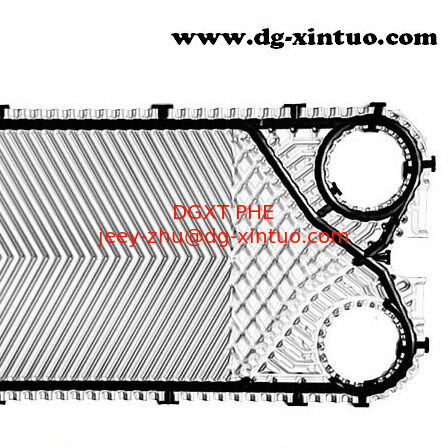

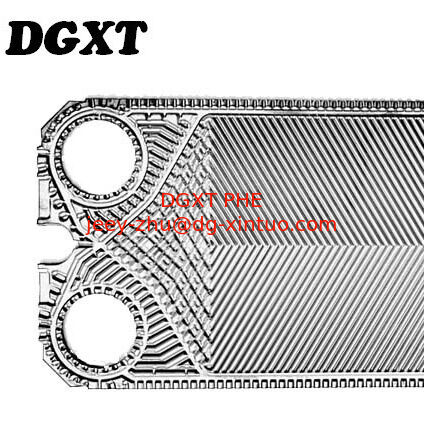

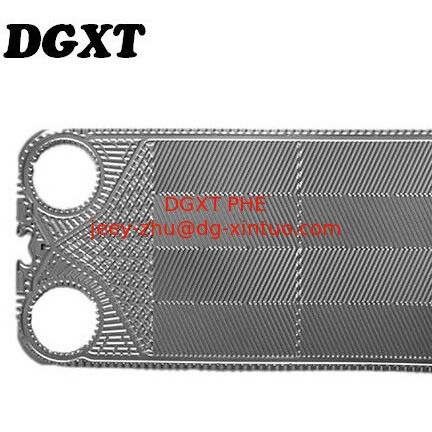

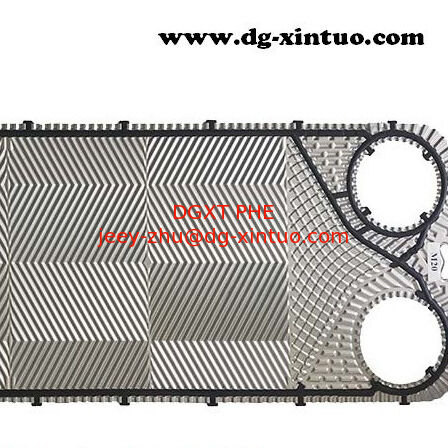

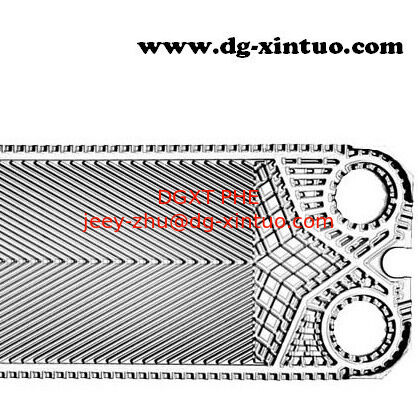

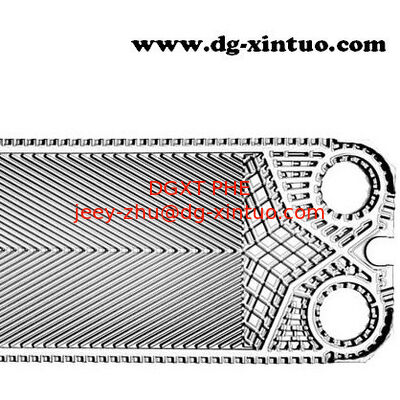

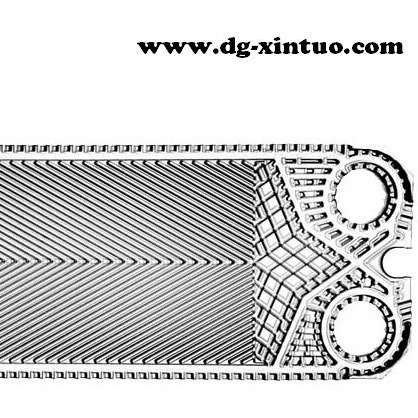

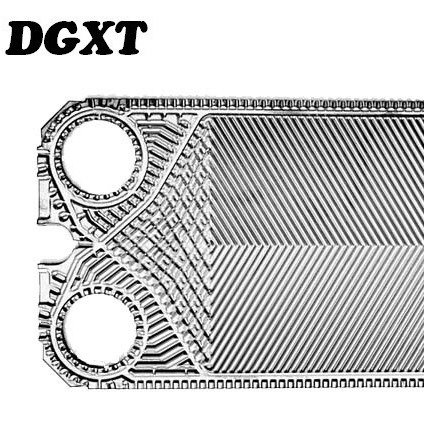

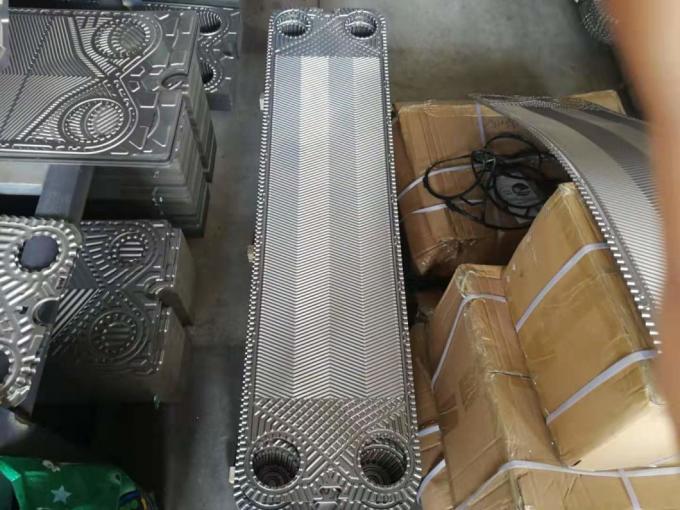

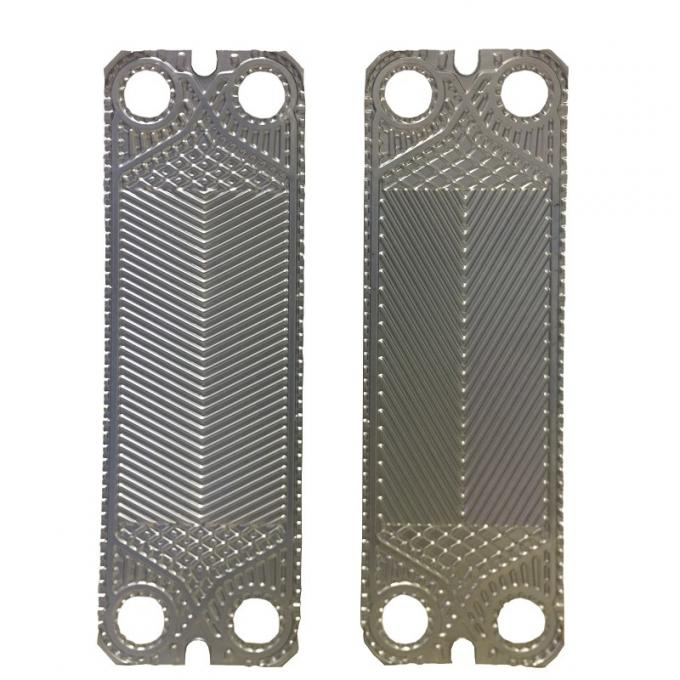

Replacement Heat Exchanger Plates, SS304, 316L, Titanium Material

Basic Information
Place of Origin: China
Brand Name: DGXT
Certification: CE ISO9001 CO FE
Model Number: Customized
Minimum Order Quantity: 1
Price: 20-49 Pieces / US $7.5 | 50-199 Pieces / US $6.9 | 200+ Pieces / US $6.6
Packaging Details: wooden case
Delivery Time: 8-10 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 per month
HS Code: 841950 Port: Shanghai, China
Customized: Customized Sectional Shape: Rectangle
Performance: Pressure Resistant, Temperature Resistant, Corrosion Resistant Material: Stainless Steel

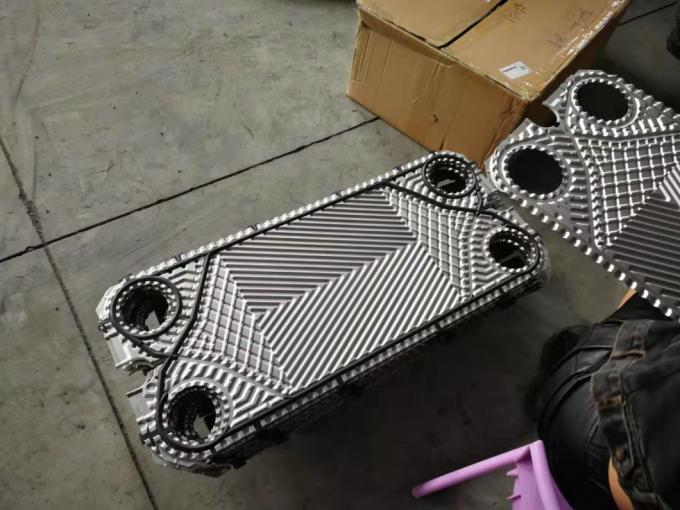

HT/LT Plate and gaskets used in heat exchanger

Welcome to OEM,Detailed Product Description
1.can complete replace Alfalaval plate
2.high heating transferring efficiency at it is peak
3.plate thickness:0.5/0.6/0.7/0.8mm
4.Plate material:304,316L,Ti
5.gaskets material:EPDM,EPDMP,HEPDM,NBR,HNBR,Viton-A,Viton-G,FKM
Plate Heat exchanger Material Warm Tips:

Plate materialApplicable fluids
Stainless steel(SU304.316 ect)Clean water, river water, edible oil, mineral oil
Stainless steel & Ti, Ti-PdSea water, salty water,salt compounds
20Cr, 18Ni,SMODilute sulfuric acid,Water solution of salt matter,
Inorganic solution
NickelHigh temperature and high concentration of caustic soda
HastelloyConcentrated sulfuric acid,Hydrochloric acid, Phosphoric acid
Sealing material:adapt temperatureSuitable for fluid
NBR-15~+120ºCWater, sea water, cooking oil, salt water
HNBR-15~+140ºCHigh temperature mineral oil, high temperature water
EPDM-25~+170ºCHot water, water vapor, acid, alkali
Viton-5~+130ºC

Acid, alkali, fluid

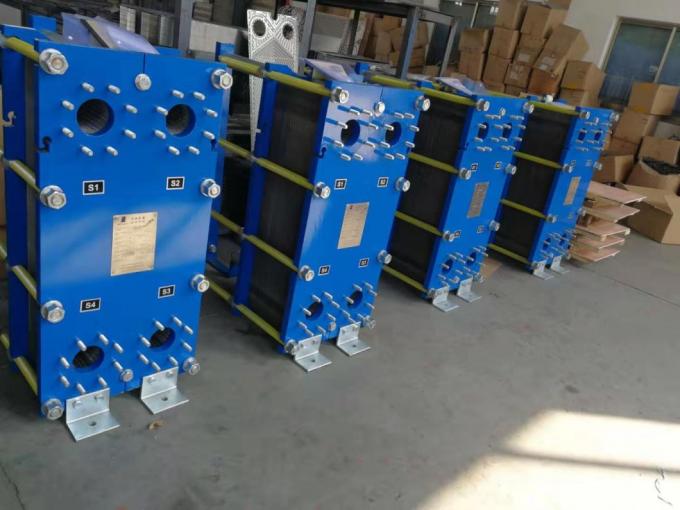

Our company develop and manufacture plate heat exchanger and related parts by our own factory.
Replacement M6m/M6b Heat Exchanger Plates, SS304, 316L, Titanium Material
Replacement M6m/M6b Heat Exchanger Plates, SS304, 316L, Titanium Material
Replacement M6m/M6b Heat Exchanger Plates, SS304, 316L, Titanium Material

Replacement M6m/M6b Heat Exchanger Plates, SS304, 316L, Titanium Material
Replacement M6m/M6b Heat Exchanger Plates, SS304, 316L, Titanium Material
Replacement M6m/M6b Heat Exchanger Plates, SS304, 316L, Titanium Material
Replacement M6m/M6b Heat Exchanger Plates, SS304, 316L, Titanium Material
Replacement M6m/M6b Heat Exchanger Plates, SS304, 316L, Titanium Material
Replacement M6m/M6b Heat Exchanger Plates, SS304, 316L, Titanium Material
Replacement M6m/M6b Heat Exchanger Plates, SS304, 316L, Titanium Material

Company feature
1.focus on plate heat exchanger
2.pay attention to client's require
3.reply massage at the first time
4.delivery in time
5.Prime Quality


Working principle
Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.
Food industry: Milk pasteurization, Milk and beverage pasteurization , Wine tempering, Bottled water treatment , CIP (Cleaning-in-Place) heating , Reverse osmosis water.
Marine application : Central cooling of the main or auxiliary engines or turbines, Lubrication oil cooling, Recooling of circulated water for cooling cylinders, pistons, injection nozzles, Cooling of Baoder oil, compressor oil and other lubricants, Preheating of lubrication oil and heavy fuel oil, Preheating of seawater for fresh water production, Heat recovery, Heat exchange to air-condition the passengers' cabins and freight spaces
Others: turbine oil cooler, Chemical industry, district heating, district cooling, swimming pool heating, solar heating

Terms
FOB Price:$8.5
Minimum Order:50 Piece/Pieces
Port:Shanghai,China
Payment Terms:30% and 70% before Shipment Via T/T,paypal,western union

Replacement M6m/M6b Heat Exchanger Plates, SS304, 316L, Titanium Material
