Sondex Heat Exchanger SSI316/Titanium equivalent Plate for Industry Heat Exchanger

Basic Information
Place of Origin: China
Brand Name: DGXT
Certification: CE ISO9001 CO FE
Model Number: Customized
Minimum Order Quantity: 1
Price: 50-99 Pieces / US $19.5 | 100-199 Pieces / US $18.5 | 200-299 Pieces / US $18 | 300+ Pieces / US $17.6
Packaging Details: wooden case
Delivery Time: 8-10 days
Payment Terms: T/T, Western Union, Paypal, Money Gram
Supply Ability: 10000 per month
Model NO.: S17/S9A/S42/S64/S81/S188 Gasket Material: NBR/EPDM/Viton-a/Viton-G
HS Code: 84195000 Port: Shanghai, China
Customized: Non-Customized Performance: Pressure Resistant, Temperature Resistant, Corrosion Resistant
Material: Stainless Steel Plate Material: 304/316/Titanium /254 Smo/Alloy C-276/904L OEM Wel

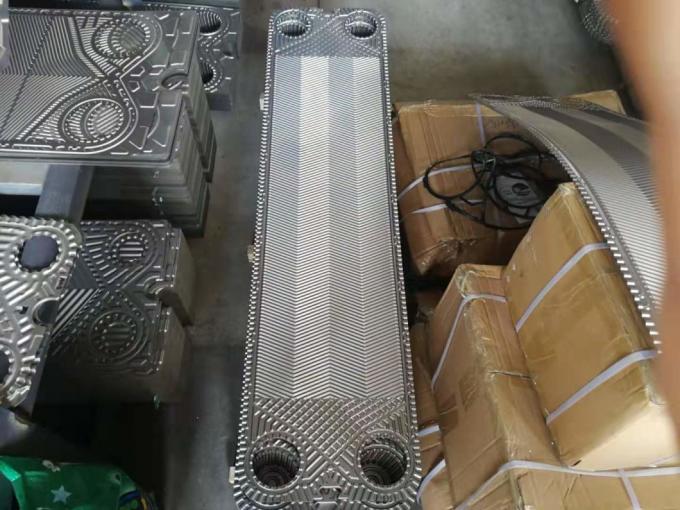

Sondex heat exchanger plate for industry plate heat exchanger

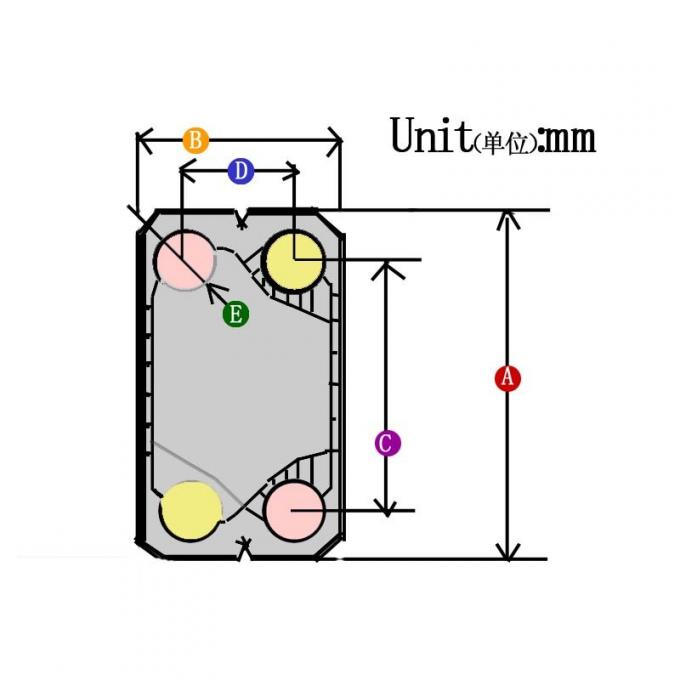

Model Deep(mm) E(mm) C*D(mm) A*B(mm) Sondex Heat Exchanger Plate for Industry Heat Exchanger
S4A 2.35 φ28 381*70 449*140
S8A 2.35 φ28 656*70 724*140
S21A 2.6 φ101 719*225 882*378
S22A 4 φ101 719*225 882*378
S41A 2.6 φ147 890*296 1100*497
S42A 3.8 φ147 890*296 1100*497
S43 2.6 φ202 791*395 1062*659
S65 2.6 φ202 1091*395 1362*659
S100 2.6 φ202 1489*395 1760*659
S81 3.5 φ303 1079*480 1461*868
S121 3.5 φ303 1490*480 1872*868
S17 3 φ69 800*150 927*274
S14A 2.6 φ60 694*126 800*230
S7A 2.6 φ60 394*126 498*230
S20A 2.6 φ60 894*126 998*230
S9A 2.3 φ66 381*192 496*306
S19A 2.3 φ66 701*192 816*306
S31A 2.3 φ66 1050*192 1166*306
S37 3.5 φ81 1070*238 1212*380
S47 2.6 φ101 1365*225 1518*380

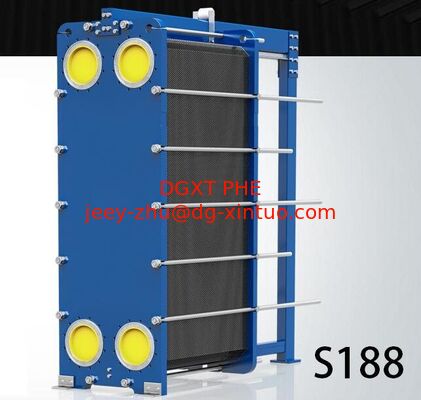

S188 3.5 φ303 2120*480 2505*868
S130 2.6 φ202 1891*395 2161*659
S113 2.7 φ250 1527*448 1848*758
S64 2.6 φ101 1770*225 1929*380
S62 2.6 φ147 1292*296 1505*500
S86 2.6 φ147 1694*296 1908*500
S110 2.6 φ147 2094*296 2304*500
S145 3.5 φ410 1410*660 1913*1160

Full range of brands plate for power industry heat exchanger

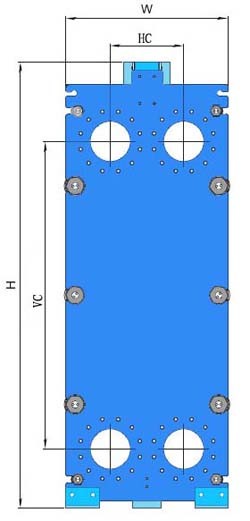

Gaskets For Sondex Plate Heat ExchangerSondex Heat Exchanger Plate for Industry Heat Exchanger
Model S4A    Hang-om S15 S8 Sondersnap S8A    Hang-on S14A   Hang-on S7A          Hang-on
HC=mm 70 126   70 126 126
VC=mm 381 694   656 694 394
Model S19A S20 S20A   Hang-on S21 Sonderlock S21A   Hand-on S22 Sonderlock
HC=mm 192 126 126 225 225 225
VC=mm 700 894 894 719 719 719
Model S121 S30 S35 S37 Sonderlock S38 Sondersnap S39
HC=mm 480 202 283 238   202
VC=mm 1490 950 800 1441   1150
Model S41 S41A S43 Sonderlock S47 Sonderlock S50 S62 Sonderlock
HC=mm 296 296 395 225 202 296
VC=mm 890 890 791 1365 1450 1292
Model S64 Sonderlock S65 S65 Sonderlock S81 S100 Sonderlock S120
HC=mm 225 395 395 480 395 480
VC=mm 1771 1091 1091 1080 1489 1490

Product introduction:

1.Metal material:304/316/Titanium /254 SMO/Alloy C-276/904L oem welcome
Gaskets:Nitrile- EPDM- FKM
3.Application: Heat exchanger High effectient heating and Cooler

Heat Exchanger Plate Material Choose reference:
Plate matrial Adapt Liquid
Stainless steel(304,316) Pure water,stem water,Edible oil,mineral oil
(Ti,Ti-Pa) Sea water,Salt water,Salt compounds
20Cr,18Ni,6Mo(2455Mo) Dilute sulfuric acid, dilute sulfate, organic water solution
(Ni) High Temperature and High Concentration Caustic Sodium
HASTELLOY(C276,D25,B2G) Concentrated sulfuric acid, hydrochloric acid and phosphoric acid

Heat Exchanger Plate gaskets Material Choose reference:
Sealing material: adapt temperature Suitable for fluid
NBR -15~+120ºC Water, sea water, cooking oil, salt water
HNBR -15~+140ºC High temperature mineral oil, high temperature water
EPDM -25~+170ºC Hot water, water vapor, acid, alkali
Viton -5~+130ºC

Acid, alkali, fluid

We Supply all kinds of heat exchanger replacement plate and gaskets service,completed machine service.
APV Series A055 A085 H12 H17C H17G J060 J092 J107 J185 Sr1 Sr2 Sr3 Sr6 Sr14 Sr95 M60 M92 M107 U2 T4 N25 N35-C N35-G Q030D Q030E Q055 Q080 K34 K55 K71G R5-R R5-L N50 P105 P190 E201 RS3
GEA Series VT04P VT10F VT20-C VT20-G VT20P VT40-C VT40-G VT40P/M VT40P VT80-C VT80-G VT80M VT80P VT805 VT130F VT130K VT405 VT1306 VT2508 NT10 NT50T NT50X NT50M NT100T NT100M NT100X NT150S NT150L NT250S NT250L NT350S FA184 FE184 LWC100T N40 VT2508
Tranter Series GXP018 GXP026 GXP042 GXP051 GXD012 GXD026 GXD042 GXD051 GXD060 GXD085 GXD145 GCD030 GCD054 GCP016 GCP026 GCP051 GFP050 GFP100 GLD013 S3/GFP030 S8/GFP080 GL13 GX12 GX13 GC26 GX26 GC30 GC42 GX42 GX51 GC51 GC54 GC60 GX60 GX100 GX180
Vicarb Series V4 V8 VU8 V10 V13C V13G V20C V20G V28C V28G V45C V45G V60C V60G V60A V60B V85G V100A V100B V110A V130 V170 V280
Sondex Series S4A S7A S8 S8A S14A S15 S19A S20 S20A S21 S21A S22 S27A S30 S35 S37 S37B S38 S39 S41 S41A S42 S43B S47B S50 S62 S64 S65B S65C S65G S81 S100B S121 S188 SFD13
Thermowave Series TL90SS TL90PP TL150SS TL150PP TL200PP TL200SS TL250SS TL250PP TL500SS TL500PP TL650SS TL650PP TL850PP TL850SS
Hisaka Series LX00A LX10A LX20 LX20A LX30A LX40 LX40A LX50A UX01 UX10 UX10A UX20 UX20A UX30 UX30A UX40 UX40A UX80 UX90 RX10A RX11A RX30A RX70 SX40(41) SX40A EX11 EX15
Funke Series FP04,FP08,FP10,FP14,FP20,FP16,FP22,FP205,FP31,FP40,FP50,FP41,FP60,FP80

Sondex Heat Exchanger Plate for Industry Heat Exchanger
Sondex Heat Exchanger Plate for Industry Heat ExchangerSondex Heat Exchanger Plate for Industry Heat Exchanger
More our products display:

Sondex Heat Exchanger Plate for Industry Heat Exchanger
Sondex Heat Exchanger Plate for Industry Heat Exchanger
Sondex Heat Exchanger Plate for Industry Heat Exchanger

Sondex Heat Exchanger Plate for Industry Heat Exchanger
