DGXT TL150 Heat Exchanger Plate Replacement With Gasket For Plate Heat Exchanger

Basic Information
Place of Origin: China
Brand Name: DGXT
Certification: CE ISO9001 CO FE
Model Number: TL150
Minimum Order Quantity: 1
Price: 50-199 Pieces / US $5 | 200-499 Pieces / US $4.5 | 500+ Pieces / US $4
Packaging Details: wooden case
Delivery Time: 8-10 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 per month
Model NO.: TL150 Specification: Stainless Steel SS316L/0.5
HS Code: 84195000 Port: Shanghai, China
Performance: Pressure Resistant, Temperature Resistant, Corrosion Resistant Material: Stainless Steel

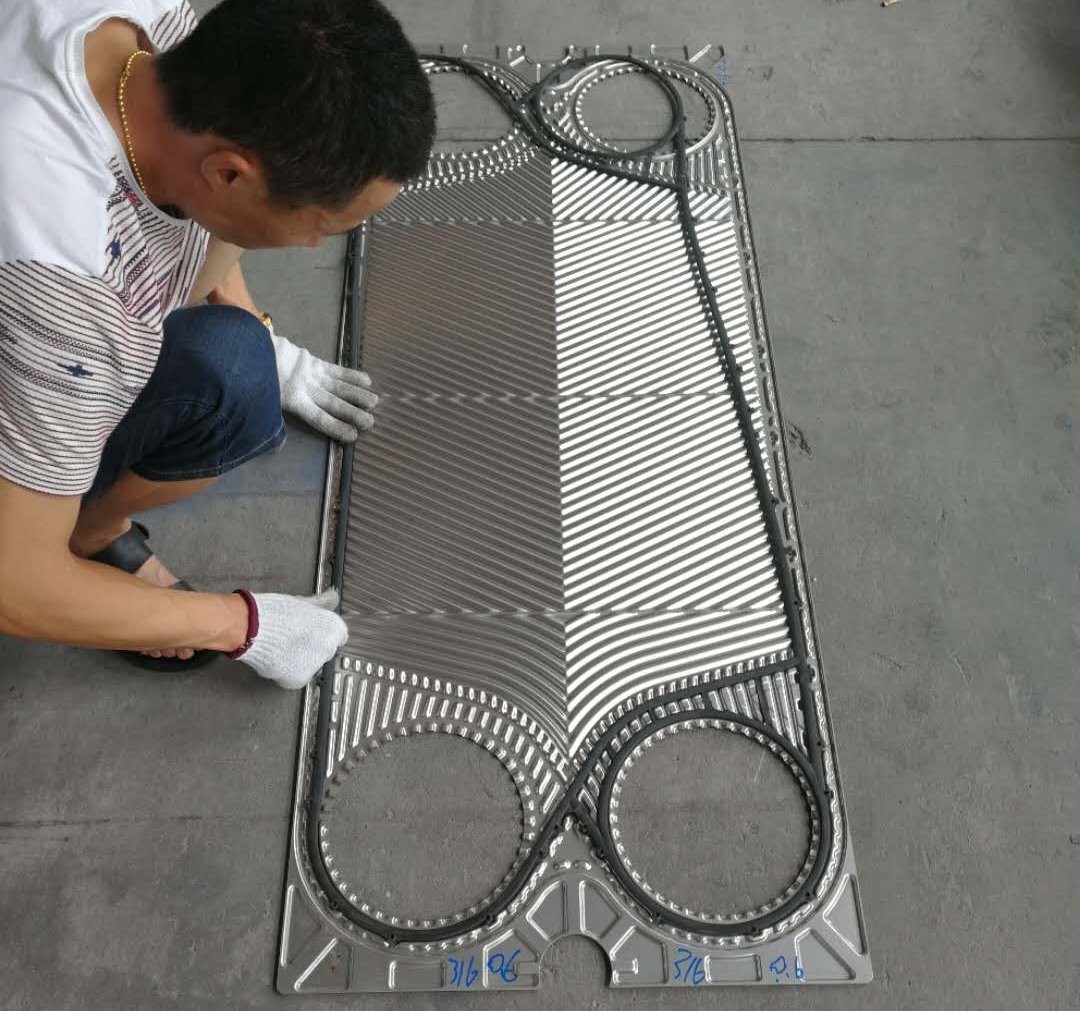

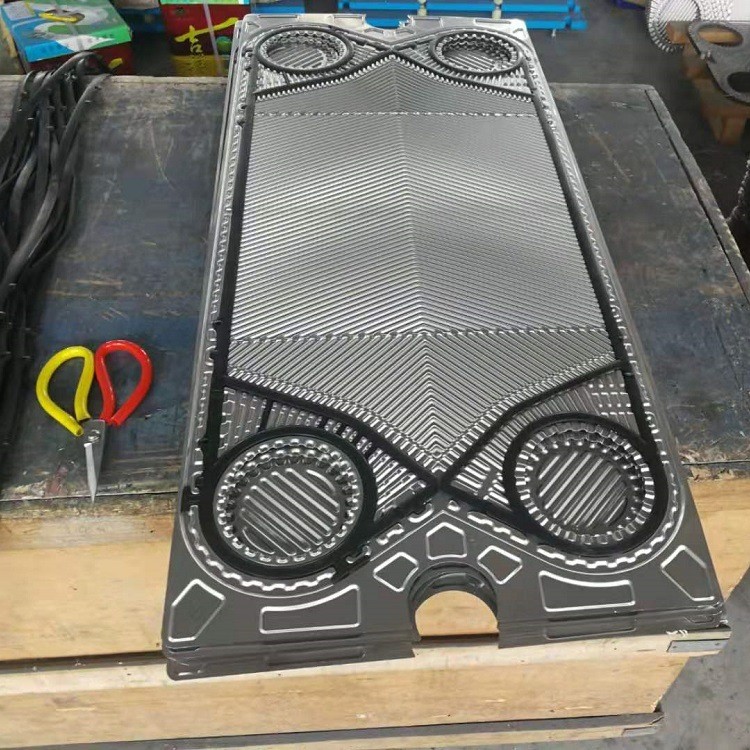

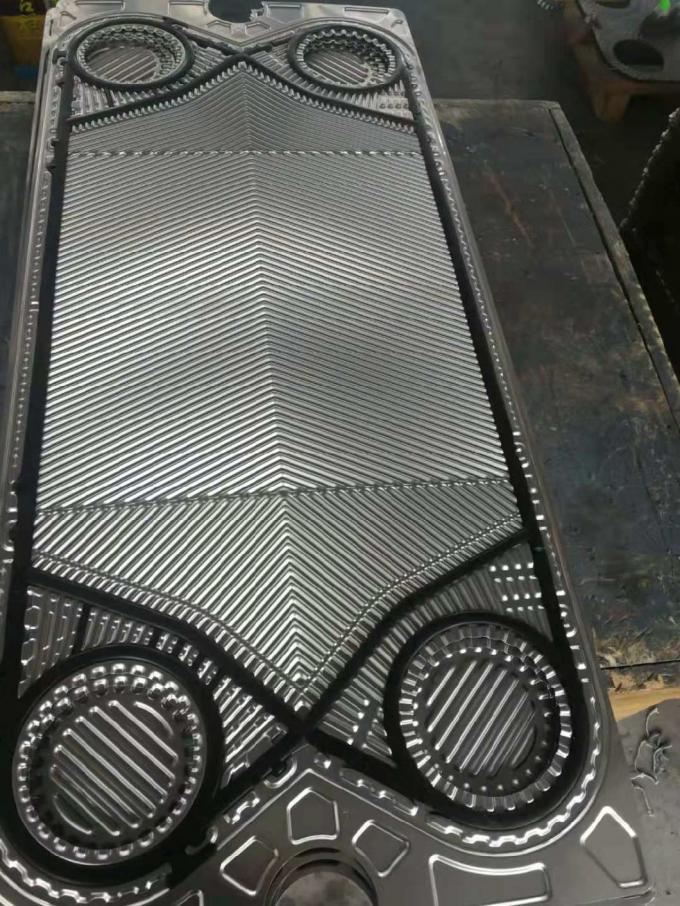

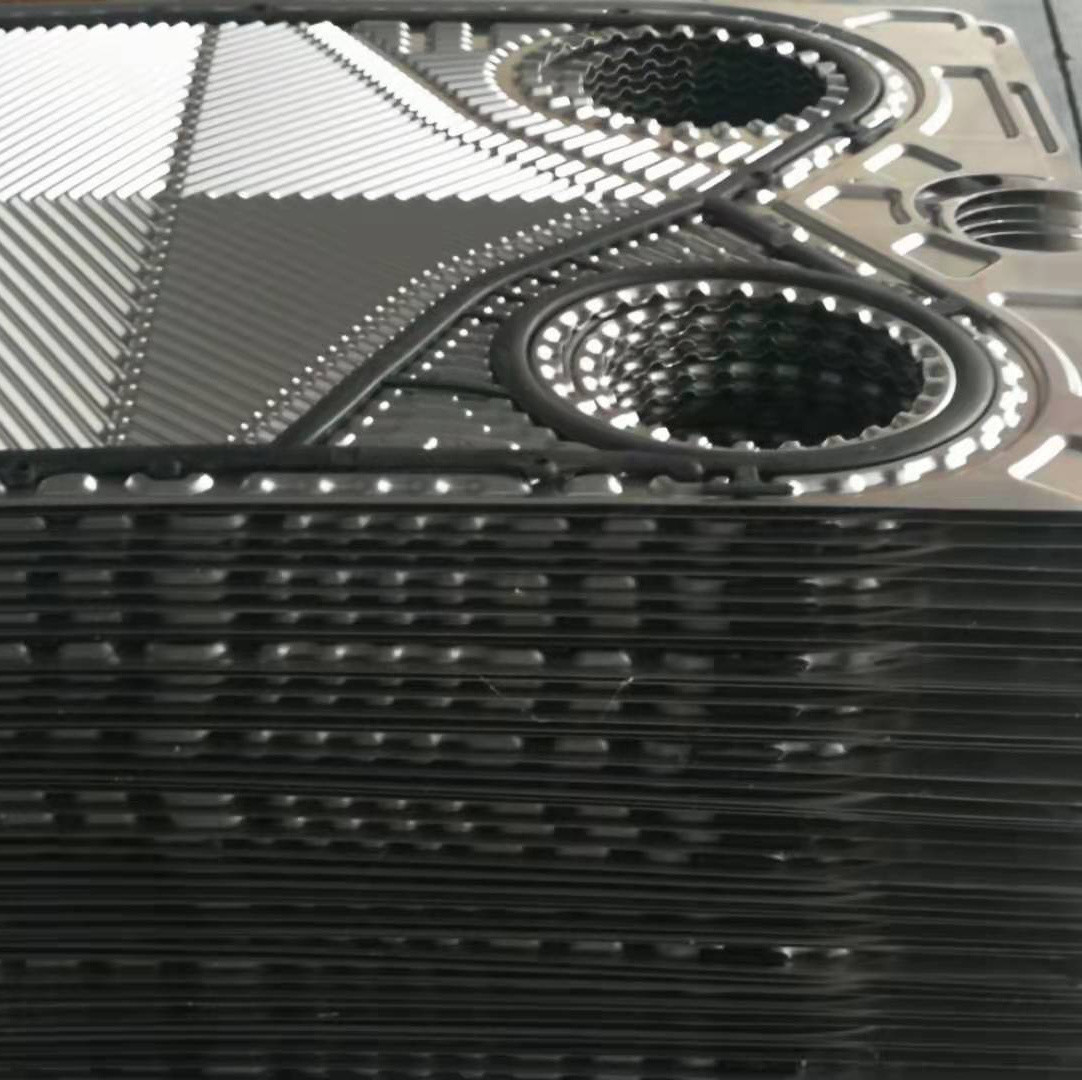

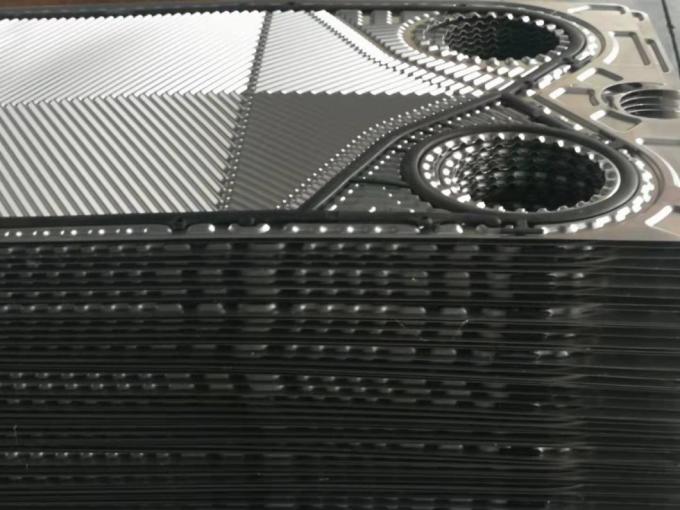

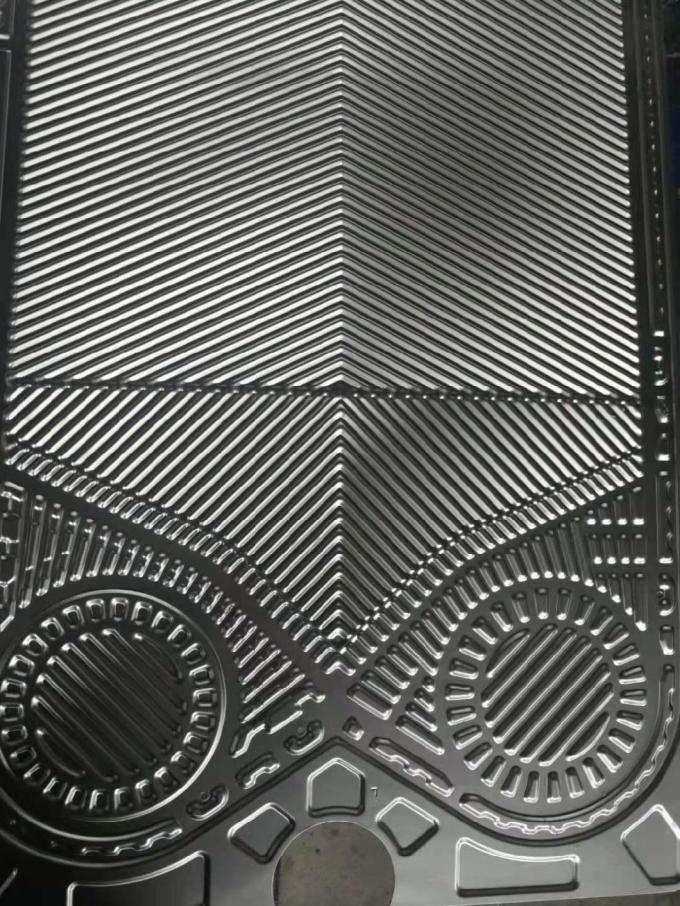

TL150 Plate with Gasket for plate heat exchanger



1. Equal to Thermowave TL150 plate heat exchanger.
2. Plate gasket: NBR / EPDM
3. Plate material: 316L /304/Ti material
Same as Thermowave TL150P gasket plate heat exchanger, can replace original Thermowave plates and gasket.
Material: 316L, 304, Ti, SMO, Hastelloy
Thickness: 0.5mm, 0.6mm
Gasket: NBR, EPDM


Sealing material: adapt temperature Suitable for fluid
NBR -15~+120ºC Water, sea water, cooking oil, salt water
HNBR -15~+140ºC High temperature mineral oil, high temperature water
EPDM -25~+170ºC Hot water, water vapor, acid, alkali
Viton -5~+130ºC
Plate material Applicable fluids
Stainless steel(SU304.316 ect) Clean water, river water, edible oil, mineral oil
Stainless steel & Ti, Ti-Pd Sea water, salty water,salt compounds
20Cr, 18Ni,SMO Dilute sulfuric acid,Water solution of salt matter,
Inorganic solution
Nickel High temperature and high concentration of caustic soda
Hastelloy

Concentrated sulfuric acid,Hydrochloric acid, Phosphoric acid Acid, alkali, fluid



Applications:


District Heating District Cooling Heat recovery System separation Swimming pool equipment Industry and oil cooling Combined heat and power generation

Competitive Advantages
Well and High Quality Control
 Tl150 Plate with Gasket for Thermowave Plate Heat Exchanger

Tl150 Plate with Gasket for Thermowave Plate Heat Exchanger
Tl150 Plate with Gasket for Thermowave Plate Heat Exchanger
Tl150 Plate with Gasket for Thermowave Plate Heat Exchanger
Tl150 Plate with Gasket for Thermowave Plate Heat Exchanger
Model Corrugation Angle  Corrugation Depth   (mm) Angle Hole Diameter   (mm) Angle Hole Center Distance  (mm) Plate Size  (mm) Area of Plate (M2)
TL150P 128° 2 φ43 825*125 981*244 0.16
Tl150 Plate with Gasket for Thermowave Plate Heat Exchanger
Tl150 Plate with Gasket for Thermowave Plate Heat Exchanger
Tl150 Plate with Gasket for Thermowave Plate Heat Exchanger
Tl150 Plate with Gasket for Thermowave Plate Heat Exchanger
Tl150 Plate with Gasket for Thermowave Plate Heat ExchangerTl150 Plate with Gasket for Thermowave Plate Heat Exchanger

DGXT TL150 Heat Exchanger Plate Replacement With Gasket For Plate Heat Exchanger 11DGXT TL150 Heat Exchanger Plate Replacement With Gasket For Plate Heat Exchanger 12DGXT TL150 Heat Exchanger Plate Replacement With Gasket For Plate Heat Exchanger 13DGXT TL150 Heat Exchanger Plate Replacement With Gasket For Plate Heat Exchanger 14DGXT TL150 Heat Exchanger Plate Replacement With Gasket For Plate Heat Exchanger 15DGXT TL150 Heat Exchanger Plate Replacement With Gasket For Plate Heat Exchanger 16DGXT TL150 Heat Exchanger Plate Replacement With Gasket For Plate Heat Exchanger 17

Becoming our VIP customers for more plate and gasket models and discounts!
