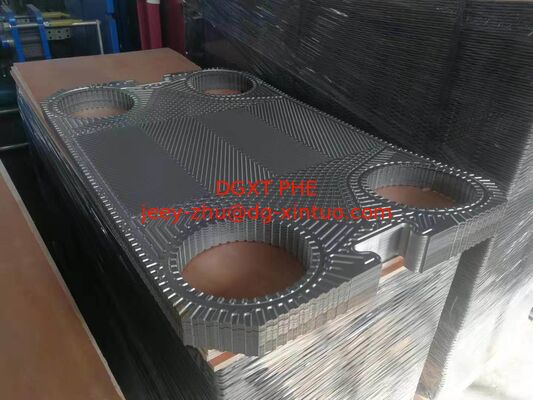

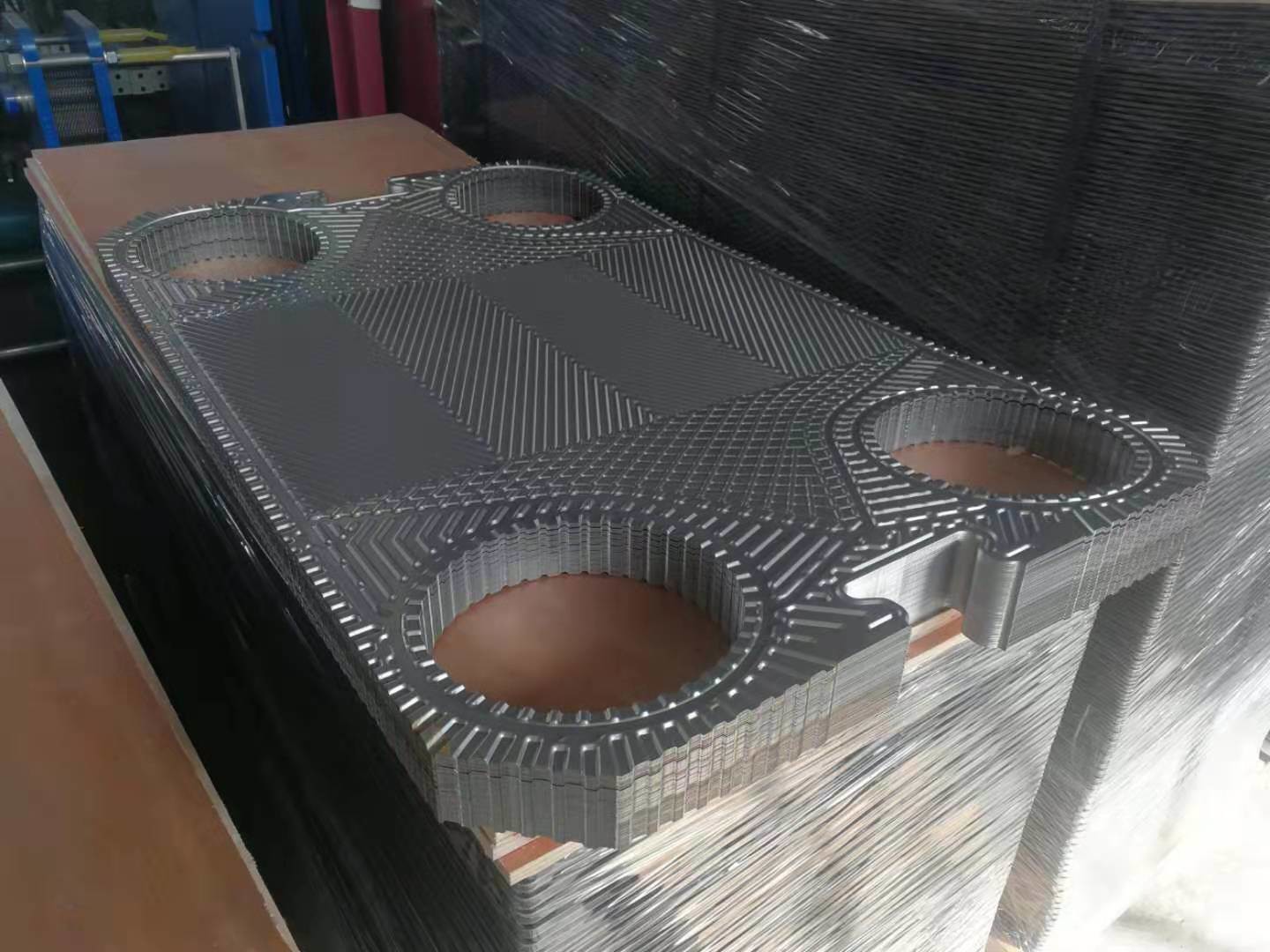

SS316/0.5 Heat Exchanger Plate Replace Equivalent Plate for plate heat exchanger

Basic Information
Place of Origin: China
Brand Name: DGXT
Certification: CE ISO9001 CO FE
Model Number: Customized
Minimum Order Quantity: 1
Price: 10-49 Pieces / US $20 | 50-99 Pieces / US $19 | 100-199 Pieces / US $18 | 200+ Pieces / US $17.6
Packaging Details: wooden case
Delivery Time: 8-10 days
Payment Terms: T/T, Western Union, Paypal, Money Gram
Supply Ability: 10000 per month
Model NO.: Customized Specification: Stainless Steel AISI304/316/316L/317L, 254smo/654s
HS Code: 84195000 Port: Shanghai, China
Performance: Pressure Resistant, Temperature Resistant, Corrosion Resistant Material: Stainless Steel
Plate Material: Stainless Steel 304/316, Ti/Ni/904L/254smo

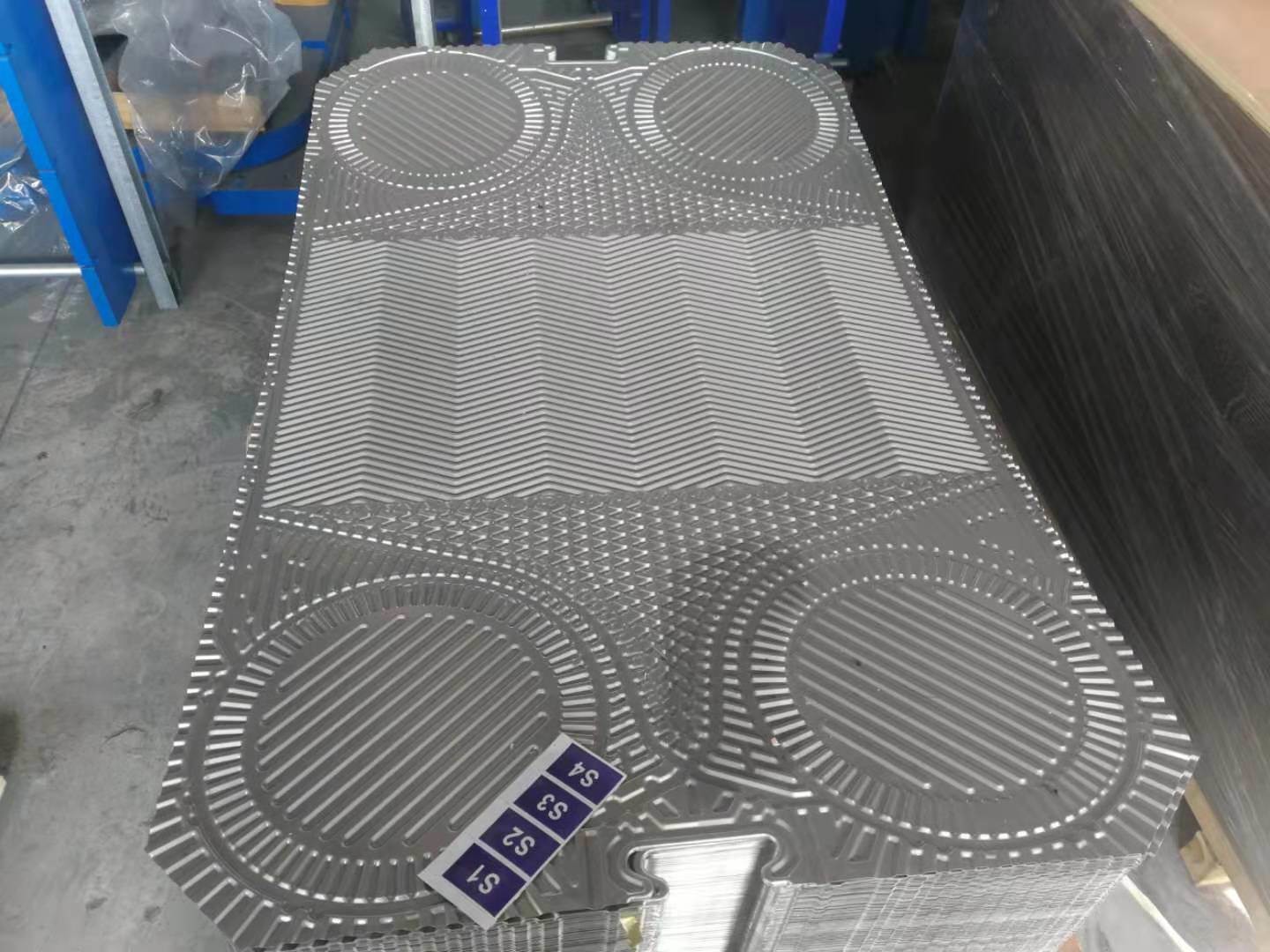

SS316/0.5 Heat Exchanger Plate Replace Original Equivalent Plate for plate heat exchanger

Plate Material Application:

Plate material Applicable fluids
Stainless steel(SU304.316 ect) Clean water, river water, edible oil, mineral oil
Stainless steel & Ti, Ti-Pd Sea water, salty water,salt compounds
20Cr, 18Ni,SMO Dilute sulfuric acid,Water solution of salt matter,
Inorganic solution
Nickel High temperature and high concentration of caustic soda
Hastelloy Concentrated sulfuric acid,Hydrochloric acid, Phosphoric acid




SS316/0.5 Heat Exchanger Plate Replace Original Ts20m, Equivalent Plate
Heat Exchanger Plates and Gaskets, Supply,GEA, APV, Sondex etc.


GEA VT04P VT10F VT20-C VT20-G VT20P VT40-C VT40-G VT40P/M VT40P VT80-C VT80-G VT80M VT80P VT805 VT130F VT130K VT405 VT1306 VT2508 NT10 NT50T NT50X NT50M NT100T NT100M NT100X NT150S NT150L NT250S NT250L NT350S FA184 FE184 LWC100T N40 VT2508
APV A055 A085 H12 H17C H17G J060 J092 J107 J185 Sr1 Sr2 Sr3 Sr6 Sr14 Sr95 M60 M92 M107 U2 T4 N25 N35-C N35-G Q030D Q030E Q055 Q080 K34 K55 K71G R5-R R5-L N50 P105 P190 E201 RS3
HISAKA LX00A LX10A LX20 LX20A LX30A LX40 LX40A LX50A UX01 UX10 UX10A UX20 UX20A UX30 UX30A UX40 UX40A UX80 UX90 RX10A RX11A RX30A RX70 SX40(41) SX40A EX11 EX15
TRANTER/SERP GXP018 GXP026 GXP042 GXP051 GXD012 GXD026 GXD042 GXD051 GXD060 GXD085 GXD145 GCD030 GCD054 GCP016 GCP026 GCP051 GFP050 GFP100 GLD013 S3/GFP030 S8/GFP080 GL13 GX12 GX13 GC26 GX26 GC30 GC42 GX42 GX51 GC51 GC54 GC60 GX60 GX100 GX180
SONDEX S4A S7A S8 S8A S14A S15 S19A S20 S20A S21 S21A S22 S27A S30 S35 S37 S37B S38 S39 S41 S41A S42 S43B S47B S50 S62 S64 S65B S65C S65G S81 S100B S121 S188 SFD13
Schmidt Sigma7 Sigma9 Sigma16 Sigma17 Sigma22 Sigma26 Sigma27 Sigma30 Sigma32 Sigma37 Sigma64 Sigma66 Sigma76 Sigma85 Sigma90 Sigma107 Sigma114 Sigma M27 Sigma M36 Sigma M37 Sigma M66 Sigma M76 Sigma M106 SigmaX13 SigmaX19 SigmaX29 Star45 Star90
Thermowave TL90SS TL90PP TL150SS TL150PP TL200PP TL200SS TL250SS TL250PP TL500SS TL500PP TL650SS TL650PP TL850PP TL850SS
VICARB V4 V8 VU8 V10 V13C V13G V20C V20G V28C V28G V45C V45G V60C V60G V60A V60B V85G V100A V100B V110A V130 V170 V280


Product Description

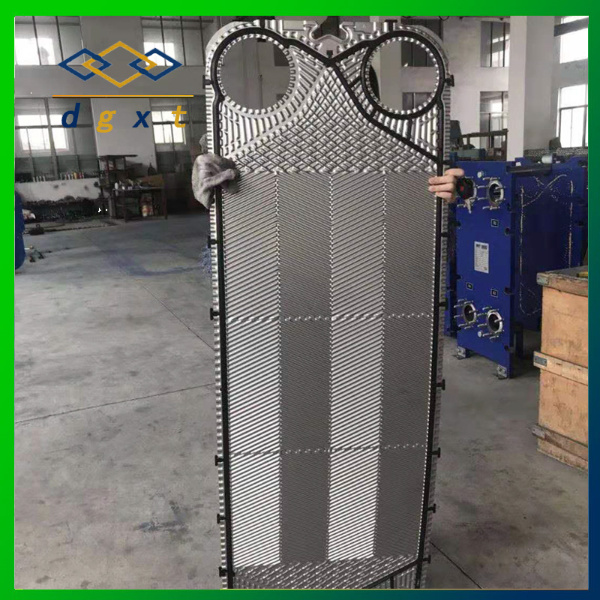

Every plate is equipped with gasket,restrict the flow of media within the plate group.
The gasket is designed as a double seal structure and has Signal hole.If the media leak,
It can early find and solve the question, don't lead to a mixture of two media.
Our Advantages
a. provide all kinds of material and type plates.
b. quality high, price low, delivery fast,service good.
c. large stock:We keep sizable inventory of gaskets & plates for regular makes and models.
d. technical service: technical consultation, equipment update, capacity expansion scheme,
maintenance and cleaning of the equipment.
e. ISO9001 & ISO14001
f. strict quality control systems: thickness/length/width measuring for gasket.
Heat Exchanger Replacement Gasket Models

Shipping & Packing
Delivery time: Within 10 working days after received the deposit and confirmed all details.
Package details: Standard export plywood case & carton customizing

Company Introduction
we can design and manufacture Plate and Shell Heat Exchanger,PHE,Gaskets & Plates and Hydraulic Press.Established in 2010,possessing senior engineers and technical team with over 10 years of experience.With the development of business,Tianjin branch company is set up in 2010.Our products had been sold all over the world,hydraulic press has received a number of national technical patents,such as invention patent, utility model patent.



Plate Heat Exchangers


welcome to inquiry us for plate heat exchanger,we supply plate heat exchanger based on your project work situation or Product drawing.

Standard materials

Frame plate: Mild steel, painted

Nozzles Material :Stainless steel AISI 316 or Titanium

Plates Material : Stainless steel AISI 316 or Titanium

Gaskets Material : EPDM/HEPDM NBR/HNBR Viton,Viton A, Viton G

Connections : 2 " NPT OR OEM

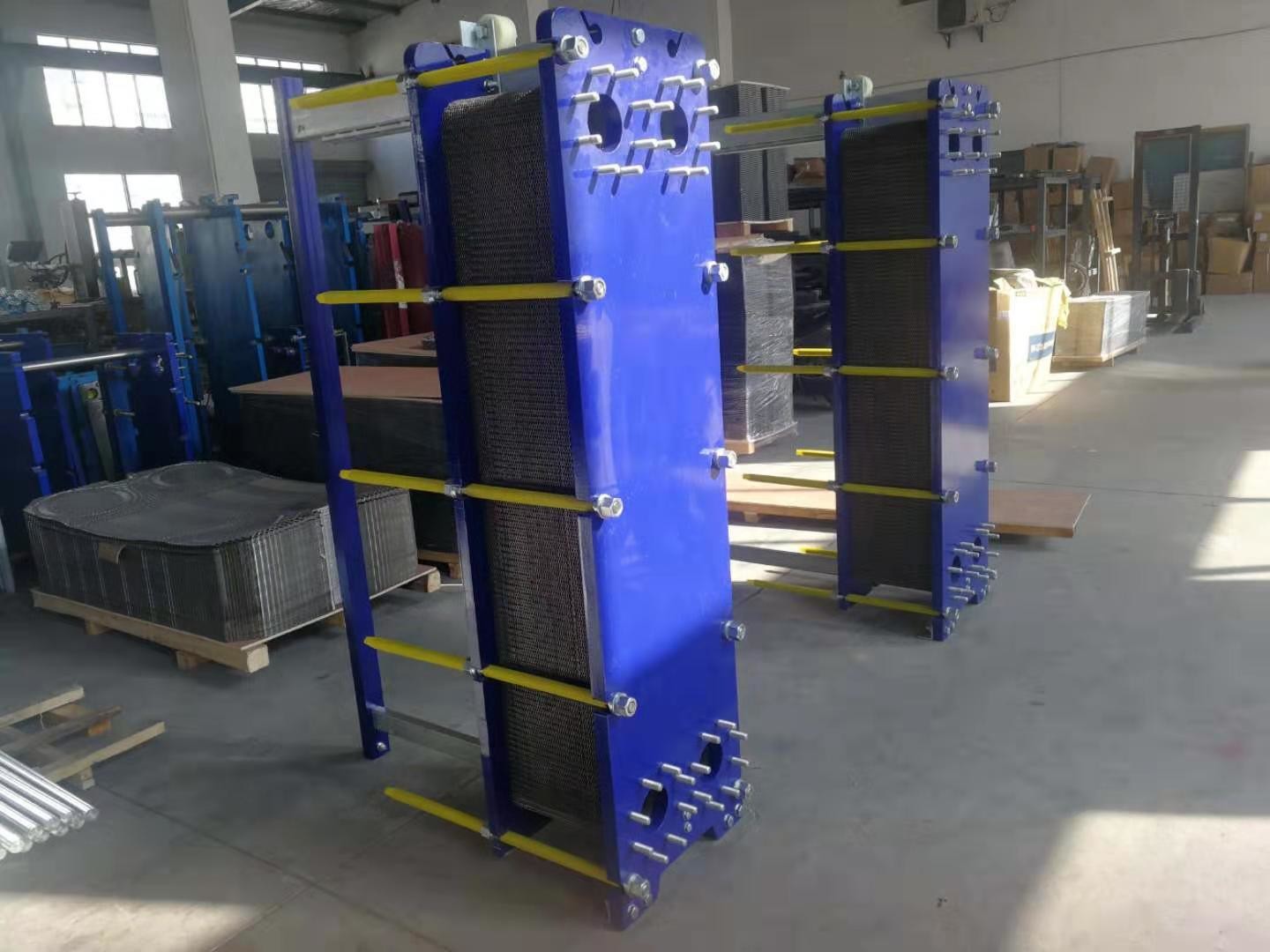

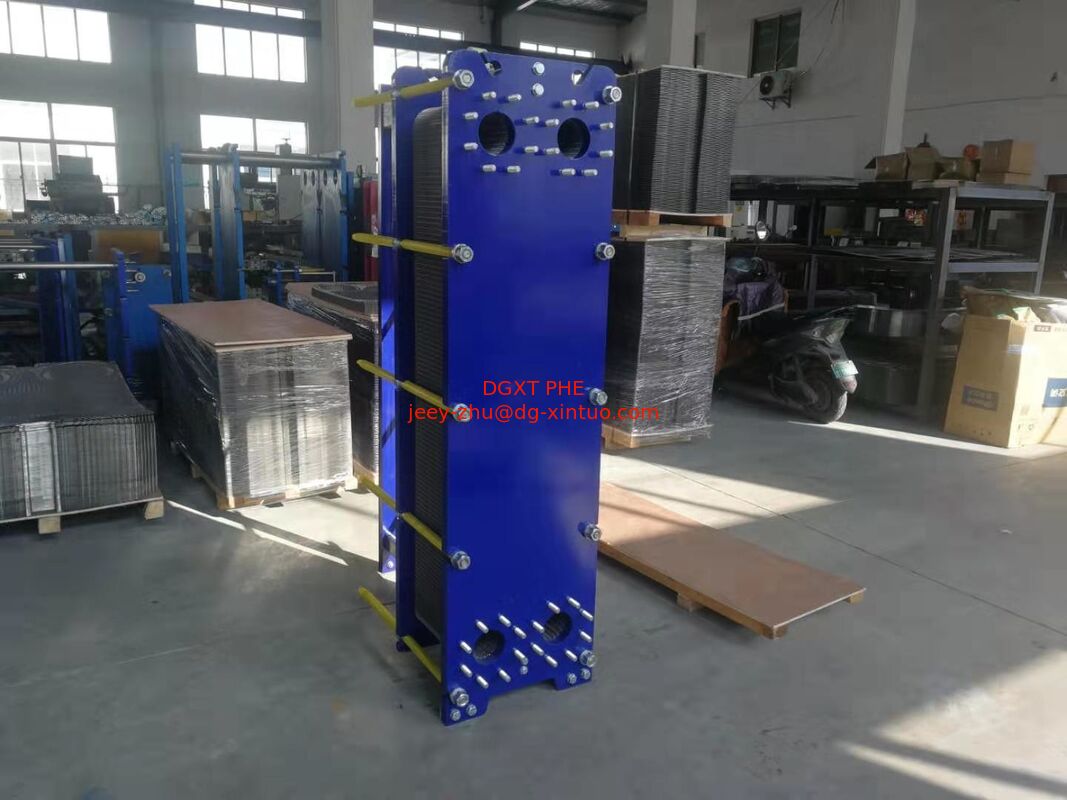

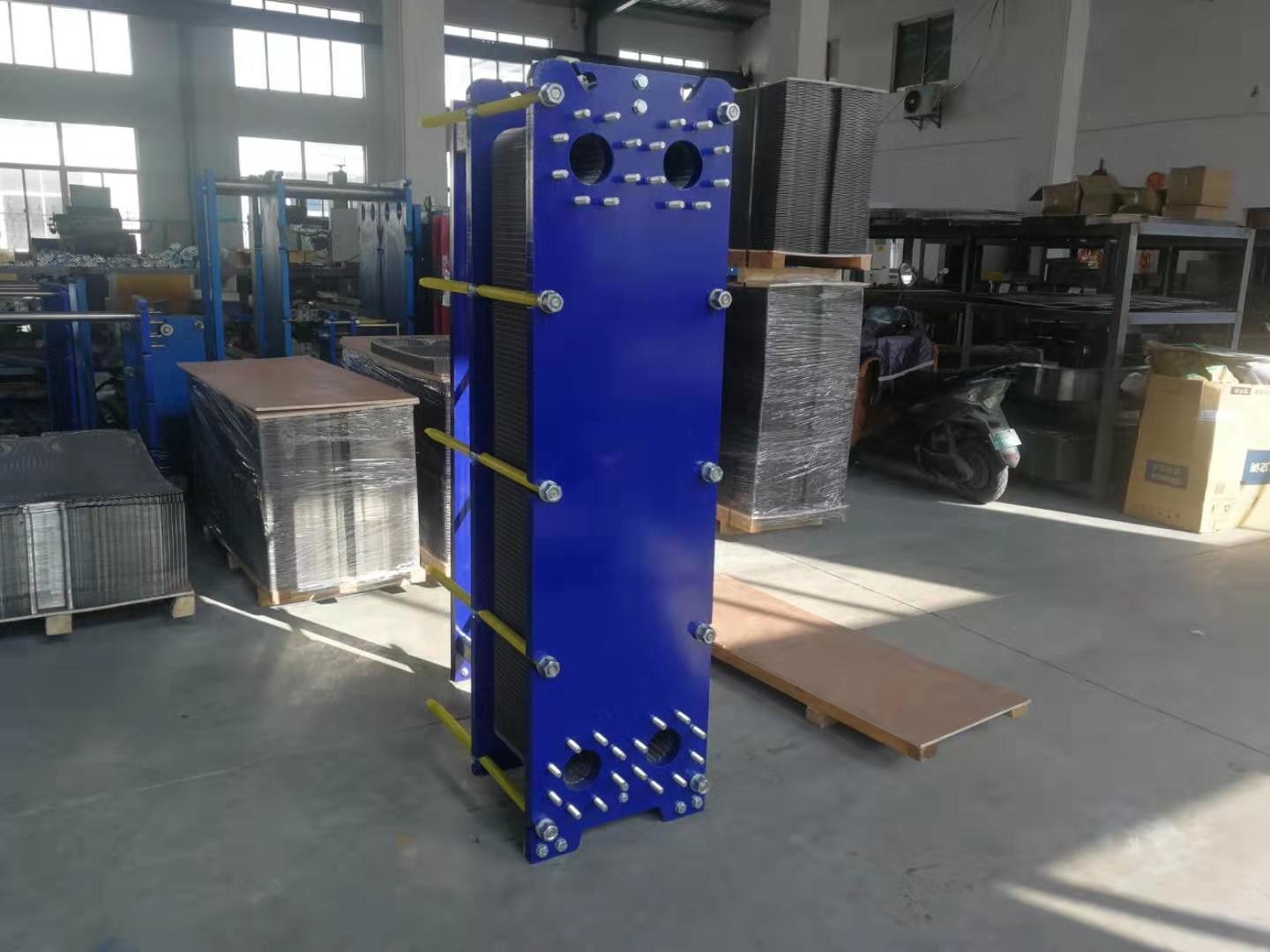

Hot water plate heat exchanger

Function of a Plate Heat Exchanger


A plate Heat Exchanger is a unit which transfers heat continuously from one media to another media without adding energy to the process. The basic concept of a plate and frame Heat Exchanger is two liquids flowing on either side of a thin corrugated metal plate so heat may be easily transferred between the two.
The plates are compressed by means of tie bolts between a stationary frame part (called the head) and a movable frame part (called the follower).
The plate Heat Exchanger efficiency requires less floor space compared to other types of Heat Transfer equipment and is lighter in weight.

Design of a Plate Heat Exchanger


The plate Heat Exchanger is designed with either single-pass or multi-pass flow, depending on the duty. For most duties single-pass is suitable and often the preferred solution as it keeps all connections on the stationary frame part and consequently makes disassembly easier. Multi-Pass however, is required when flow rates are low or when approach temperatures are close. Other factors such as building ceiling height or space limitations for handling of large plates often leads to the decision to use multi-pass and thereby more and smaller plates.

Advanges of Plate Heat Exchangers


Easy to Remove and Clean
Expandable
High Efficiency
Compact Size
Close Approach Temperature
Multiple Duties in a Single Unit
Less Fouling
Lower Costs



Features and benefits


Experience the benefit of an individually customized solution that perfectly matches your requirements and lowers your energy consumption.



High performance for a low pressure drop eliminates unnecessary burdens on your system and optimizes overall system performance.
The design results in a compact solution with a small footprint, simple installation, and easy access for maintenance.



Applications

  • HVAC industry - e.g. district cooling solutions using seawater and groundwater as cooling source - e.g. district heating solutions using, for example, solar and geothermal energy as heating source
  • Marine/offshore industry - e.g. central and lubrication oil cooling
  • Dairy/food/beverage industry - e.g. pasteurization, heat recoveries, and duties that require gentle treatment
  • Sugar industry
  • Biogas industry
  • Pulp and paper industry
  • Heavy industry
  • Mining industry
  • Petrochemical industry
  • Chemical industry - e.g. waste heat recovery from condenser water
Sealing material: adapt temperature Suitable for fluid
NBR -15~+120ºC Water, sea water, cooking oil, salt water
HNBR -15~+140ºC High temperature mineral oil, high temperature water
EPDM -25~+170ºC Hot water, water vapor, acid, alkali
Viton -5~+130ºC
Plate material Applicable fluids
Stainless steel(SU304.316 ect) Clean water, river water, edible oil, mineral oil
Stainless steel & Ti, Ti-Pd Sea water, salty water,salt compounds
20Cr, 18Ni,SMO Dilute sulfuric acid,Water solution of salt matter,
Inorganic solution
Nickel High temperature and high concentration of caustic soda
Hastelloy Concentrated sulfuric acid,Hydrochloric acid, Phosphoric acid,Acid, alkali, fluid

More details and materials, Please contact us directly.
