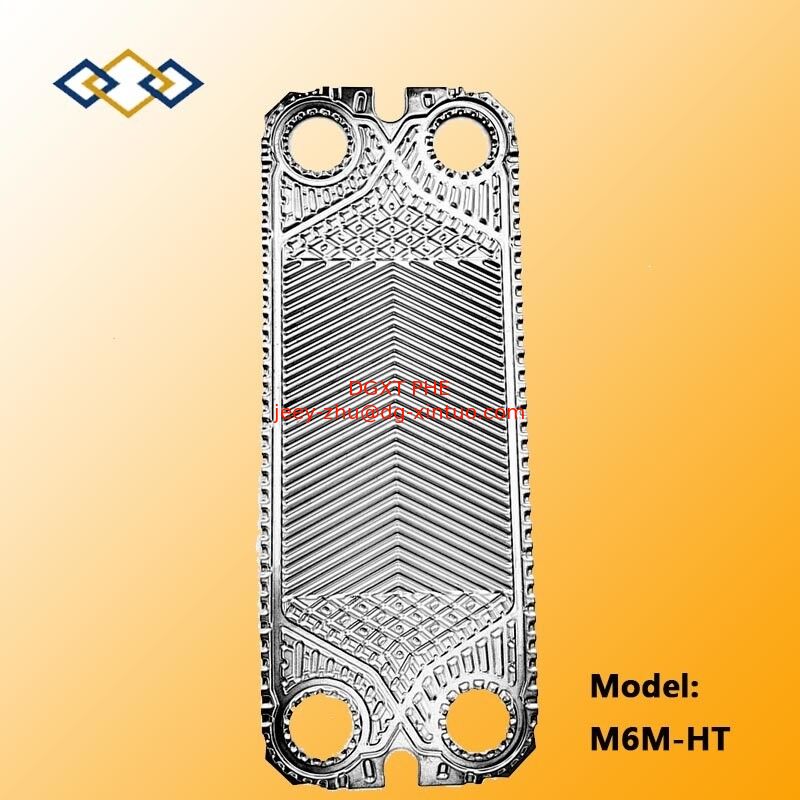

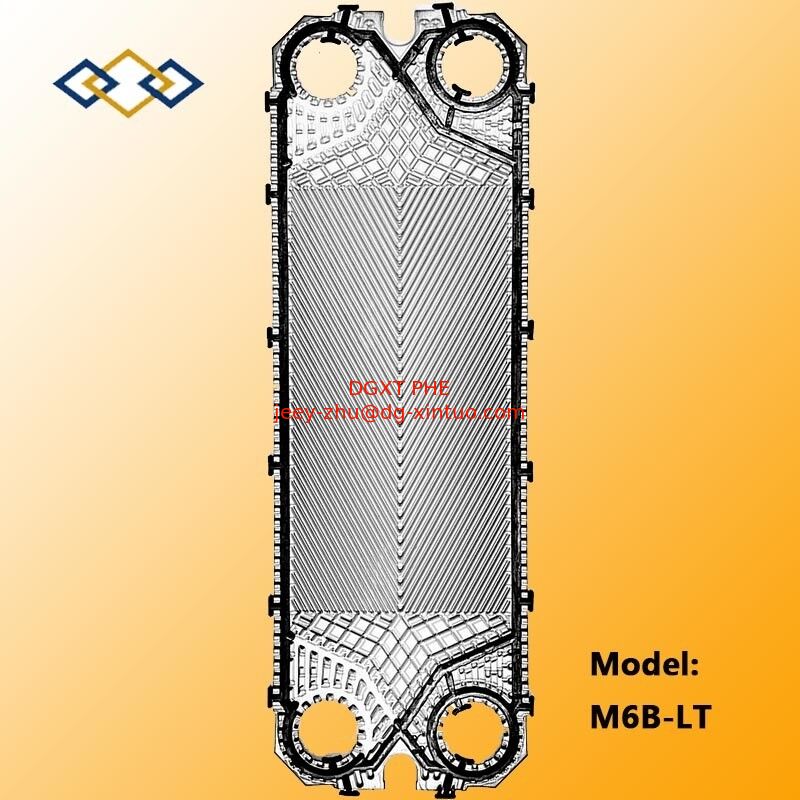

Supply Customized Flow Plate, End Plate, Heat Exchanger Plate

Basic Information
Place of Origin: China
Brand Name: DGXT
Certification: CE ISO9001 CO FE
Model Number: Customized
Minimum Order Quantity: 1
Price: 20USD
Packaging Details: wooden case
Delivery Time: 8-10 days
Payment Terms: L/C, T/T, Western Union, Paypal, Money Gram
Supply Ability: 10000 per month
Model NO.: Customized Specification: 749*249 MM
HS Code: 84195000 Port: Shanghai, China
Performance: Pressure Resistant, Temperature Resistant, Corrosion Resistant Material: Stainless Steel
Transport Package: Wooden Case

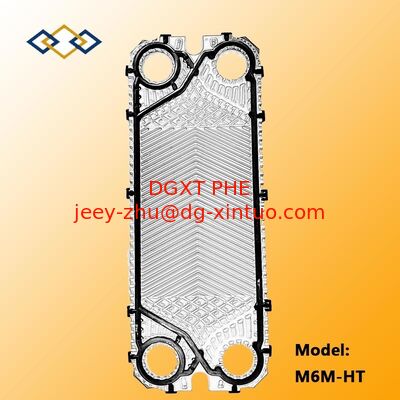

Customized flow plate,end plate,heat exchanger plate


We supply Customized flow plate,end plate,transition plate Customized welcome.

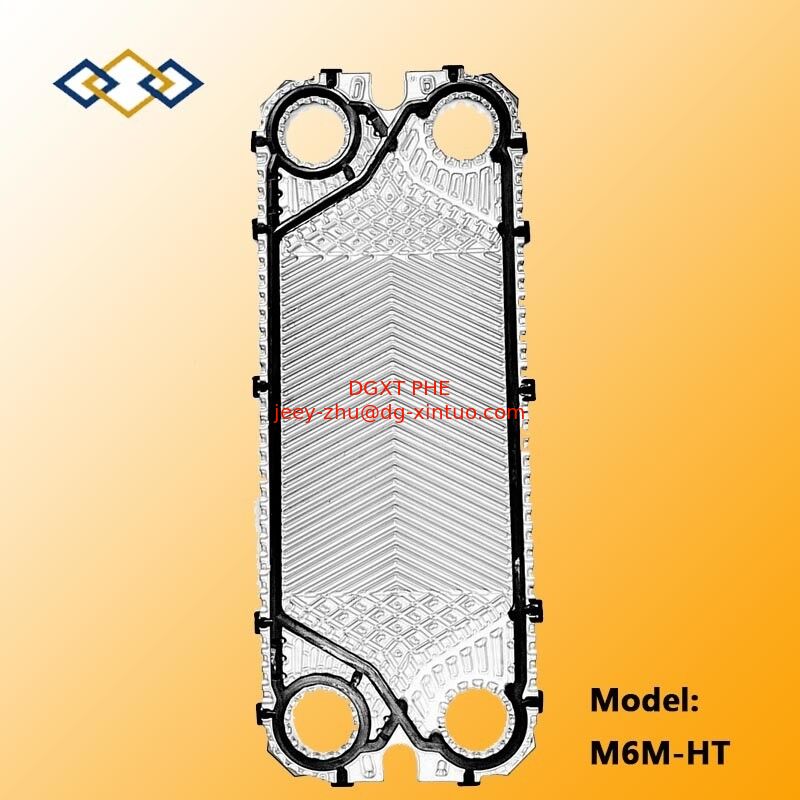

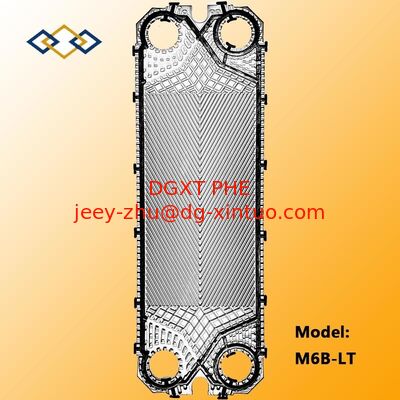

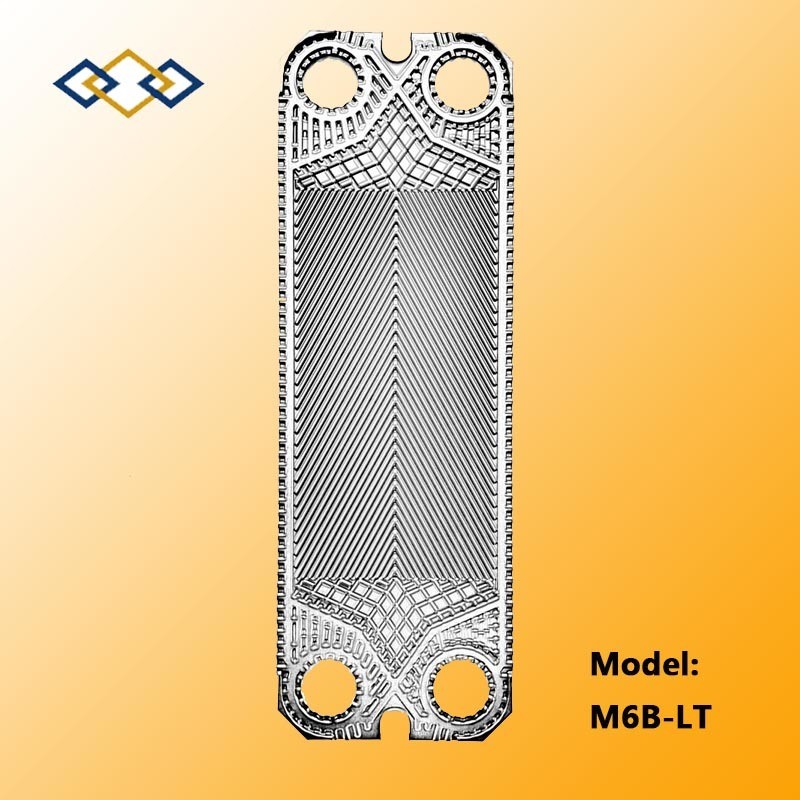

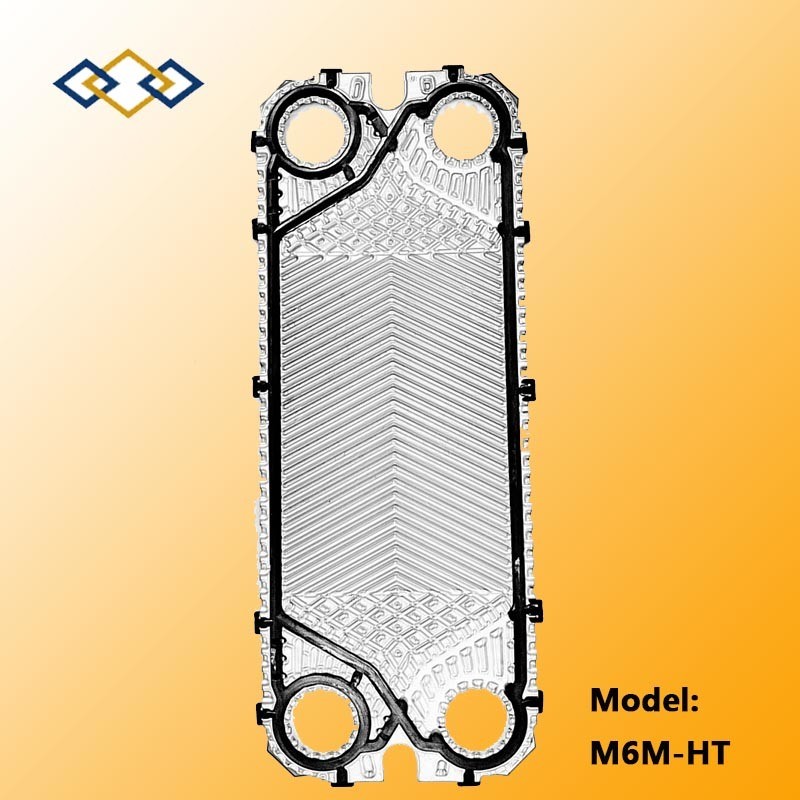

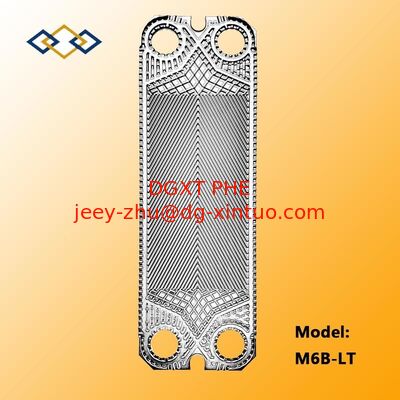

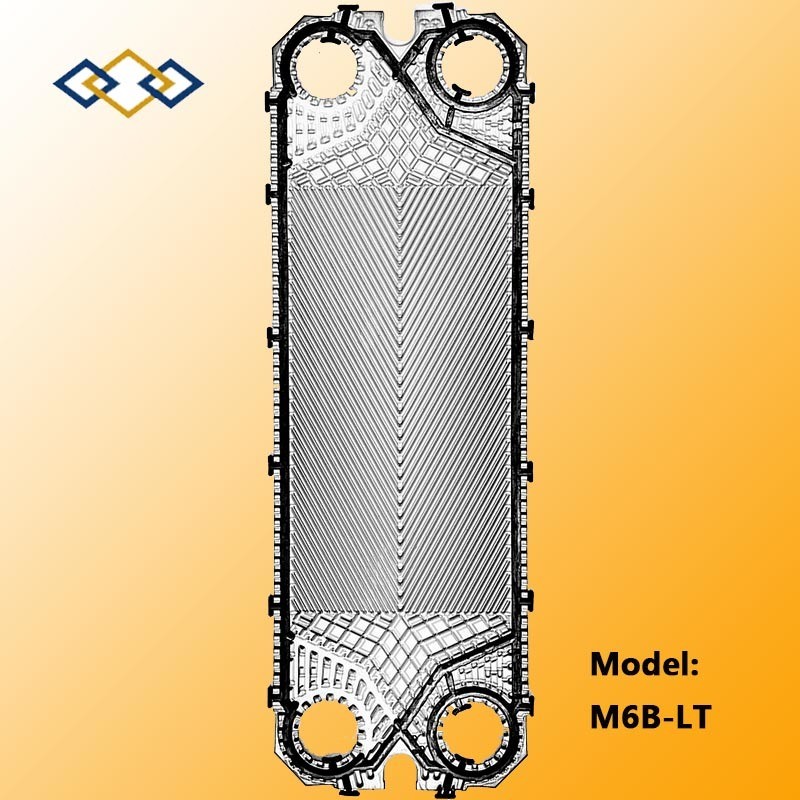

Supply M6/M6b/M6m/M6mx/M6m-R/M6m-L Flow Plate, End Plate, Heat Exchanger Plate


Type:
Heat Exchanger Plate. Type: Customized
uses: heat exchanger, heat transfer mode, wall-to-wall heat exchanger
The role of plate in plate heat exchanger industry, plate heat exchanger plate is a key component of plate heat exchanger, the plate of plate heat exchanger is a special plate used in plate heat exchanger to isolate medium and exchange heat. It is an important part of plate heat exchanger.

Materials : stainless steel SUS304.316, titanium and titanium palladium Ti, Ti-pd, 20Cr, 18Ni, 6Mo 254SMO, alloy C276, copper H68 and so on.

Heat Exchanger Plate brief introduction

1.How to choose Plate Material?

Plate Material

Suitable Media

Stainless Steel(304/316)

Pure Water, River Water, Edible Oil, Mineral Oil

Ti, Ti-Pd

Seawater, Brine, Salt Substance

20Cr,18Ni,6Mo(254MO)

Dilute Sulfuric Acid, Dilute Salt Substance Aqueous Solution, Inorganic Aqueous Solution

Ni

High Temperature, High Density Caustic Soda

Hastelloy(C276,D205,B2G)

Concentrated Sulfuric Acid, Hydrochloric Acid, Phosphoric Acid

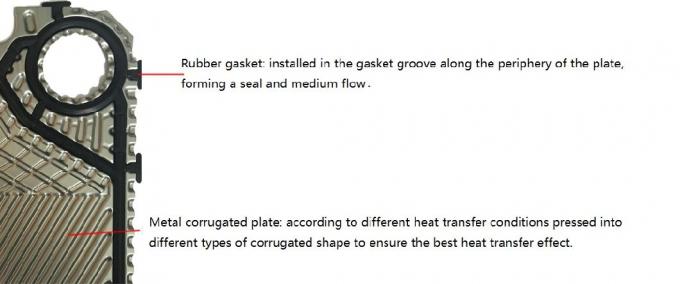

2.Each Plate contains two parts
Supply M6/M6b/M6m/M6mx/M6m-R/M6m-L Flow Plate, End Plate, Heat Exchanger Plate

3.Two functions of plate ripple
Supply M6/M6b/M6m/M6mx/M6m-R/M6m-L Flow Plate, End Plate, Heat Exchanger Plate

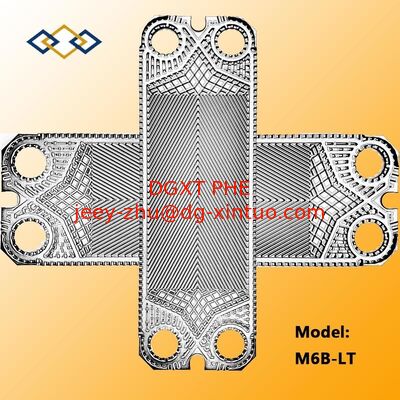

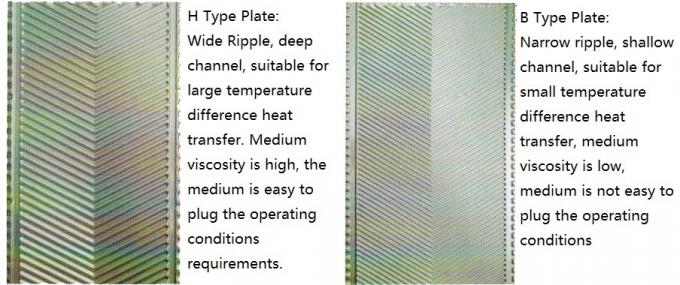

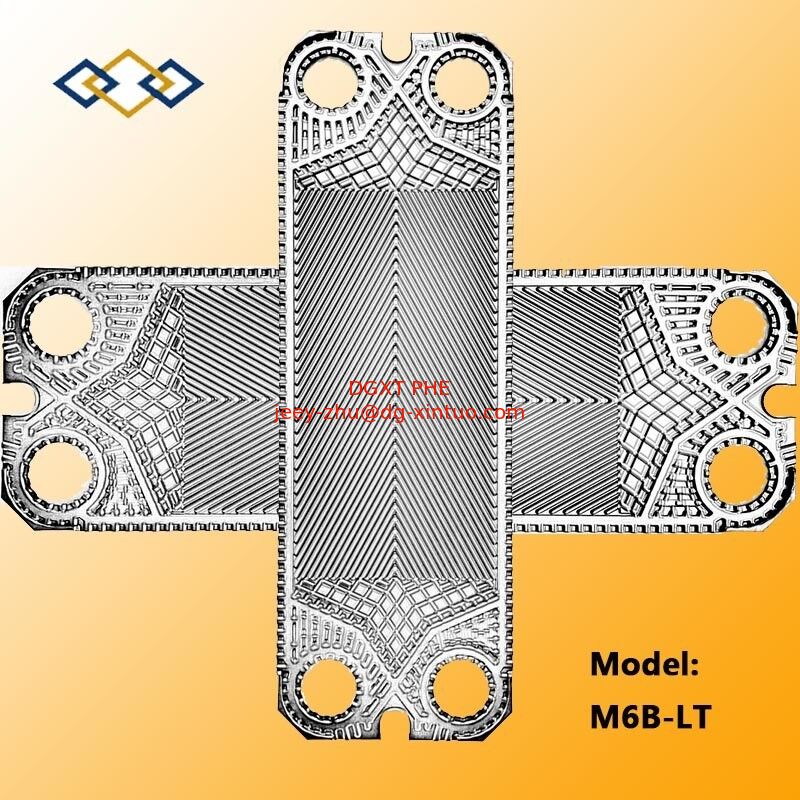

4.Two different types of plates
Supply M6/M6b/M6m/M6mx/M6m-R/M6m-L Flow Plate, End Plate, Heat Exchanger Plate

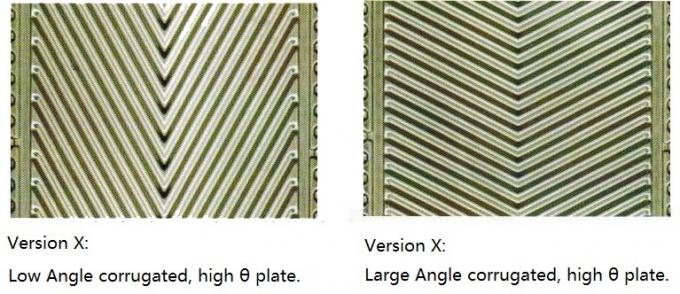

5.Each plate type has two types of plates with different corrugation angles
Supply M6/M6b/M6m/M6mx/M6m-R/M6m-L Flow Plate, End Plate, Heat Exchanger Plate

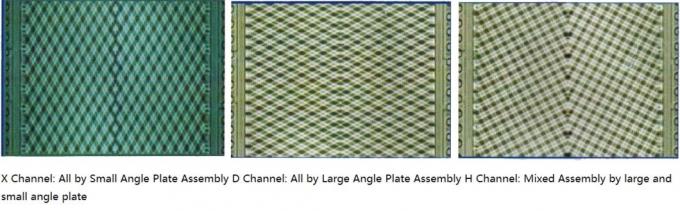

6.Two plates with different corrugation angles can be combined to form three different heat exchange channels:
Supply M6/M6b/M6m/M6mx/M6m-R/M6m-L Flow Plate, End Plate, Heat Exchanger Plate

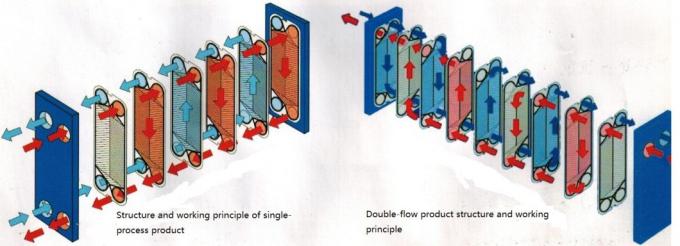

7.Each heat transfer channel can be assembled into a single-flow product structure and a double-flow product structure
Supply M6/M6b/M6m/M6mx/M6m-R/M6m-L Flow Plate, End Plate, Heat Exchanger Plate

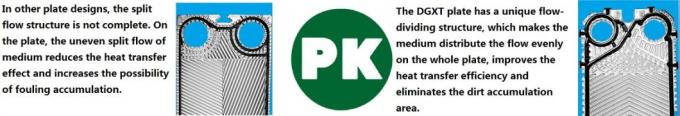

8.The advanced shunt structure design, lets the shunt more even
Supply M6/M6b/M6m/M6mx/M6m-R/M6m-L Flow Plate, End Plate, Heat Exchanger Plate

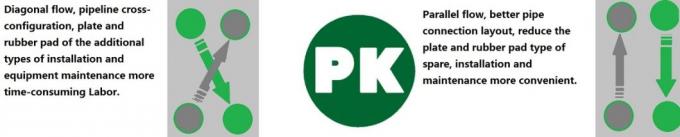

9.Parallel flow plate design, make maintenance more convenient
Supply M6/M6b/M6m/M6mx/M6m-R/M6m-L Flow Plate, End Plate, Heat Exchanger Plate

More plate type:


<
Sondex Heat Exchanger Plate Gasket
S4A S16B S22 S43A S81 S86 S65 Glue Type
S8A S9A S37 S43 S121 S110 S100 Glue Type
S7A S19A S41 S65 S188 S113G S130 Glue Type
S14A S31A S41A S100 S81 S201G SFD13
S20A S17 S42 S100 S121 SF123 SFD22
S7Glue S21 S63 S47 S188 SF160 SFD23
S20Glue S21A S43H S64 S62 S43 Glue Type SFD35

Funke Heat Exchanger Plate Gasket
FP04 FP16 FP31 FP60 FP112 FP205 FP41
FP08 FP22 FP40 FP80 FP405 FP82 FP130
FP05 FP14 FP50 FP42 FP70 FP10 FP100
FP09 FP20 FP71 FP62 FP100

APV Heat Exchanger Plate Gasket
T4 Q030E A085 M060 SR6AG B134 TR9GN
H12 Q055E A145 M092 R8GI B158 TR9GL
H12 Water Generator Q080E J060 M107 SR9 B205 K34
H17 Q030D J092 SR2 R10 P105 K55
N25 Q055D J107 SR3 R14 P190 K71
N35 Q080D J154 R5 B063 TR9AL TR9AV
N50 A055 J185 SR6GL B110 TR9AV

GEA Heat Exchanger Plate Gasket
VT04 VT405P NT50M NT250S VT20P VT80(M) NT100X
VT10 AT405 NT50X NT250M VT40 VT2508 NT150L
VT20 VT405 NT100T NT250L VT40(M) NT50T NT150S
VT205 VT80 NT100M NT350S NT350M FA184 N40

Vicarb Heat Exchanger Plate Gasket
V2 V13 V45 V110 V28 V100 V170
V4 V20 V60 V130 V8 V280


Tranter Heat Exchanger Plate Gasket
GC008 GX18 GX26 GX51 GX60 GX64 GX85
GL13 GC16 GX42 GC51 GX100 GX91 GX145
GX12 GC26 GC50 GC60 GX140 GX118 GX205

Schmidt Heat Exchanger Plate Gasket
Sigma09 Sigma27 Sigma48 Sigma35 shallow type Sigma55 Sigma96 Sigma136
Sigma13 Sigma36 Sigma49X(39X) Sigma25 Sigma56 Sigma66 Sigma156
Sigma26 Sigma37 Sigma25 shallow type Sigma35 Sigma76 Sigma106 Sigma90
G33

Hisaka Heat Exchanger Plate Gasket
CX70 UX20 UX90 LX00A LX526A RX715 LX30A
UX07 UX40 RX50 LX10A UX10A UX80

Thermowave Heat Exchanger Plate Gasket
TL50P TL90S TL400P TL250P TL500S TL650P TL850S
TL90P TL150S TL200S TL500P TL250SSW LT850P TL650S
TL150P TL200P TL400S TL250S TL500SSW


For More Plate Model please inquiry us!
