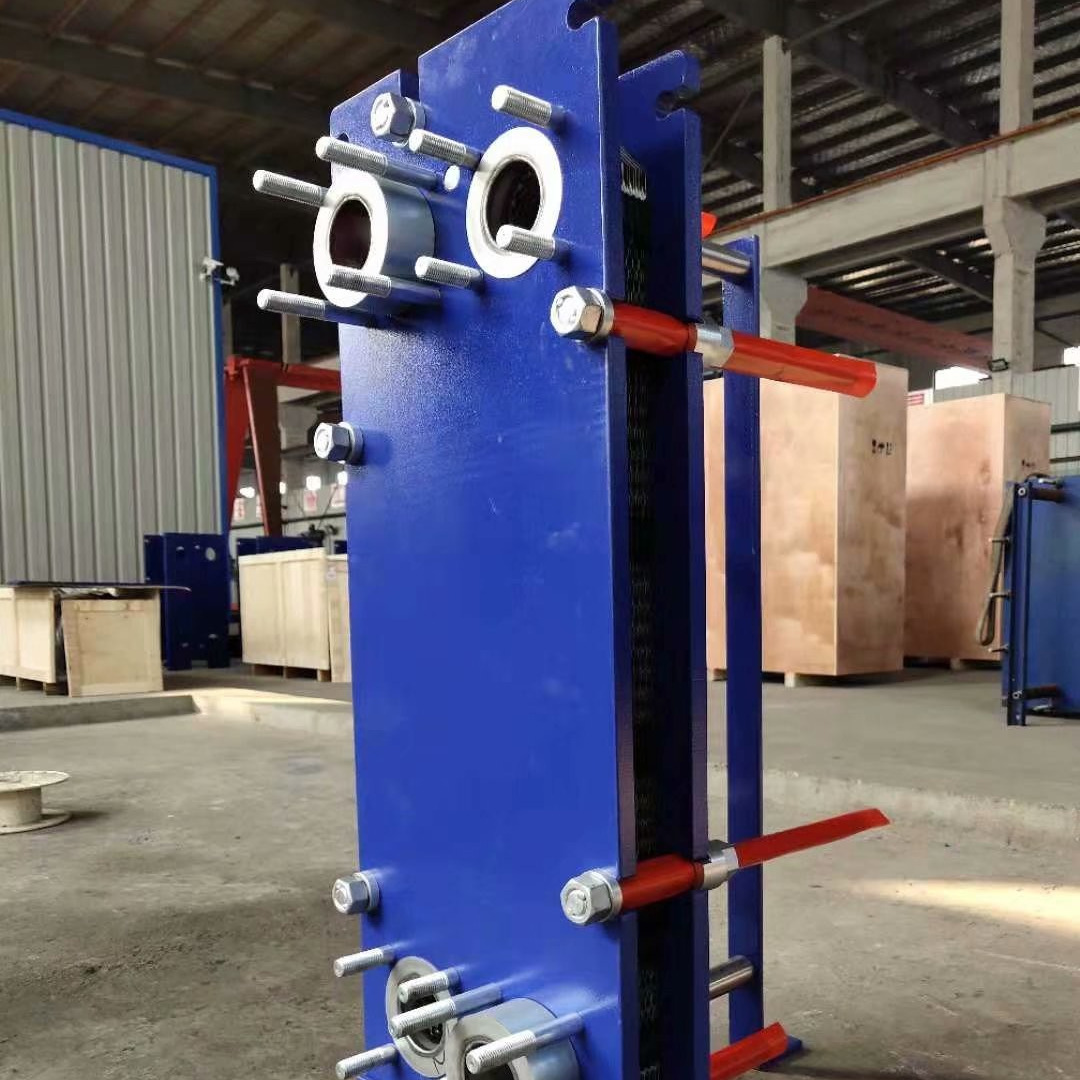

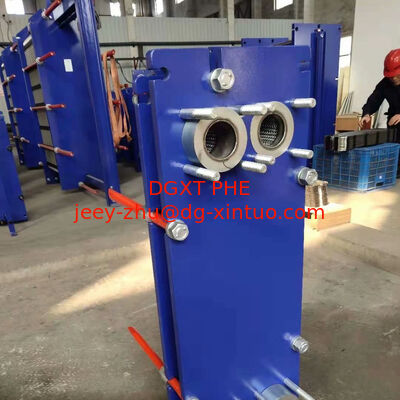

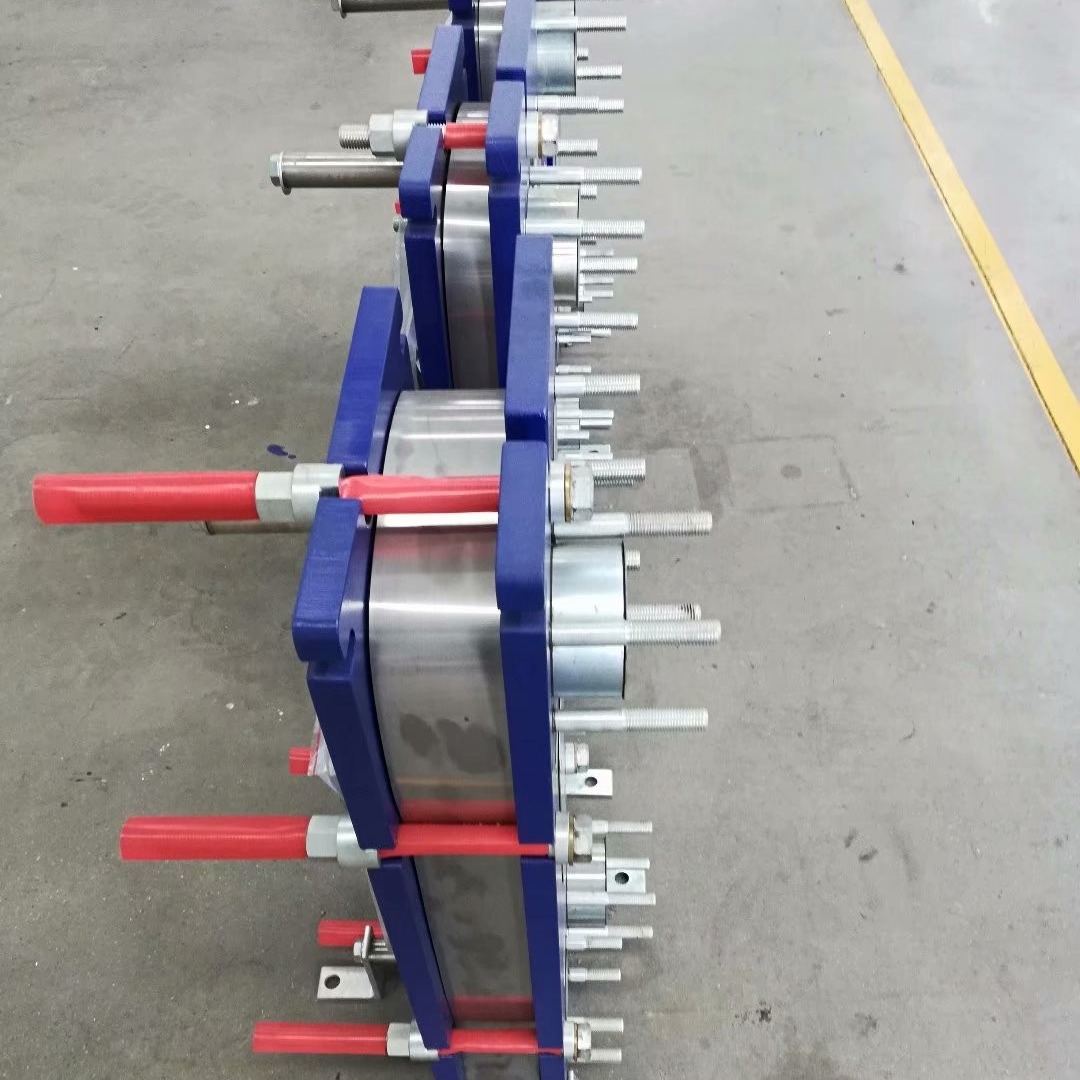

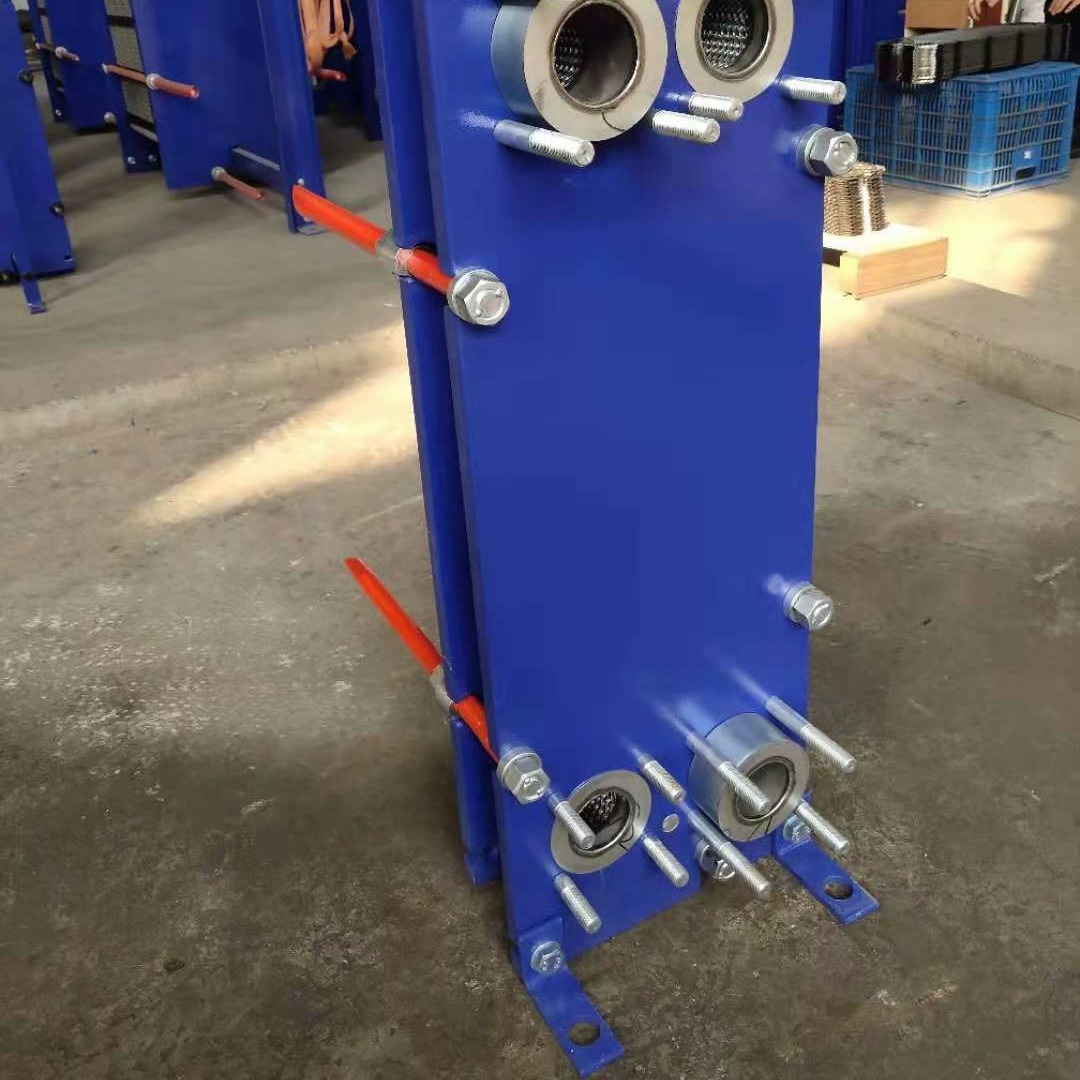

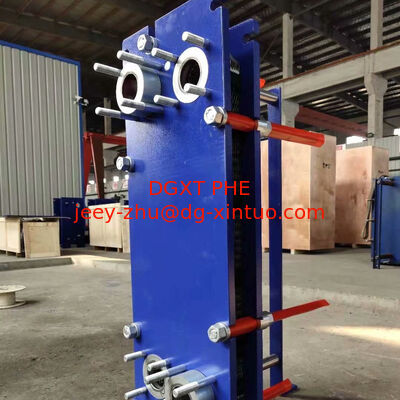

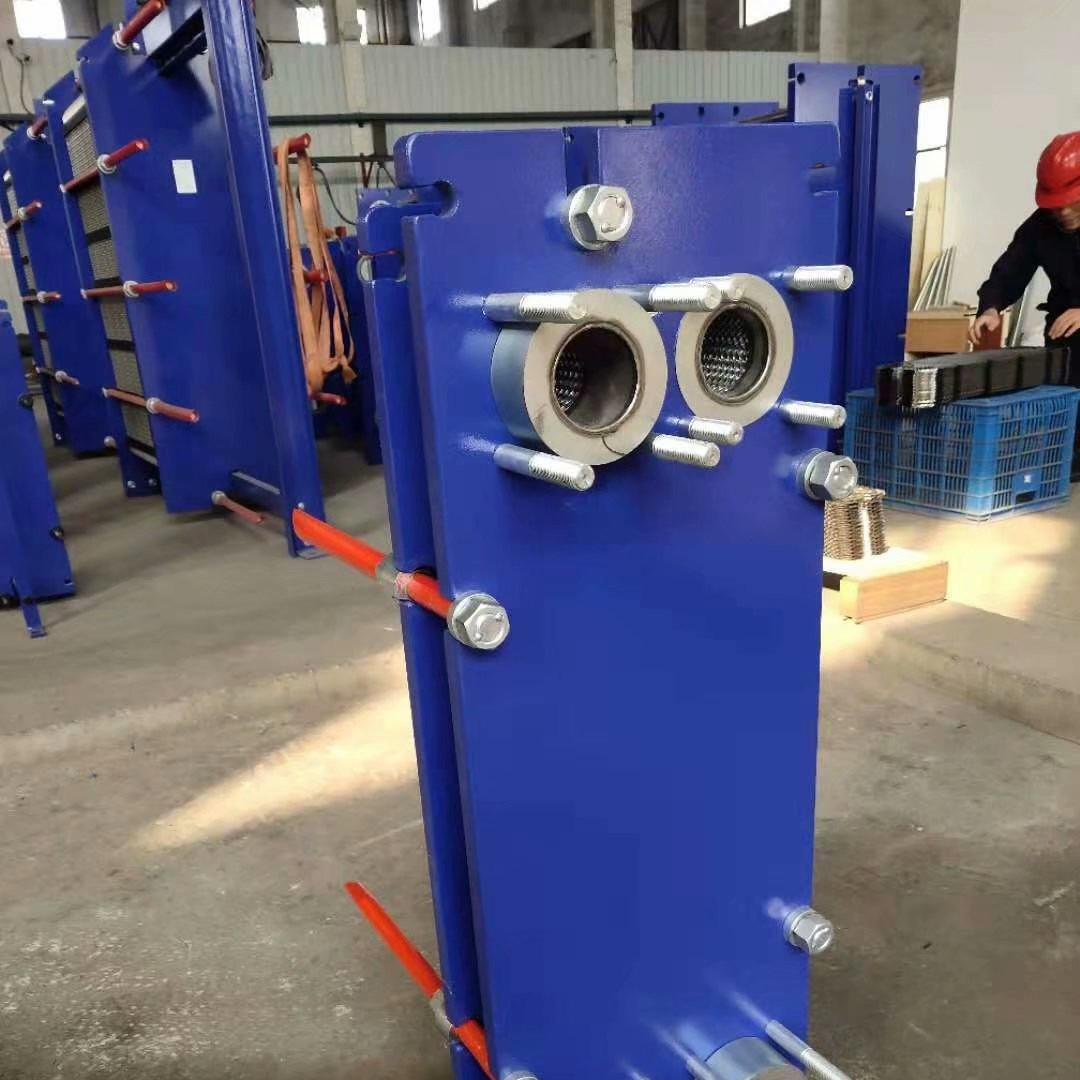

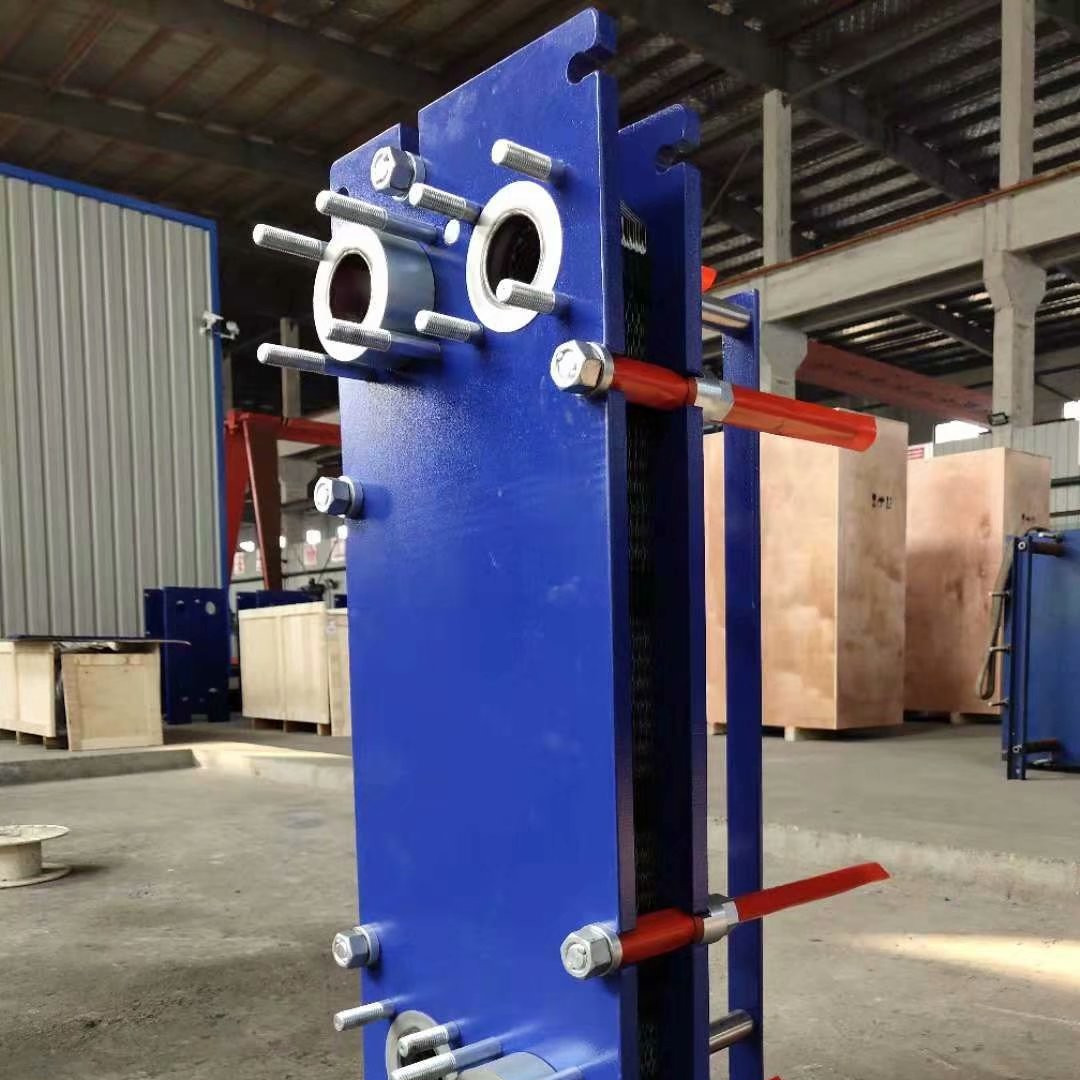

Waste water treatment, waste heat recovery,plate heat exchanger for heating and cooling

Basic Information
Place of Origin: China
Brand Name: DGXT
Certification: ISO ce
Model Number: Customized
Minimum Order Quantity: 1
Price: $1000/set
Packaging Details: wooden case
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 per month
Material: Titanium/SS316/904L/SS304/Ni Liquid: Water, Seawater,chemical Water
Gasket: Nitrile, NBR Frame: Carbon Steel
Model: Free To Selection

Water treatment equipment,plate heat exchanger for heating and cooling



Product Description
Every plate is equipped with gasket,restrict the flow of media within the plate group.
The gasket is designed as a double seal structure and has Signal hole.If the media leak,
It can early find and solve the question, don't lead to a mixture of two media.

Our Advantages
a. provide variety of material and type gaskets.
b. Best quality with avaiable price for our customers, stocked and delivery fast,try our best service for you.
c. large stock:We keep sizable inventory of gaskets & plates for regular makes and models.
d. technical service: technical consultation, equipment update, capacity expansion scheme,
maintenance and cleaning of the equipment.
e. ISO9001 & ISO14001,CE
f. strict quality control systems: thickness/length/width measuring for gasket.

Providing Plate and Gasket for Full Makes



Plate type selection

The plate type or corrugated type shall be determined according to the actual needs of heat exchange occasions. For the case of large flow and small allowable pressure drop, the plate type with small resistance shall be selected, on the contrary, the plate type with large resistance shall be selected. According to the fluid pressure and temperature, decide whether to choose the detachable type or the brazed type. When determining the plate type, the plate with too small single plate area should not be selected to avoid excessive number of plates, small flow rate between plates and low heat transfer coefficient. This problem should be paid more attention to for larger heat exchangers.

Selection of process and runner

Flow refers to a group of parallel flow channels in the same flow direction of a medium in the plate heat exchanger, and the flow channel refers to the medium flow channel composed of two adjacent plates in the plate heat exchanger. Generally, several flow channels are connected in parallel or series to form different combinations of cold and hot medium channels.
The process combination form shall be determined according to the calculation of heat exchange and fluid resistance and meeting the requirements of process conditions. Try to make the convection heat transfer coefficient in the cold and hot water channels equal or close to each other, so as to obtain the best heat transfer effect. Because when the convective heat transfer coefficient on both sides of the heat transfer surface is equal or close, the heat transfer coefficient obtains a larger value. Although the flow velocity between the plates of the plate heat exchanger is different, the average flow velocity is still used in the calculation of heat exchange and fluid resistance. Because the connecting pipes of "U" single process are fixed on the compression plate, it is convenient to disassemble and assemble.

Pressure drop check

In the design and selection of plate heat exchanger, there are certain requirements for pressure drop, so it should be checked. If the check pressure drop exceeds the allowable pressure drop, the design and type selection calculation shall be carried out again until the process requirements are met.

Computing method

The calculation of heat transfer coefficient and pressure drop is obtained from the performance curve of products of various manufacturers. The performance curve (criterion correlation) generally comes from the performance test of the product. For the plate type lacking performance test, the criterion correlation of the plate type can also be obtained according to the characteristic geometric size of the plate type through the reference size method, which is adopted by some general software in the world.

Selection software

As for the selection software of plate heat exchanger, the manufacturer has its own selection software according to its own plate type.
gasket material NBR:(applicable temperature -15-+120ºC)
HNBR: (applicable temperature -15-+140ºC)
EPDM: (applicable temperature -25-+150ºC)
HEPDM: (applicable temperature -25-+170ºC)
Viton/FPM: (applicable temperature -5-+180ºC)
NEOPREKE: (applicable temperature -5-+130ºC)
VNQ: (applicable temperature -65-+250ºC)


Company Introduction

We can provide high quality products and services with more favorable prices through integrating extensive domestic manufacture and distribution recourses. High quality has always been our first mission. To achieve this, we build a state-of-the-art product line, which can meet every customer's particular requirements. DGXT is always welcoming your cooperation.

We can also supply sealing gaskets and plates adaptable for PHE of various brands and types. The spare parts we provide are widely used in the heating, cooling and heat recovery process in many industrial fields.
We have ablity to supply complete specifications of plates and gaskets for the customers ,Worldwide brands, both high quality products and professional, careful and all-embracing services.
Our team are always glad to help to solove your problems at any time.To let our clients can get best service,we created technical service team such as technical consultation, equipment update, capacity expansion scheme, maintenance and cleaning of the equipment.we consider problems, standing at our customers side.



Waste water treatment, waste heat recovery,plate heat exchanger for heating and cooling 0Waste water treatment, waste heat recovery,plate heat exchanger for heating and cooling 1Waste water treatment, waste heat recovery,plate heat exchanger for heating and cooling 2Waste water treatment, waste heat recovery,plate heat exchanger for heating and cooling 3Waste water treatment, waste heat recovery,plate heat exchanger for heating and cooling 4Waste water treatment, waste heat recovery,plate heat exchanger for heating and cooling 5Waste water treatment, waste heat recovery,plate heat exchanger for heating and cooling 6Waste water treatment, waste heat recovery,plate heat exchanger for heating and cooling 7Waste water treatment, waste heat recovery,plate heat exchanger for heating and cooling 8Waste water treatment, waste heat recovery,plate heat exchanger for heating and cooling 9
